Hoppe HLS9000 Manual Locking Bottom Gear – 35mm Backset, 4 Roller

SKU: 8778883

$157.30 - $157.30

$157.30

$157.30 - $157.30

$157.30

Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Deadbolt Throw: 0.55" (14mm)
Roller Configuration: 4 rollers total (2 on bottom gear)
1st Roller Position: 15.75" (400mm) from handle center when locked
2nd Roller Position: 29.53" (750mm) from handle center when locked
Maximum Cutoff: 2.36" (60mm)
Number of Screws: 5
Manual locking operation
Can be rehanded for left or right door applications

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

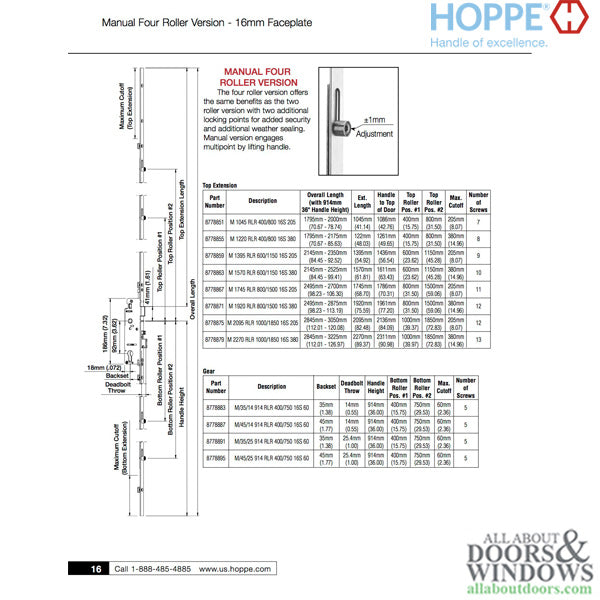

Hoppe HLS9000 Bottom Gear – 35mm Backset, 4 Roller (8778883)

This Hoppe HLS9000 Manual Locking Bottom Gear is designed for multipoint lock systems and features a four-roller configuration for secure door engagement. The bottom gear portion contains 2 of the 4 rollers, providing reliable locking points along the lower section of your door.

With a 1-3/8 inch (35mm) backset and 5/8 inch (16mm) faceplate width, this component integrates with Hoppe multipoint lock systems. The handle height measures 36 inches (914mm), and the deadbolt throw is 0.55 inches (14mm).

Technical Information

Lock System: Hoppe HLS9000

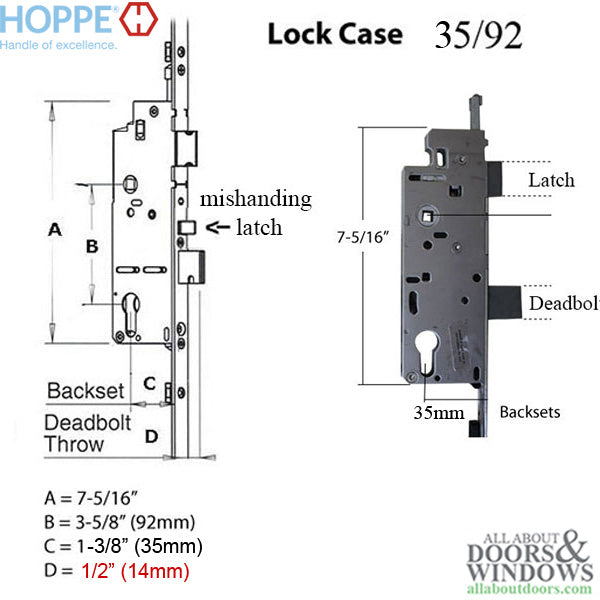

Backset: 1-3/8 inches (35mm)
Faceplate Width: 5/8 inches (16mm)
Handle Height: 36 inches (914mm)
Deadbolt Throw: 0.55 inches (14mm)

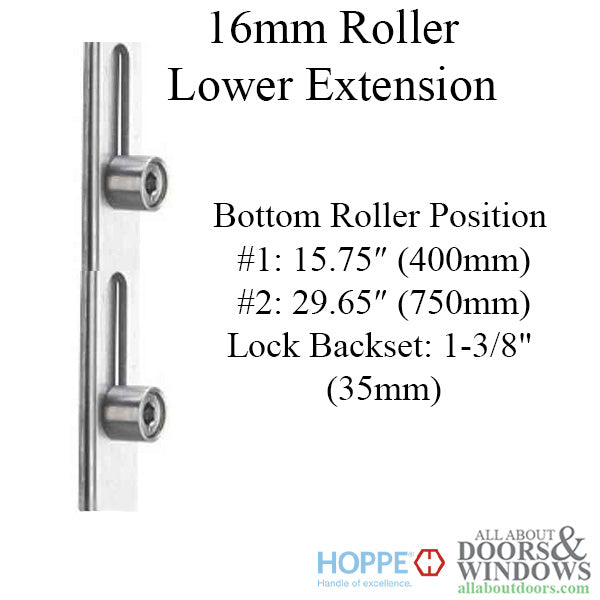

1st Roller Position: 15.75 inches (400mm) from handle center in locked position
2nd Roller Position: 29.53 inches (750mm) from handle center in locked position
Maximum Cutoff: 2.36 inches (60mm)
Number of Screws: 5
Roller Count: 4 total (2 on bottom gear)

Notes

Manual locking operation
Handing can be reversed for left or right door applications

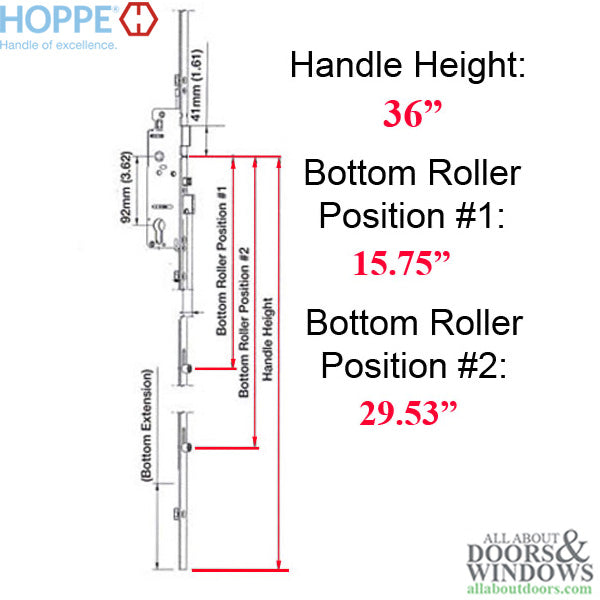

Roller positions are measured from handle center to center of roller when in the down (locked) position

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this bottom gear be rehanded for different door swings?

Yes, Hoppe multipoint locks including this bottom gear can be rehanded to accommodate left or right door applications.

What do the roller positions mean?

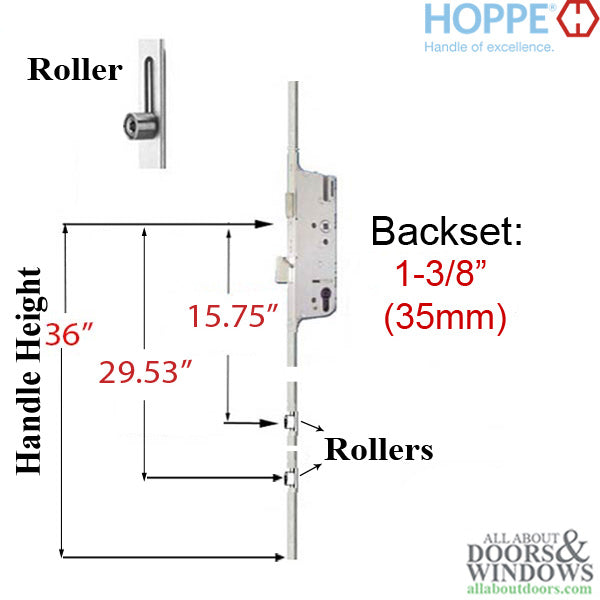

The roller positions (15.75 inches and 29.53 inches) indicate the distance from the handle center to each roller's center when the lock is in the down (locked) position.

What is the maximum cutoff for this bottom gear?

The maximum cutoff is 2.36 inches (60mm), which indicates how much can be trimmed from the gear if needed for your door application.
