Hoppe Top Extension for Manual Four Roller Multipoint Lock – 16mm Faceplate, Stainless Steel

SKU: 8778867

$161.44 - $161.44

$161.44

$161.44 - $161.44

$161.44

Faceplate Width: 5/8" (16mm)
Finish: Stainless Steel
Extension Length: 68.70" (1745mm)
Overall Length: 98.23"-106.30" (2495mm-2700mm) with 36" handle height
Handle to Top of Door: 70.31" (1786mm)
Top Roller #1 Position: 31.50" (800mm)
Top Roller #2 Position: 59.06" (1500mm)
Max Cut Off: 8.07" (205mm)
Number of Screws: 11
Manual four roller version

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

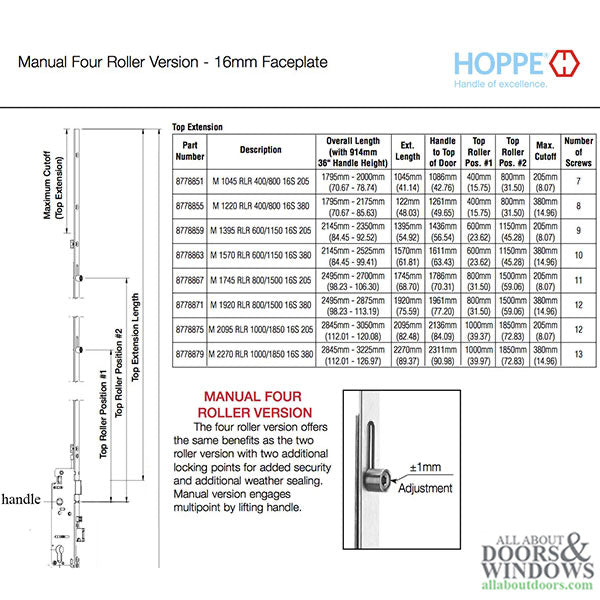

Hoppe Top Extension – 16mm Faceplate, Four Roller (8778867)

This Hoppe top extension is designed for manual four roller multipoint lock systems. It features a 5/8 inch (16mm) stainless steel faceplate and provides reliable upper door security for taller door applications.

The extension measures 68.70 inches in overall length and is designed for use with a 36 inch handle height configuration, resulting in an overall length range of 98.23 to 106.30 inches from handle to the top of the extension. The handle to top of door measurement is 70.31 inches.

Technical Information

Faceplate Width: 5/8 inch (16mm)
Finish: Stainless Steel
Extension Length: 68.70 inches (1745mm)
Overall Length with 36 inch Handle Height: 98.23-106.30 inches (2495-2700mm)
Handle to Top of Door: 70.31 inches (1786mm)

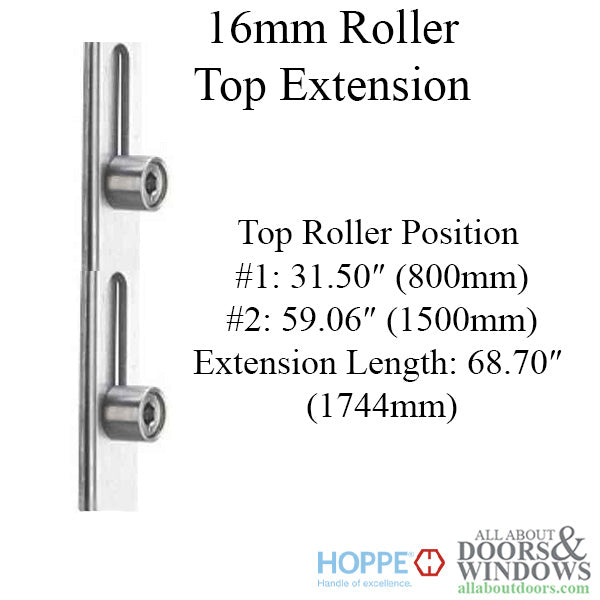

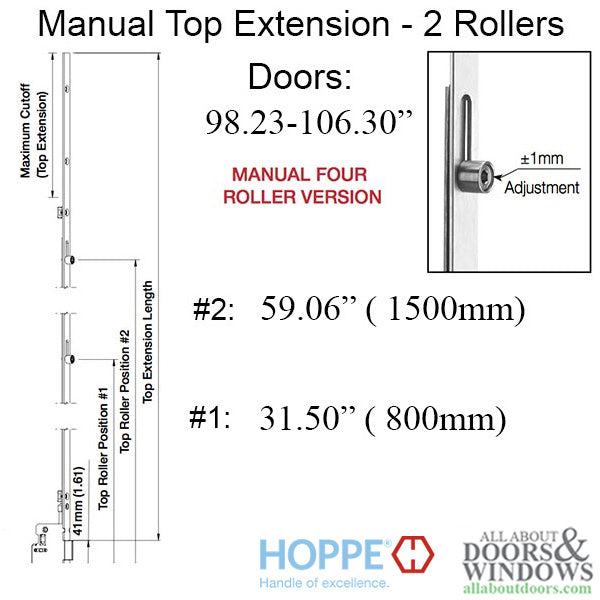

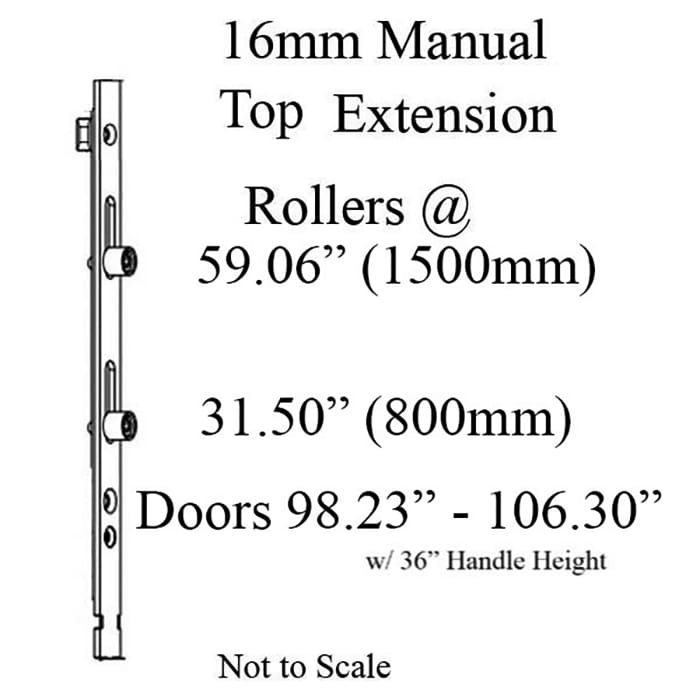

Top Roller #1 Position: 31.50 inches (800mm)
Top Roller #2 Position: 59.06 inches (1500mm)
Max Cut Off: 8.07 inches (205mm)
Number of Screws: 11

Notes

Manual four roller version
For help with terminology, see the Multipoint Lock Glossary of Terms

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I connect this top extension to my Hoppe lock box?

Hoppe provides instructional videos on connecting top extensions to the lock box. Ensure proper alignment of the roller positions before securing with the 11 included screw holes.

Can I cut this extension to fit my door?

Yes, this extension has a maximum cut off allowance of 8.07 inches (205mm) to accommodate different door heights.

What handle height is this extension designed for?

This extension is designed for use with a 36 inch handle height configuration, with an overall length range of 98.23 to 106.30 inches.
