Hoppe HLS9000 Manual Multipoint Lock Gear – 35mm Backset, 92mm PZ, Roller-Shootbolt

Hoppe HLS9000 Manual Multipoint Lock Gear – 35mm Backset, 92mm PZ, Roller-Shootbolt

SKU: 8778843

$181.22 - $181.22
$181.22
$181.22 - $181.22
$181.22

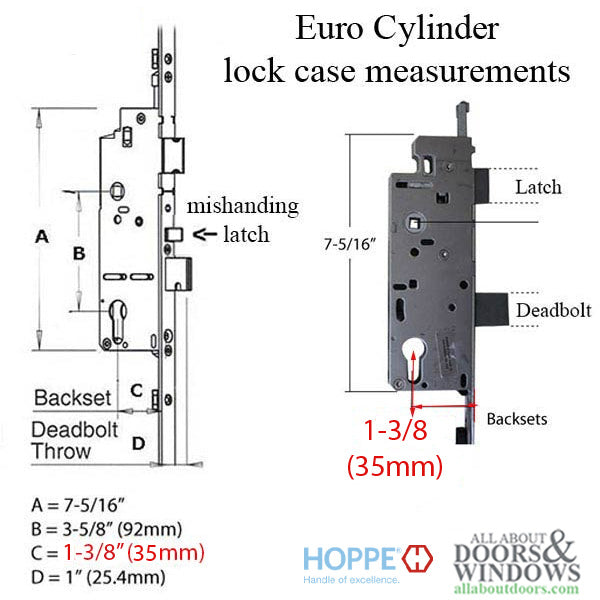

  • PZ: 92mm
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Handle Height: 36" (914mm)
  • Bottom Roller Position: 24.41" (620mm)
  • Number of Screws: 6
  • Manual roller-shootbolt version
  • Bottom gear assembly only
  • HLS9000 series
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Manual Gear – 35/92, Roller-Shootbolt (8778843)

This Hoppe HLS9000 manual roller-shootbolt multipoint lock gear is the bottom gear assembly for multipoint door systems. It features a 16mm (5/8 inch) faceplate width and is designed for doors requiring a 35mm backset with 92mm PZ spacing.

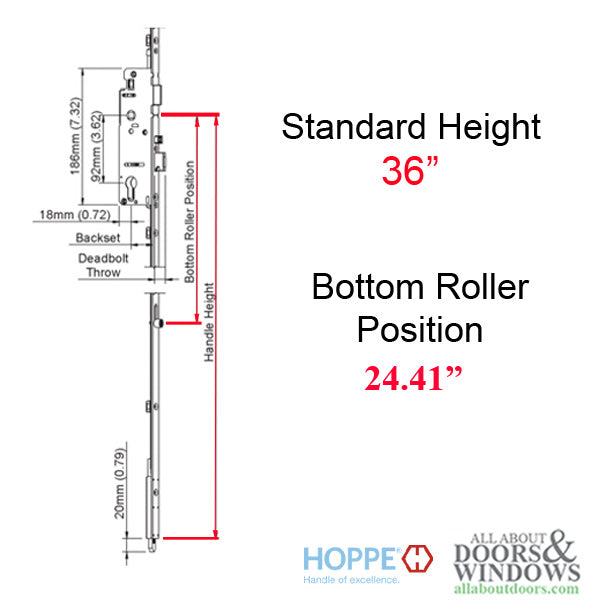

The gear includes a 1 inch deadbolt throw and positions the bottom roller at 24.41 inches (620mm) from the handle center. The handle height measures 36 inches (914mm). This is a manual operation version, meaning it does not have automatic engagement features.

Technical Information

  • PZ: 92mm
  • Backset: 35mm (1-3/8 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Deadbolt Throw: 25.4mm (1 inch)
  • Handle Height: 914mm (36 inches)
  • Bottom Roller Position: 620mm (24.41 inches)
  • Number of Screws: 6
  • Operation Type: Manual
  • Lock Type: Roller-Shootbolt
  • Series: HLS9000

Notes

  • Bottom gear assembly only – top extension sold separately
  • Handing can be reversed – see related articles for instructions

Related Parts

  • 8778843 - 16mm Manual Gear, 35/92, Roller-Shootbolt, Roller @ 24.41", 1" D/B (this product)
  • 8778839 - 16mm Manual Gear, 45/92, Roller-Shootbolt, Roller @ 24.41", 1/2" D/B
  • 8778835 - 16mm Manual Gear, 35/92, Roller-Shootbolt, Roller @ 24.41", 1/2" D/B
  • 8778847 - 16mm Manual Gear, 45/92, Roller-Shootbolt, Roller @ 24.41", 1" D/B

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I reverse the handing on this Hoppe multipoint lock?

Yes, Hoppe multipoint locks can be rehanded. Refer to the Hoppe instructions or contact us for guidance on changing or reversing the handing.

Is this the complete multipoint lock system?

No, this is the bottom gear assembly only. You will need to purchase a compatible top extension separately to complete the multipoint lock system.

What is the difference between this and part 8778835?

Both have the same 35mm backset and 92mm PZ, but this part (8778843) has a 1 inch deadbolt throw while 8778835 has a 1/2 inch deadbolt throw.
