Hoppe Multipoint Lock Bottom Assembly – 45mm Backset, 36" Handle Height, 16mm Faceplate

Hoppe Multipoint Lock Bottom Assembly – 45mm Backset, 36" Handle Height, 16mm Faceplate

SKU: 8778755

$275.37 - $275.37
$275.37
$275.37 - $275.37
$275.37

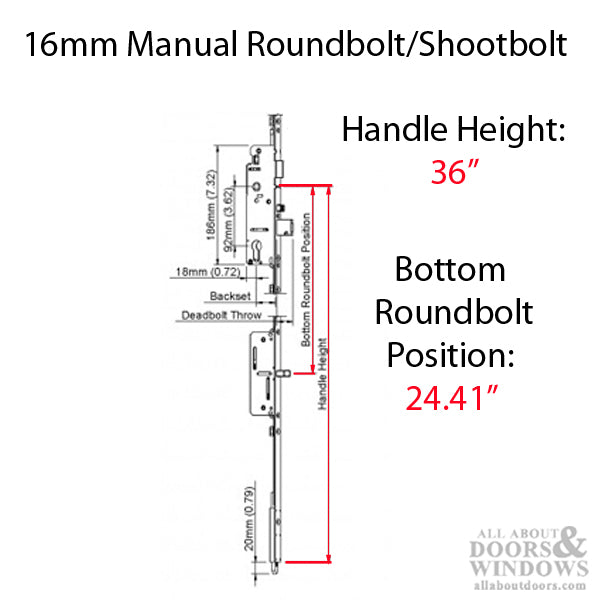

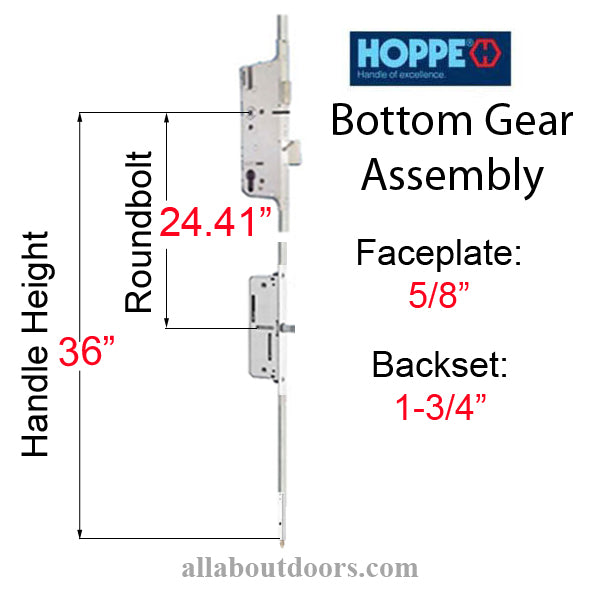

  • Backset: 1-3/4" (45mm)
  • Handle Height: 36" (914mm)
  • Bottom Roundbolt Position: 24.41" (620mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Number of Screws: 5
  • Manual gear operation
  • Spring loaded latch and mis-handing device can be reversed by pulling out and turning
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Multipoint Lock Bottom Assembly – 45/16mm (8778755)

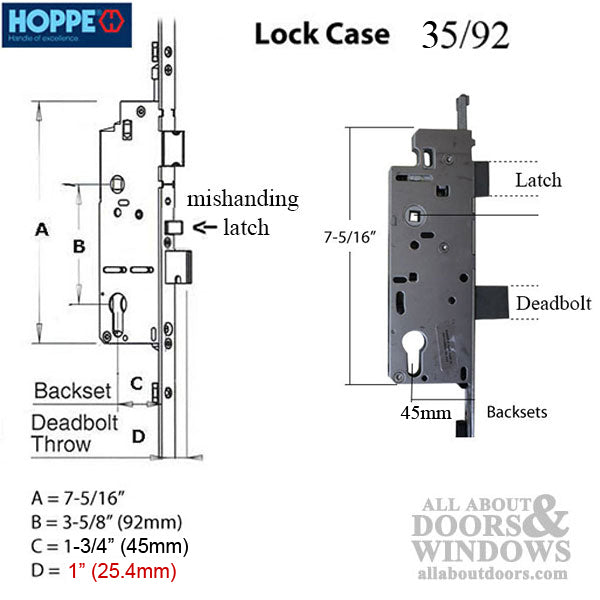

This Hoppe multipoint lock bottom assembly features a 16mm manual gear design for reliable door security. The unit includes a spring-loaded latch and mis-handing device that can be easily reversed by pulling out and turning, allowing for flexible installation on either left or right-hand doors.

Technical Information

  • Backset: 1-3/4 inches (45mm) from edge of door to center of handle
  • Handle Height: 36 inches (914mm)
  • Bottom Roundbolt Position: 24.41 inches (620mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Number of Screws: 5
  • Gear Type: Manual

Notes

  • Spring loaded latch and mis-handing device can be reversed by pulling out and turning for left or right-hand door applications.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on both left and right-hand doors?

Yes, the spring-loaded latch and mis-handing device can be reversed by pulling out and turning, allowing installation on either left or right-hand doors.

How do I measure the backset on my door?

Measure from the edge of the door to the center of the handle bore hole. This lock requires a 1-3/4 inch (45mm) backset.

What is the handle height measurement?

The handle height is 36 inches (914mm), measured from the bottom of the lock to the center of the handle position.
