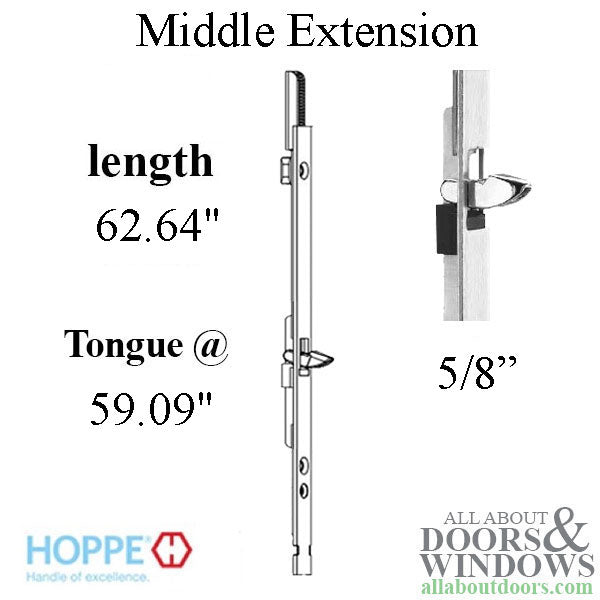

Hoppe HLS9000 Middle Extension with Tongue and Shootbolt – 16mm Faceplate, 62-5/8" Length

Hoppe HLS9000 Middle Extension with Tongue and Shootbolt – 16mm Faceplate, 62-5/8" Length

SKU: 8778711

$111.07 - $111.07
$111.07
$111.07 - $111.07
$111.07
  • Application: Middle section for 5-point shootbolt/tongue multipoint lock
  • Faceplate Width: 5/8" (16mm)
  • Extension Length: 62-5/8" (1591mm)
  • Top Tongue Position from Handle: 59" (1500mm)
  • Door Height Range: 112-1/16" to 130-3/4" (2846mm to 3321mm)
  • Number of Screws: 9
  • Non-adjustable length, no cutoff available
  • Used with top shootbolt extension to achieve desired door height
  • For manual version HLS9000 multipoint locks
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Middle Extension – 16mm Faceplate (8778711)

This Hoppe HLS9000 active middle extension is designed for manual version multipoint locks featuring tongue and shootbolt functionality. It serves as the middle section component in a 5-point locking system, providing secure engagement points along the door frame.

The extension measures 62-5/8 inches (1591mm) in length with a 5/8-inch (16mm) faceplate width. The top tongue is positioned 59 inches (1500mm) from the handle center. This is a non-adjustable length extension with no cutoff capability.

This middle extension is typically used for doors ranging from 112-1/16 inches to 130-3/4 inches in height. It must be used in combination with a top shootbolt extension to achieve the desired overall door height coverage.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Extension Length: 62-5/8 inches (1591mm)
  • Top Tongue Position from Handle: 59 inches (1500mm)
  • Number of Screws: 9
  • Adjustability: Non-adjustable, no cutoff

Notes

  • Compatible with manual version HLS9000 multipoint locks
  • Recommended door height range: 112-1/16 inches to 130-3/4 inches
  • Requires top shootbolt extension for complete installation

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door heights is this middle extension designed for?

This middle extension is typically used for doors ranging from 112-1/16 inches to 130-3/4 inches tall when combined with the appropriate top shootbolt extension.

Can this extension be cut to a shorter length?

No, this is a non-adjustable length extension with no cutoff capability. You must select the correct extension size for your door height.

Do I need additional components to use this extension?

Yes, this middle extension must be used in combination with a top shootbolt extension to achieve the desired door height coverage for your 5-point multipoint lock system.
