Hoppe HLS9000 Middle Extension with Tongue and Shootbolt – 16mm Faceplate, 44-59/64" Length

SKU: 8778707

$70.88 - $70.88

$70.88

$70.88 - $70.88

$70.88

Application: Middle section for 5-point shootbolt/tongue multipoint lock
Faceplate Width: 5/8" (16mm)
Extension Length: 44-59/64" (1141mm)
Top Tongue Position from Handle: 41-13/32" (1050mm)
Number of Screws: 7
Adjustability: Non-adjustable length, no cutoff
For manual version multipoint locks
Used with top shootbolt extension for doors 94-5/16" to 113" (2395mm to 2871mm) tall

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

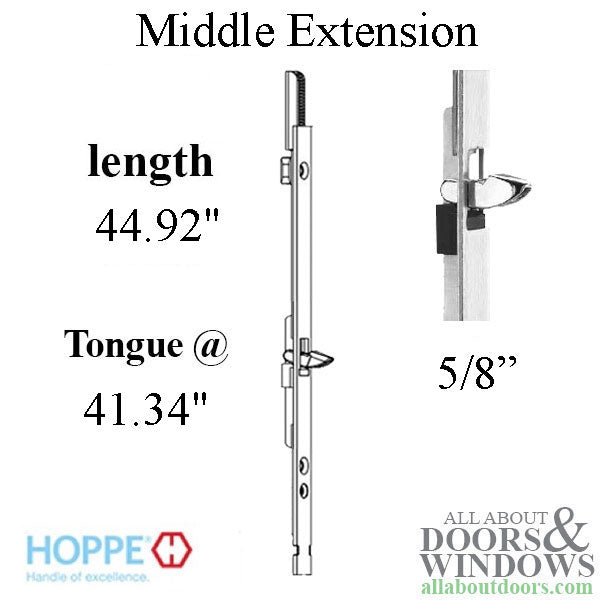

Hoppe HLS9000 Middle Extension – 16mm Faceplate (8778707)

This Hoppe HLS9000 active middle extension is designed for manual version multipoint locks featuring tongue and shootbolt functionality. It serves as the middle section component in a 5-point locking system, providing additional security points along the door edge.

The extension measures 44-59/64 inches (1141mm) in length with a 5/8 inch (16mm) faceplate width. The top tongue is positioned 41-13/32 inches (1050mm) from the handle location. This is a fixed-length component with no cutoff capability, so proper measurement before ordering is essential.

Technical Information

Faceplate Width: 5/8 inch (16mm)
Extension Length: 44-59/64 inches (1141mm)
Top Tongue Position from Handle: 41-13/32 inches (1050mm)
Number of Screws: 7
Adjustability: Non-adjustable, no maximum cutoff

Notes

This middle extension is used in combination with a top shootbolt extension to achieve the desired door height coverage
Typically used for doors ranging from 94-5/16 inches to 113 inches (2395mm to 2871mm) tall
For manual version multipoint locks only

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

HLS9000 Middle Extension – Tongue & Shootbolt, 16mm Faceplate

The HLS9000 middle extension with tongue and shootbolt is offered in four fixed lengths. All share a 16mm (5/8") faceplate and are for manual version multipoint locks. Choose the length that matches your door height — use with a top shootbolt extension to achieve full coverage.

Specification	8778703 – 27-1/4"	8779139 – 29-1/2"	8778707 – 44-59/64" ★ This Product	8778711 – 62-5/8"
Extension Length	27-1/4 in. (691mm)	29-1/2 in. (750mm)	44-59/64 in. (1141mm)	62-5/8 in. (1591mm)
Top Tongue Position	23-5/8 in. (600mm)	23-5/8 in. (600mm)	41-13/32 in. (1050mm)	59 in. (1500mm)
Faceplate Width	5/8 in. (16mm)	5/8 in. (16mm)	5/8 in. (16mm)	5/8 in. (16mm)
Number of Screws	4	4	7	9
Door Height Range	76.61–96.31 in.	Special height	94-5/16–113 in.	112-1/16–130-3/4 in.
Adjustability	Non-adjustable	Non-adjustable	Non-adjustable	Non-adjustable
Application	5-point lock middle section	5-point lock middle section	5-point lock middle section	5-point lock middle section
Requires Top Extension	Yes	Yes	Yes	Yes
SKU	8778703	8779139	8778707	8778711

Frequently Asked Questions

What door heights is this middle extension designed for?

This middle extension is typically used for doors ranging from 94-5/16 inches to 113 inches tall when combined with the appropriate top shootbolt extension.

Can I cut this extension to fit my door?

No, this is a non-adjustable, fixed-length extension with no cutoff capability. Ensure your measurements match before ordering.

What other components do I need with this middle extension?

This middle extension is used in combination with a top shootbolt extension to achieve the desired door height coverage for your 5-point multipoint lock system.
