Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 30.51" Length

Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 30.51" Length

SKU: 8778631

$85.02 - $85.02
$85.02
$85.02 - $85.02
$85.02
  • Faceplate Width: 5/8" (16mm)
  • Top Extension Length: 30.51" (775mm)
  • Shootbolt Throw: 3/4" (20mm)
  • Maximum Cutoff: 3.94" (100mm)
  • Number of Screws: 5
  • Material: Stainless Steel
  • Croppable end for adjustable door heights
  • For ACTIVE door applications
  • Compatible with Hoppe HLS9000 Multipoint Lock systems
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Top Shootbolt Extension – 16mm, 30.51" (8778631)

This top shootbolt extension is designed for use with Hoppe HLS9000 multipoint lock systems on active doors. It features a croppable end that allows for adjustment to various door heights, making it a versatile solution for custom installations.

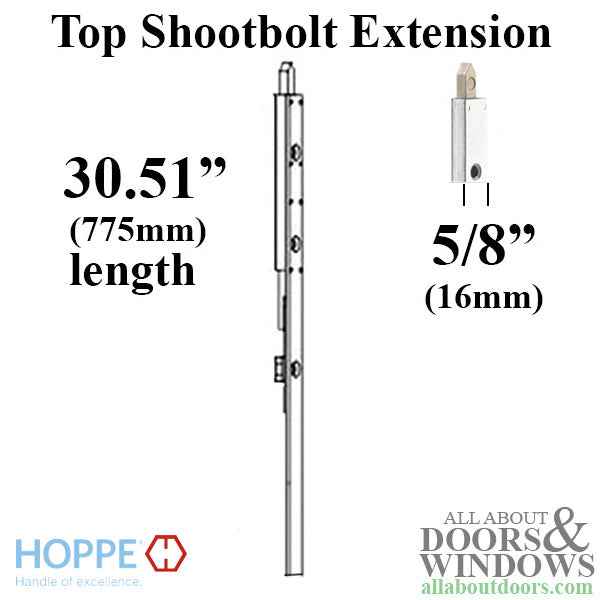

The extension measures 30.51 inches (775mm) in length with a 5/8 inch (16mm) faceplate width. The shootbolt provides a 3/4 inch (20mm) throw for secure engagement. When cropping to your desired length, ensure the faceplate and drive bar remain flush for proper operation. The maximum cutoff is 3.94 inches (100mm).

Technical Information

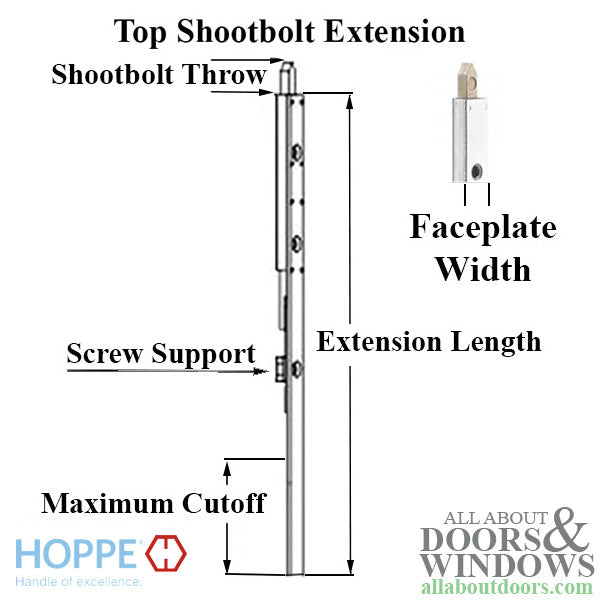

  • Faceplate Width: 5/8 inch (16mm)
  • Top Extension Length: 30.51 inches (775mm)
  • Shootbolt Throw: 3/4 inch (20mm)
  • Maximum Cutoff: 3.94 inches (100mm)
  • Number of Screws: 5
  • Material: Stainless Steel

Notes

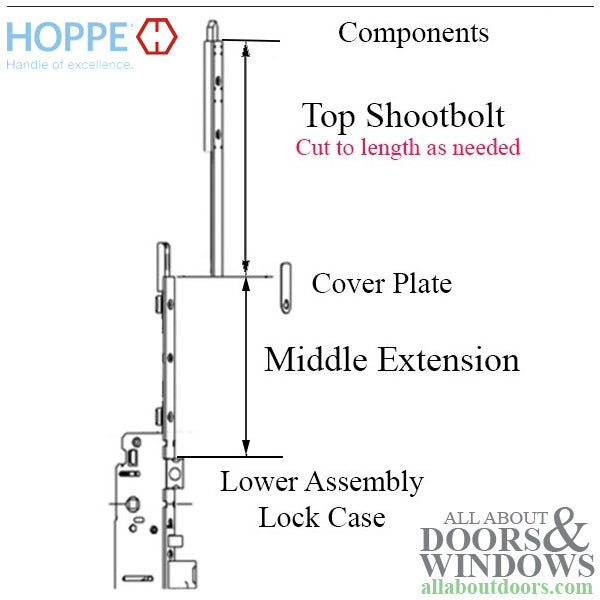

This extension is part of a system of 6 middle extensions and 6 top shootbolt extensions available for various door heights. To calculate maximum overall lock length, use this formula: Handle height + 1.61 inches + middle extension length + top shootbolt extension length = maximum overall length.

Related Parts

  • 8778691 - 27.20 inch Middle Extension (Door Heights 91.38-95.31 inches)
  • 8778695 - 44.92 inch Middle Extension (Door Heights 109.09-113.03 inches)
  • 8778699 - 62.64 inch Middle Extension (Door Heights 126.81-130.75 inches)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct extension length for my door?

Use this formula: Handle height + 1.61 inches + middle extension length + top shootbolt extension length = maximum overall lock length. Match this to your door height.

Can I cut this extension to fit my door?

Yes, this extension has a croppable end allowing up to 3.94 inches (100mm) to be cut off. When cutting, ensure the faceplate and drive bar remain flush.

What is the difference between active and passive door extensions?

Active door extensions are for the primary operating door that contains the handle and lock mechanism. Passive extensions are for the stationary door in a double-door configuration.
