Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 700mm Length

Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 700mm Length

SKU: 8778627

$85.02 - $85.02
$85.02
$85.02 - $85.02
$85.02

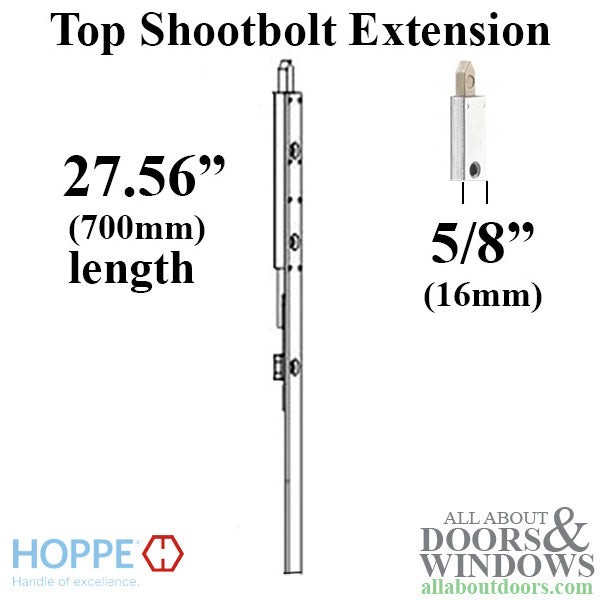

  • Faceplate Width: 5/8" (16mm)
  • Top Extension Length: 27.56" (700mm)
  • Shootbolt Throw: 3/4" (20mm)
  • Maximum Cutoff: 3.94" (100mm)
  • Number of Screws: 4
  • Material: Stainless Steel
  • Croppable end for adjustable door heights
  • For ACTIVE door applications
  • Compatible with Hoppe HLS9000 Multipoint Lock systems
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Top Shootbolt Extension – 16mm, 700mm (8778627)

This Hoppe top shootbolt extension is designed for use with the HLS9000 multipoint lock system on active doors. The extension features a croppable end, allowing you to adjust the length to fit various door heights.

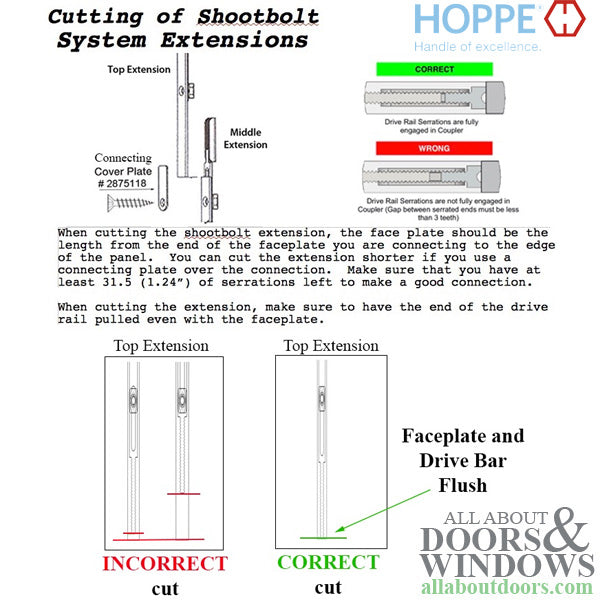

When cutting to your desired length, ensure the faceplate and serrated drive bar are flush for proper operation. The extension can be trimmed by up to 3.94 inches (100mm) to accommodate your specific door requirements.

Technical Information

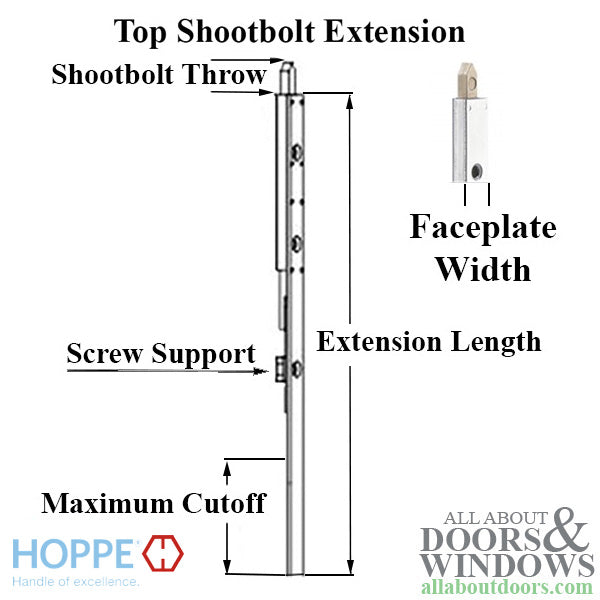

  • Faceplate Width: 5/8 inch (16mm)
  • Top Extension Length: 27.56 inches (700mm)
  • Shootbolt Throw: 3/4 inch (20mm)
  • Maximum Cutoff: 3.94 inches (100mm)
  • Number of Screws: 4
  • Material: Stainless Steel

Notes

This extension is compatible with various Hoppe middle extensions for different door heights. To calculate your overall lock length, use the formula: Handle Height + 1.61 inches + Middle Extension Length + Top Shootbolt Length = Maximum Overall Length.

Related Parts

  • 8778691 - 27.20 inch Middle Extension (Door Heights 88.43-92.36 inches)
  • 8778695 - 44.92 inch Middle Extension (Door Heights 106.14-110.08 inches)
  • 8778699 - 62.64 inch Middle Extension (Door Heights 123.86-127.80 inches)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I cut this extension to the correct length?

When cropping to your desired length, ensure the faceplate and serrated drive bar are flush. You can trim up to 3.94 inches (100mm) from the croppable end.

How do I calculate the overall lock length I need?

Use this formula: Handle Height + 1.61 inches + Middle Extension Length + Top Shootbolt Length = Maximum Overall Length.

What middle extensions are compatible with this top shootbolt extension?

This extension works with Hoppe middle extensions including 8778691 (27.20 inch), 8778695 (44.92 inch), and 8778699 (62.64 inch) for various door heights.
