Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 24.61" Length

Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 24.61" Length

SKU: 8778623

$76.80 - $76.80
$76.80
$76.80 - $76.80
$76.80

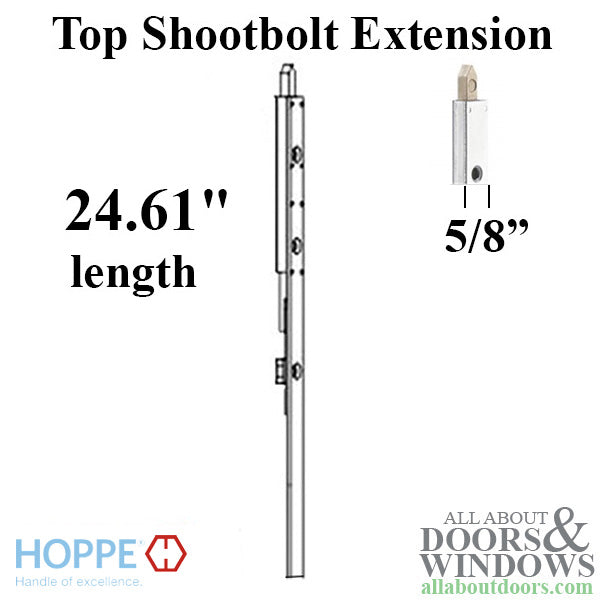

  • Faceplate Width: 5/8" (16mm)
  • Top Extension Length: 24.61" (625mm)
  • Shootbolt Throw: 3/4" (20mm)
  • Maximum Cutoff: 3.94" (100mm)
  • Number of Screws: 4
  • Material: Stainless Steel
  • Croppable end for adjustable door heights
  • For ACTIVE door applications
  • Compatible with Hoppe HLS9000 multipoint lock systems
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Top Shootbolt Extension – 16mm, 24.61" (8778623)

This top shootbolt extension is designed for use with Hoppe HLS9000 multipoint lock systems on ACTIVE doors. The extension features a croppable end, allowing you to adjust the length to fit various door heights.

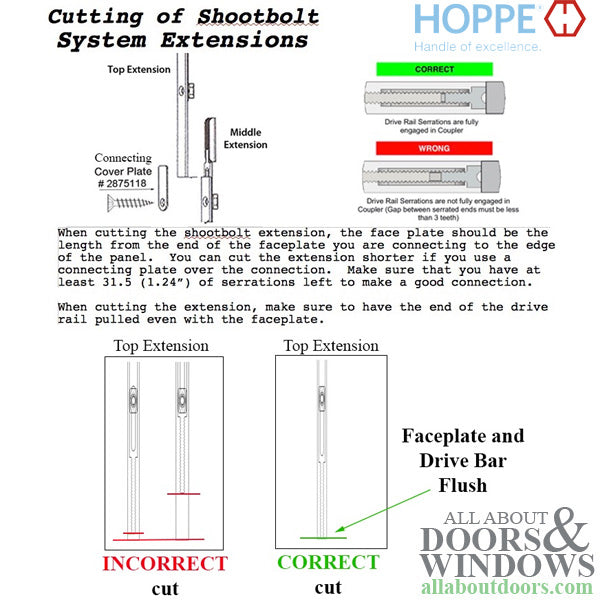

When cutting to your desired length, ensure the faceplate and drive bar are flush before making your cut. The maximum cutoff is 3.94 inches (100mm), giving you flexibility for different installations.

Technical Information

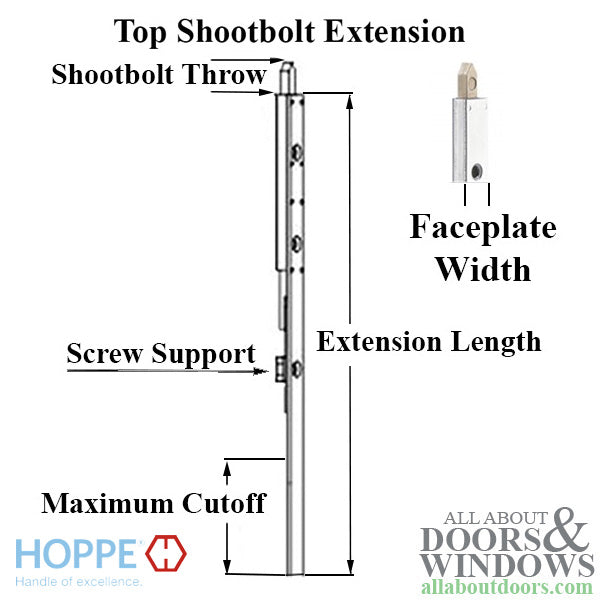

  • Faceplate Width: 5/8 inch (16mm)
  • Top Extension Length: 24.61 inches (625mm)
  • Shootbolt Throw: 3/4 inch (20mm)
  • Maximum Cutoff: 3.94 inches (100mm)
  • Number of Screws: 4
  • Material: Stainless Steel

Notes

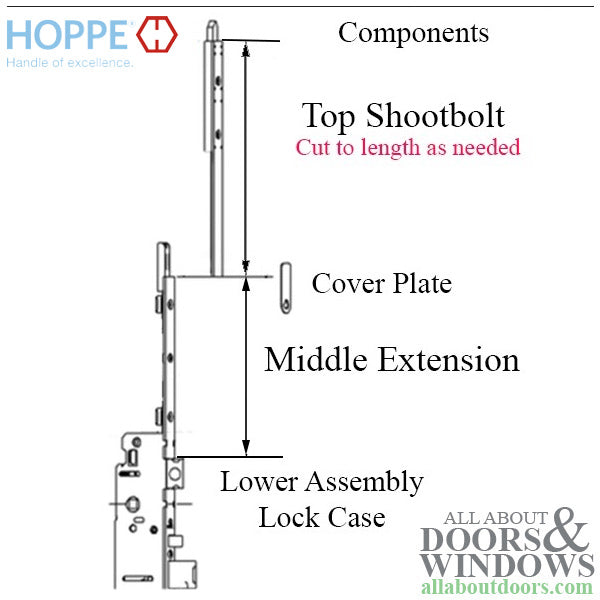

To calculate your maximum overall lock length, use this formula: Handle Height + 1.61 inches + Middle Extension Length + Top Shootbolt Length = Maximum Overall Length.

Related Parts

  • 8778691 - 27.20 inch Middle Extension; Door Heights 85.47-89.41 inches (2171-2271mm)
  • 8778695 - 44.92 inch Middle Extension; Door Heights 103.19-107.13 inches (2621-2721mm)
  • 8778699 - 62.64 inch Middle Extension; Door Heights 120.91-124.84 inches (3071-3171mm)

Six middle extensions and six top shootbolt extensions are available for various door heights.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I cut this extension to the correct length?

When cutting to your desired length, ensure the faceplate and drive bar are flush before making your cut. The maximum cutoff is 3.94 inches (100mm).

How do I calculate the overall lock length I need?

Use this formula: Handle Height + 1.61 inches + Middle Extension Length + Top Shootbolt Length = Maximum Overall Length.

Is this extension for active or inactive doors?

This top shootbolt extension is specifically designed for ACTIVE door applications with Hoppe HLS9000 multipoint lock systems.
