Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 15-3/4" Length

Hoppe Top Shootbolt Extension for HLS9000 – 16mm Faceplate, 15-3/4" Length

SKU: 8778611

$65.94 - $65.94
$65.94
$65.94 - $65.94
$65.94
  • Faceplate Width: 5/8" (16mm)
  • Top Extension Length: 15-3/4" (400mm)
  • Shootbolt Throw: 3/4" (20mm)
  • Maximum Cutoff: 3.94" (100mm)
  • Number of Screws: 3
  • Material: Stainless Steel
  • Croppable end for adjustable door heights
  • For ACTIVE door applications
  • When cutting to length, ensure faceplate and drive bar are flush
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Top Shootbolt Extension – 16mm, 15-3/4" (8778611)

This top shootbolt extension is designed for use with the Hoppe HLS9000 multipoint lock system on active doors. The croppable design allows you to adjust the extension length to fit various door heights, making it a versatile solution for custom installations.

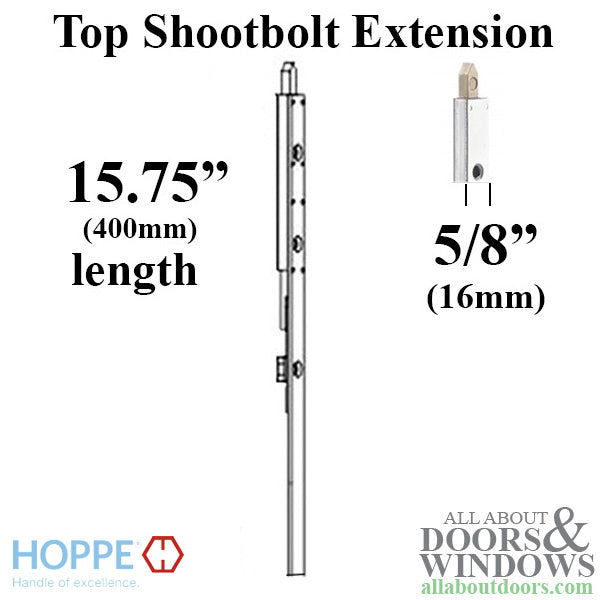

The extension features a 5/8 inch (16mm) faceplate width and measures 15-3/4 inches (400mm) in total length. The shootbolt provides a 3/4 inch (20mm) throw for secure locking engagement. You can cut up to 3.94 inches (100mm) from the extension to achieve your desired fit. When cutting to length, ensure both the faceplate and drive bar are flush before making your cut.

Constructed from stainless steel for durability and corrosion resistance, this extension secures with 3 screws.

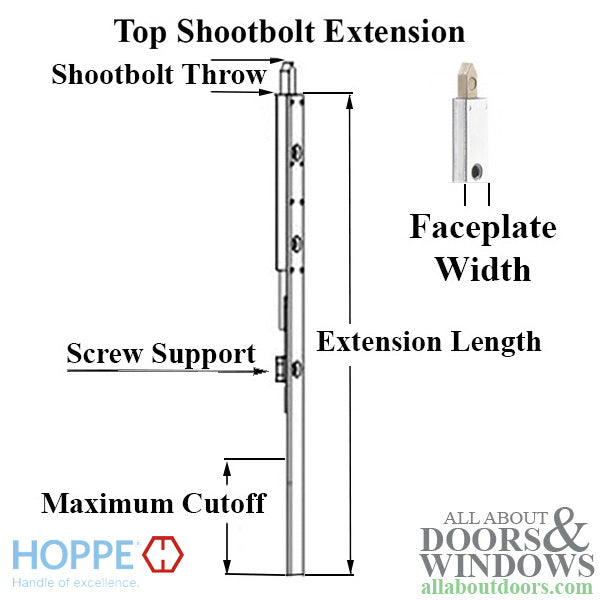

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Top Extension Length: 15-3/4 inches (400mm)
  • Shootbolt Throw: 3/4 inch (20mm)
  • Maximum Cutoff: 3.94 inches (100mm)
  • Number of Screws: 3
  • Material: Stainless Steel

Notes

This extension is for ACTIVE door applications only. There are 6 middle extensions and 6 top shootbolt extensions available for various door heights in the Hoppe HLS9000 system.

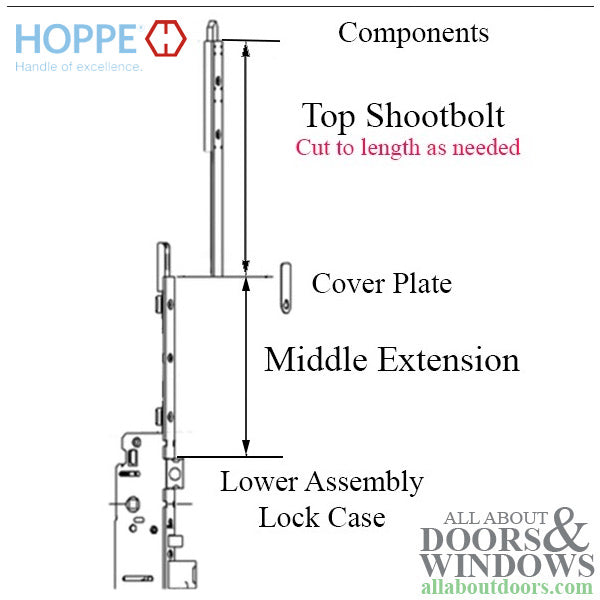

To calculate your overall lock length: Handle Height + 1.61 inches + Middle Extension Length + Top Shootbolt Length = Maximum Overall Length.

Related Parts

  • 8778691 - 27.20 inch Middle Extension (Door Heights 76.61 - 80.55 inches)
  • 8778695 - 44.92 inch Middle Extension (Door Heights 94.33 - 98.27 inches)
  • 8778699 - 62.64 inch Middle Extension (Door Heights 112.05 - 115.98 inches)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I cut this extension to the correct length?

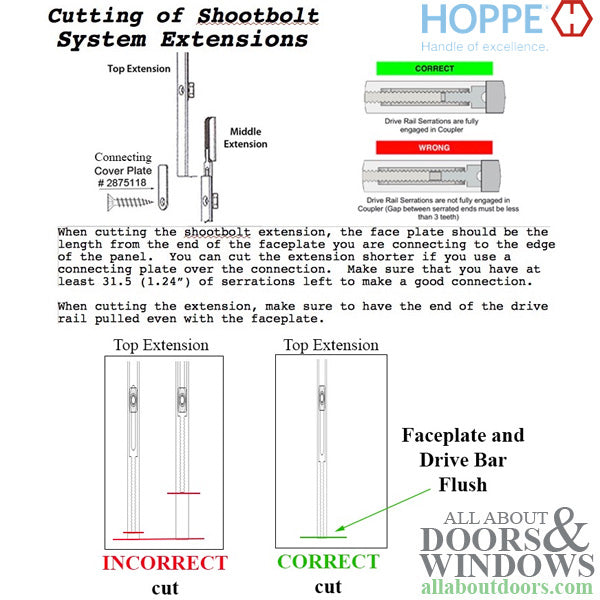

Measure your required length, then cut the croppable end. Ensure both the faceplate and drive bar are flush when making your cut. You can remove up to 3.94 inches (100mm) from this extension.

How do I calculate the overall lock length I need?

Use this formula: Handle Height + 1.61 inches + Middle Extension Length + Top Shootbolt Length = Maximum Overall Length.

What is the difference between active and inactive door extensions?

Active door extensions are designed for the door leaf that operates the locking mechanism with the handle. Make sure to select the correct type for your application.
