Hoppe HLS9000 Top Extension for 2-Roller Multipoint Lock – 16mm Faceplate, 61.81" Length

SKU: 8778491

$82.32 - $82.32

$82.32

$82.32 - $82.32

$82.32

Faceplate Width: 5/8" (16mm)
Extension Length: 61.81" (1570mm)
Top Roller Position: 50.59" (1285mm)
Handle Height to Top of Door: 63.43" (1611mm)
Maximum Cut Off: 9.65" (245mm)
Fits Overall Length: 89.76" - 99.41" (2280-2525mm) with 36" handle height
For manual locking 2-roller version multipoint locks
Compatible with HLS9000 multipoint lock systems

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Top Extension – 2-Roller (8778491)

This Hoppe HLS9000 top extension is designed for manual locking multipoint door systems featuring a 2-roller configuration. It provides secure engagement at the top of the door frame, working in conjunction with your multipoint lock body to deliver reliable multi-point security.

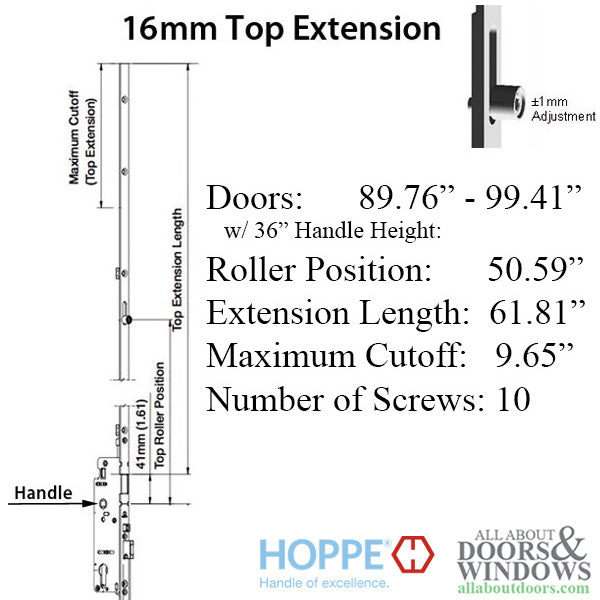

The extension measures 61.81 inches (1570mm) in length with a 5/8-inch (16mm) faceplate width. The top roller is positioned at 50.59 inches (1285mm) from the base. This extension fits doors with an overall length between 89.76 and 99.41 inches (2280-2525mm) when paired with a 36-inch handle height configuration.

Handle height to the top of the door measures 63.43 inches (1611mm). The maximum cut-off allowance is 9.65 inches (245mm), giving you flexibility during installation to accommodate your specific door dimensions.

Technical Information

Faceplate Width: 5/8 inch (16mm)
Extension Length: 61.81 inches (1570mm)

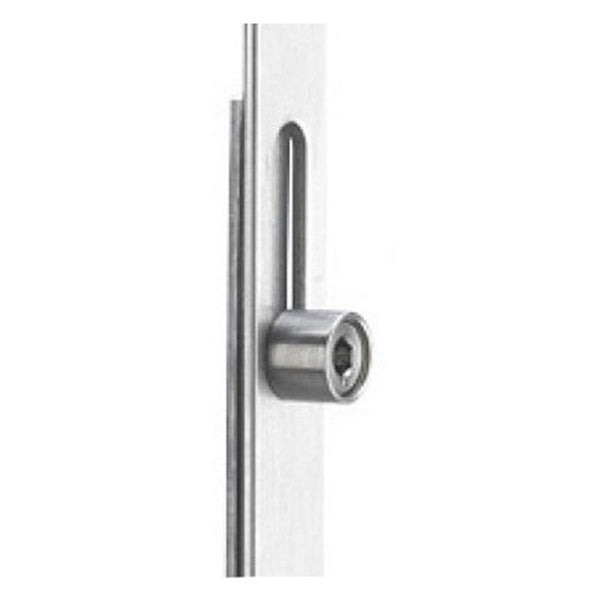

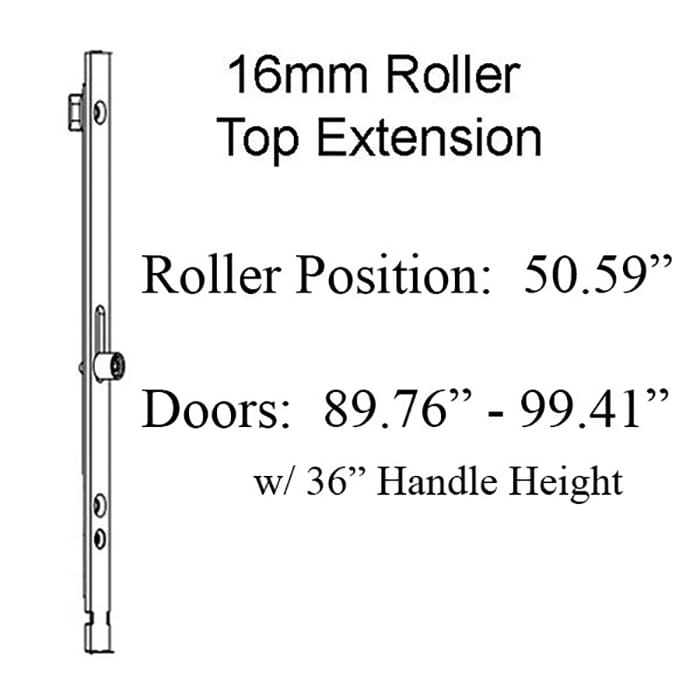

Top Roller Position: 50.59 inches (1285mm)
Handle Height to Top of Door: 63.43 inches (1611mm)
Maximum Cut Off: 9.65 inches (245mm)
Fits Overall Length: 89.76 - 99.41 inches (2280-2525mm) with 36 inch handle height
Lock Type: Manual locking, 2-roller version

Notes

Eagle Door applications use a different roller position (49.8 inches) – see part 2514099 for Eagle Door compatibility
This is the standard version with roller at 50.59 inches

Related Parts

2514099 - Upper Extension with Roller @ 49.8" (for Eagle Door applications)

To ensure you select the correct multipoint lock components, please review our Multipoint Lock Glossary of Terms or fill out the Hoppe Hinged Door Multipoint Lock Worksheet.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between part 8778491 and 2514099?

Part 8778491 is the standard version with the top roller positioned at 50.59 inches, while part 2514099 has the roller at 49.8 inches specifically for Eagle Door applications.

How do I know if this extension will fit my door?

This extension fits doors with an overall length between 89.76 and 99.41 inches when using a 36-inch handle height. Measure your door and handle position to confirm compatibility.

Can I cut this extension to fit my door?

Yes, this extension allows for a maximum cut-off of 9.65 inches (245mm) to accommodate your specific door dimensions.
