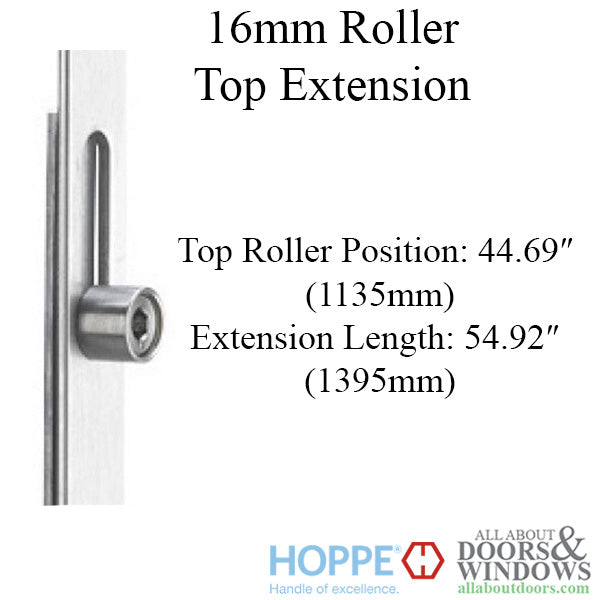

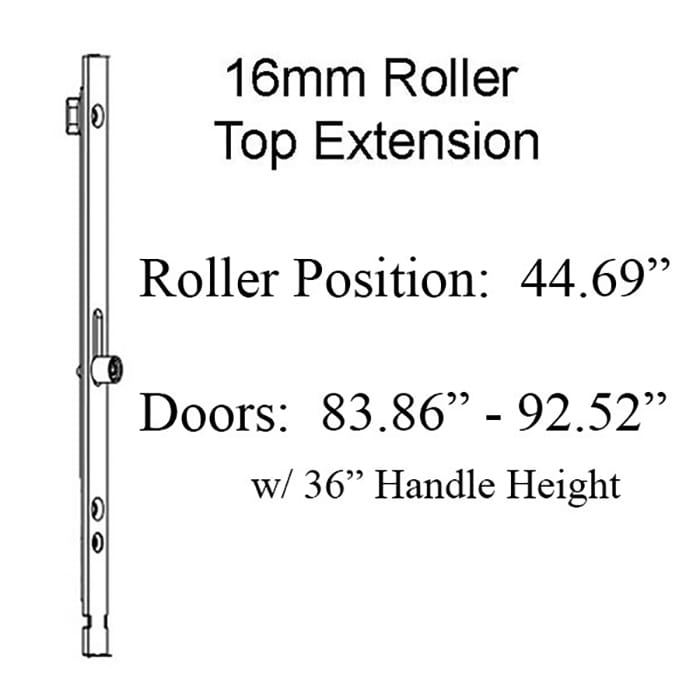

Hoppe HLS9000 Top Extension – 2-Roller, Manual, 16mm Faceplate

Hoppe HLS9000 Top Extension – 2-Roller, Manual, 16mm Faceplate

SKU: 8778487

$106.32 - $106.32
$106.32
$106.32 - $106.32
$106.32
  • Faceplate Width: 5/8" (16mm)
  • Extension Length: 54.92" (1395mm)
  • Top Roller Position: 44.69" (1135mm)
  • Handle Height to Top of Door: 56.54" (1436mm) before cut-off
  • Maximum Cut-Off: 8.66" (220mm)
  • Fits Overall Door Length: 33.86" to 92.52" (860mm to 2350mm) with 36" handle height
  • Locking Version: Manual
  • Rollers: 2-roller version
  • Installation Screws: 9
  • For use with HLS9000 multipoint lock systems
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Top Extension – 2-Roller, Manual (8778487)

This Hoppe HLS9000 top extension is designed for manual locking multipoint door systems featuring a 2-roller configuration. It provides secure upper locking engagement for hinged doors when paired with a compatible Hoppe multipoint lock body.

The extension measures 54.92 inches (1395mm) in length with a 5/8-inch (16mm) faceplate width. The top roller is positioned at 44.69 inches (1135mm) from the base. This extension fits doors with an overall length ranging from 33.86 inches to 92.52 inches (860mm to 2350mm) when used with a 36-inch handle height configuration.

Handle height to the top of the door measures 56.54 inches (1436mm) before any cut-off, with a maximum allowable cut-off of 8.66 inches (220mm) to accommodate various door heights. Installation requires 9 screws.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Extension Length: 54.92 inches (1395mm)
  • Top Roller Position: 44.69 inches (1135mm)
  • Handle Height to Top of Door: 56.54 inches (1436mm)
  • Maximum Cut-Off: 8.66 inches (220mm)
  • Fits Overall Door Length: 33.86 to 92.52 inches (860mm to 2350mm)
  • Handle Height: 36 inches
  • Locking Version: Manual
  • Number of Rollers: 2
  • Installation Screws: 9

Notes

  • Compatible with Hoppe HLS9000 multipoint lock systems
  • For manual locking configurations only

Related Parts

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How much can I cut off this extension to fit my door?

This extension allows a maximum cut-off of 8.66 inches (220mm) from the top to accommodate different door heights.

What door sizes does this top extension fit?

This extension fits doors with an overall length from 33.86 inches to 92.52 inches when used with a 36-inch handle height configuration.

Is this extension for automatic or manual locking systems?

This extension is designed specifically for manual locking multipoint systems, not automatic locking versions.
