Hoppe Multipoint Bottom Gear – 35mm Backset, 16mm Faceplate, 36" Handle Height

Hoppe Multipoint Bottom Gear – 35mm Backset, 16mm Faceplate, 36" Handle Height

SKU: 8778339

$170.43 - $170.43
$170.43
$170.43 - $170.43
$170.43
  • Backset: 1-3/8" (35mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 0.55" (14mm)
  • Handle Height: 36" (914mm)
  • Number of Screws: 6
  • Manual locking for active door
  • Bottom gear only
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

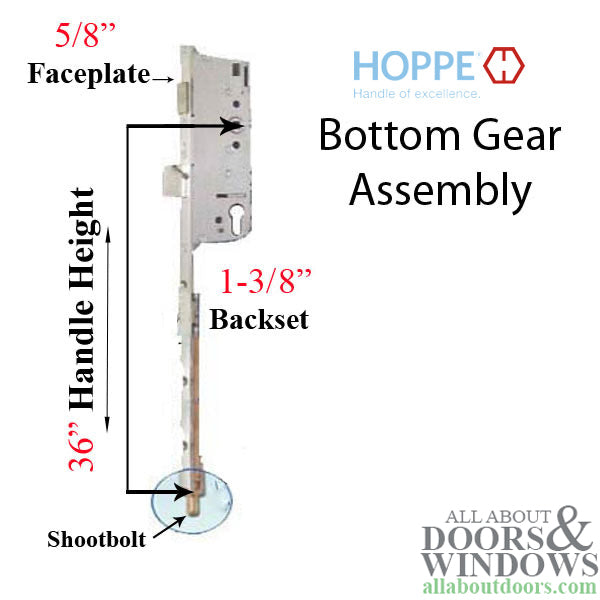

Hoppe Bottom Gear – 35mm, 16mm Faceplate (8778339)

This Hoppe 16mm faceplate bottom gear is designed for manual locking on active multipoint doors. It serves as the lower locking component in a multipoint lock system, providing secure engagement at the bottom of the door frame.

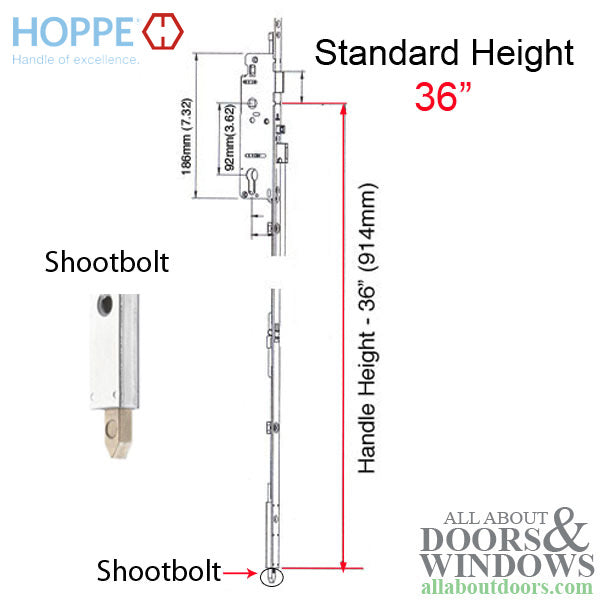

The bottom gear features a 35mm (1-3/8 inches) backset and a compact 16mm (5/8 inch) faceplate width, making it suitable for standard European-style multipoint lock applications. The deadbolt throw measures 0.55 inches (14mm), and the handle height is positioned at 36 inches (914mm) from the bottom of the gear.

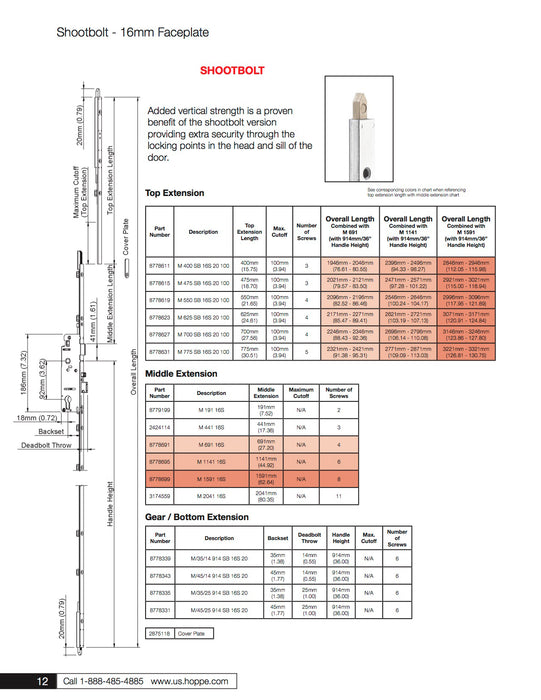

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Backset: 1-3/8 inches (35mm)
  • Deadbolt Throw: 0.55 inches (14mm)
  • Handle Height: 36 inches (914mm)
  • Number of Screws: 6
  • Function: Manual locking for active door

Notes

  • Bottom gear component only - does not include full multipoint lock assembly

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a bottom gear in a multipoint lock system?

A bottom gear is the lower locking component of a multipoint lock that engages with the door frame at the bottom, providing additional security points beyond the main lock body.

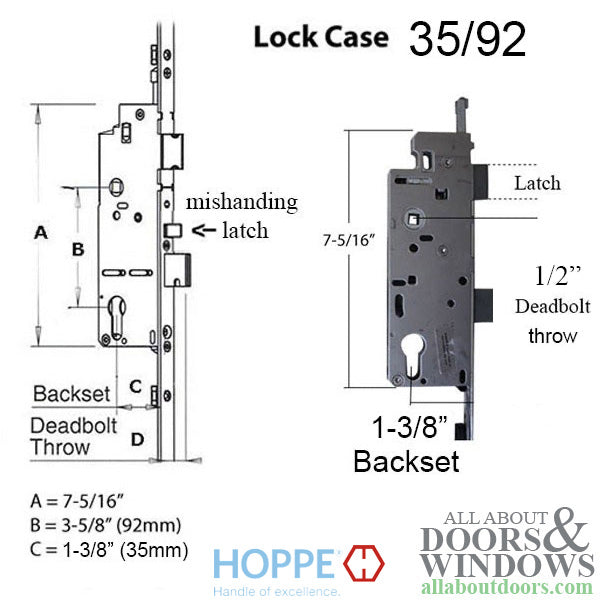

How do I measure the backset on my door?

Measure from the edge of the door to the center of the handle bore hole. This bottom gear requires a 35mm (1-3/8 inch) backset.
