Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

SKU: 8778311

$190.29 - $190.29
$190.29
$190.29 - $190.29
$190.29
  • Type: Lower/Bottom section of 5-point multipoint lock system (1 of 3 pieces)
  • Model: HLS9000 Tongue & Shootbolt version, 90057 Tongue Version for Active Door
  • Backset: 1-3/4" (45mm)
  • PZ: 92mm
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1/2" (14mm)
  • Handle Height: 36" (914mm)

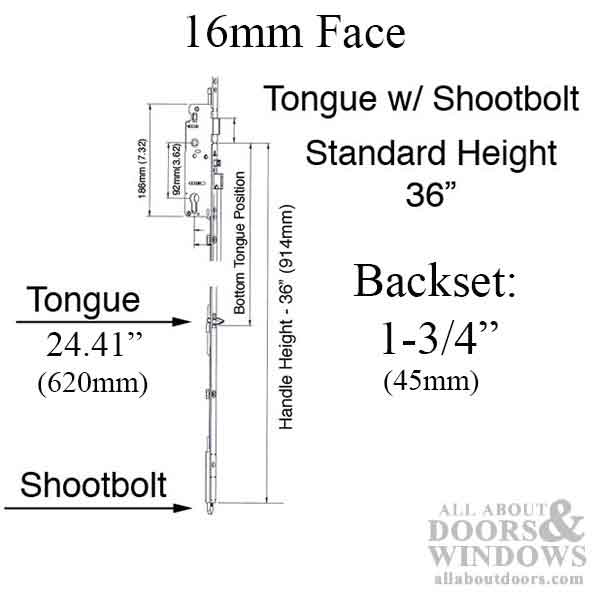

  • Bottom Tongue Position: 24.41" (620mm)
  • Number of Screws: 6
  • Manual gear operation
  • Requires middle extension and top shootbolt to complete 5-point lock system
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Lower Extension – 45/92, Tongue & Shootbolt (8778311)

This Hoppe HLS9000 lower extension is the bottom section of a 5-point multipoint locking system. Designed as the 90057 Tongue Version for active doors, this manual gear assembly features a tongue and shootbolt configuration for secure multi-point engagement.

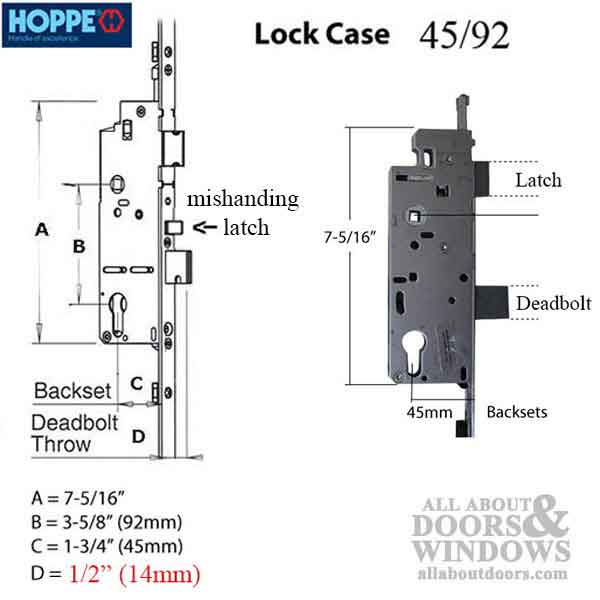

The lower extension has a 1-3/4 inch (45mm) backset and 92mm PZ measurement, with a 5/8 inch (16mm) faceplate width. The deadbolt throw measures 1/2 inch (14mm), providing solid security at the bottom locking point. Handle height is positioned at 36 inches (914mm), with the bottom tongue position at 24.41 inches (620mm).

Technical Information

  • Model: HLS9000 (HL S9000 MP Manual Gear)
  • Version: 90057 Tongue Version
  • Application: Active Door
  • Backset: 1-3/4 inches (45mm)
  • PZ: 92mm
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1/2 inch (14mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Number of Screws: 6
  • Maximum Cutoff: N/A

Notes

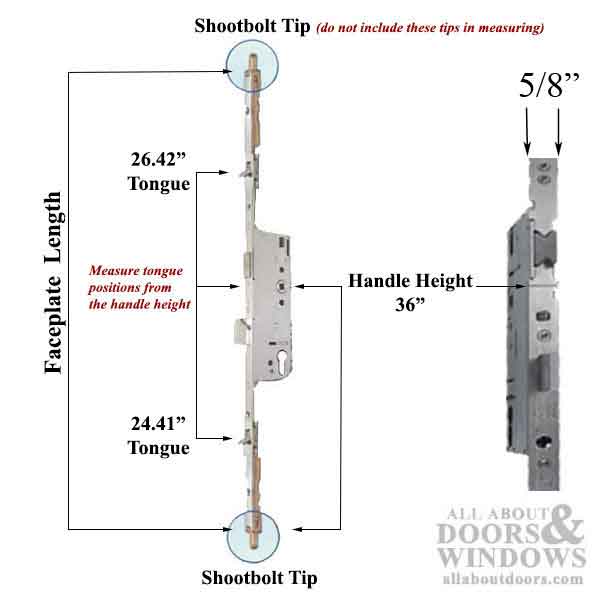

  • This is 1 of 3 pieces required for a complete 5-point lock system
  • A complete 5-point lock requires: lower assembly (this part), middle extension, and top shootbolt
  • Locking positions vary depending on door height and customer requirements

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What other parts do I need to complete this 5-point lock system?

This lower extension is 1 of 3 pieces. You will also need a middle extension and a top shootbolt to complete the 5-point multipoint lock system.

What does PZ measurement mean?

PZ is the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ measurement.

How do I measure the backset on my door?

Measure from the edge of the door to the center of the handle bore hole. This lock requires a 1-3/4 inch (45mm) backset.
