Hoppe HLS9000 Bottom Gear – Roller Version, Automatic Locking, 45mm Backset

SKU: 8778295

$157.30 - $157.30

$157.30

$157.30 - $157.30

$157.30

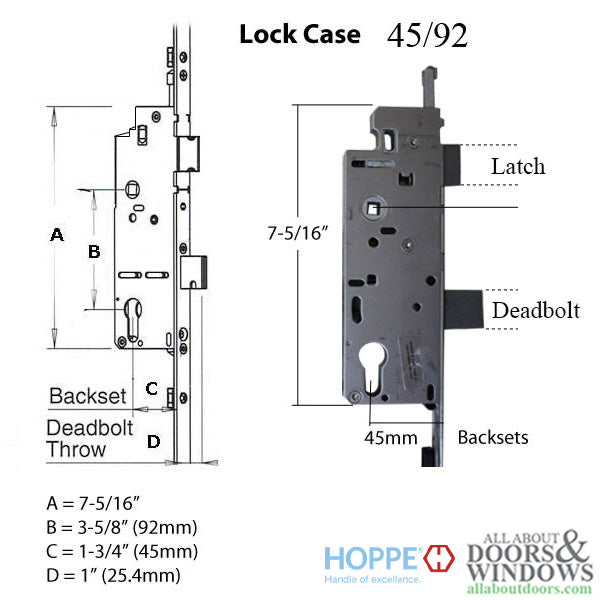

Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)

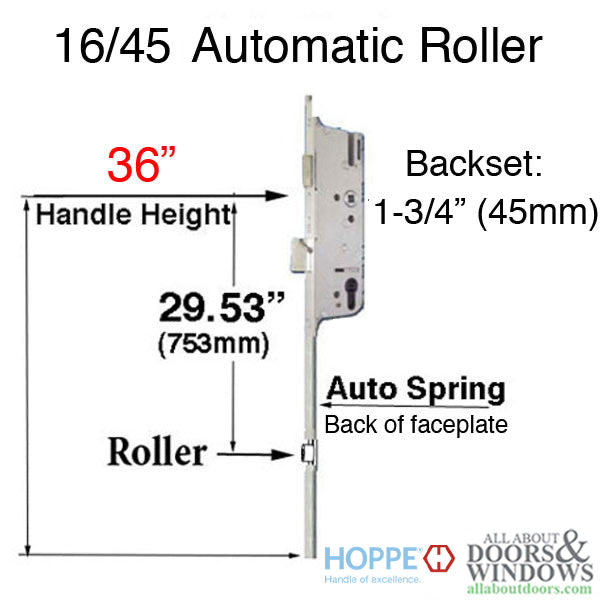

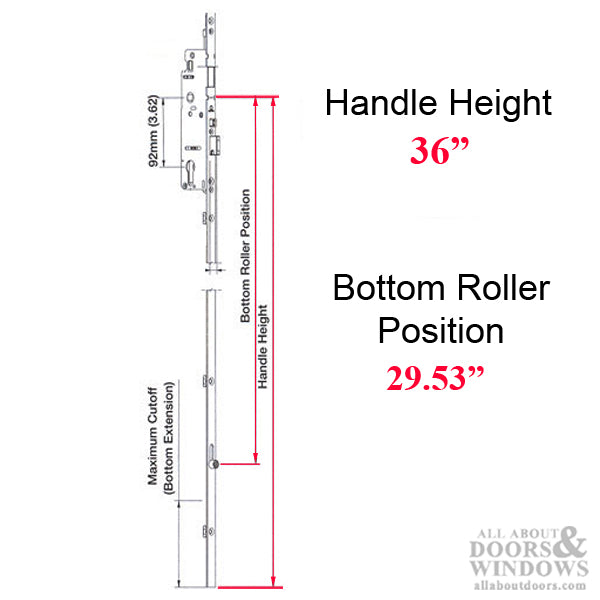

Handle Height: 36" (914mm)

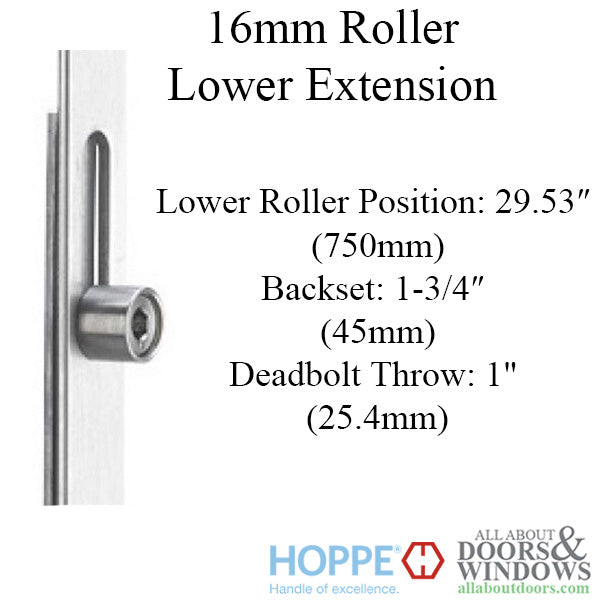

Bottom Roller Position: 29.53" (750mm) in down, locked position
Deadbolt Throw: 1" (25.4mm)
Maximum Cutoff: 2.36" (60mm)
Number of Screws: 5
Roller version with automatic locking mechanism
Latch handing can be reversed with a screwdriver

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Bottom Gear – Roller, Auto Lock (8778295)

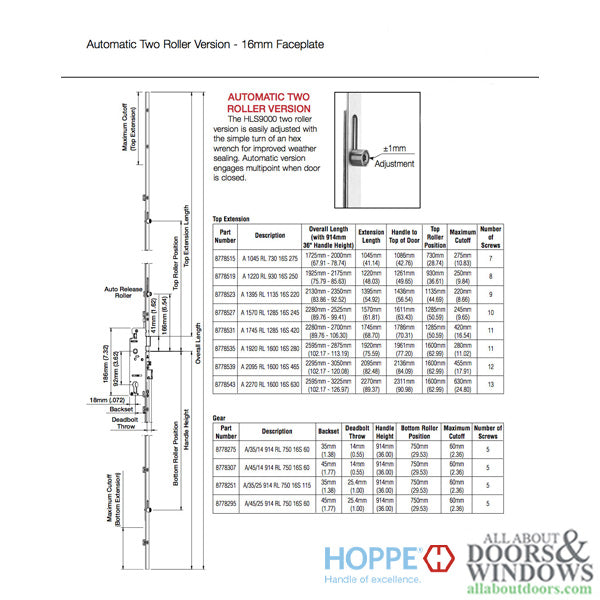

This Hoppe HLS9000 Bottom Gear is a roller version multipoint lock component featuring automatic locking functionality. Designed for use in Hoppe 3-point locking systems, this bottom gear engages rollers that automatically drop into the locked position when the door closes.

The unit features a 1-3/4 inch (45mm) backset and 5/8 inch (16mm) faceplate width. The handle height measures 36 inches (914mm), with the bottom roller positioned at 29.53 inches (750mm) when in the down, locked position. The deadbolt throw is 1 inch (25.4mm), and the maximum cutoff is 2.36 inches (60mm). Five screws are included for installation.

How to Operate

To Open (Unlock Door):

Turn thumb turn to release lever from locked position
Push down on lever to raise locking rollers
Open door

To Close (Lock Door):

Lift up on lever to set roller
When you hear a click, rollers are engaged in the up position
Close door and rollers will automatically drop down into locked position
Turn thumb turn to secure rollers in locked position

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inches (16mm)
Handle Height: 36 inches (914mm)
Bottom Roller Position: 29.53 inches (750mm)
Deadbolt Throw: 1 inch (25.4mm)
Maximum Cutoff: 2.36 inches (60mm)
Number of Screws: 5

Notes

Latch handing can be reversed: insert screwdriver into hole behind latch, push latch out, and rotate
For help selecting the correct multipoint lock, see the Multipoint Lock Glossary of Terms

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the handing on this Hoppe lock?

Insert a screwdriver into the hole behind the latch, push the latch out (it can also be pulled out with fingers), then rotate the latch to the desired orientation.

How does the automatic locking feature work?

When you close the door, the rollers automatically drop down into the locked position. Turn the thumb turn to secure the rollers in place.

What is the handle height on this bottom gear?

The handle height is 36 inches (914mm), with the bottom roller positioned at 29.53 inches (750mm) when in the down, locked position.
