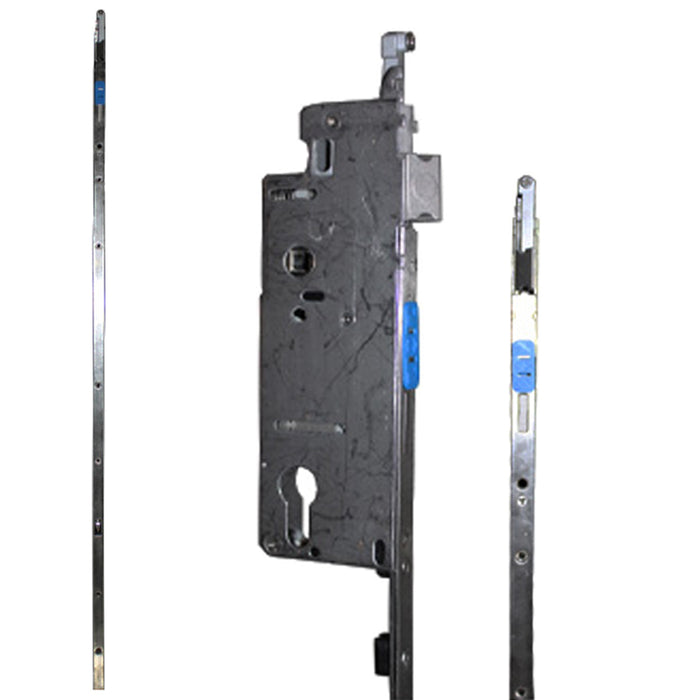

Hoppe HLS9000 Automatic Tongue Gear – 45mm Backset, 92mm PZ

Hoppe HLS9000 Automatic Tongue Gear – 45mm Backset, 92mm PZ

SKU 8778291

$131.10 - $131.10
$131.10
$131.10 - $131.10
$131.10

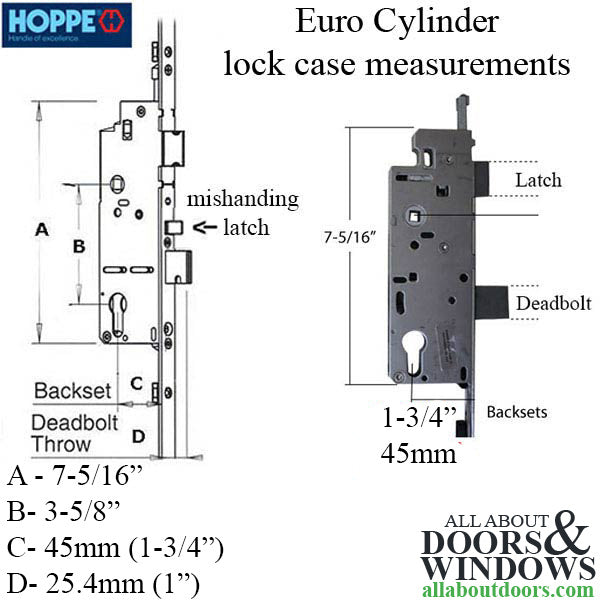

  • PZ: 92mm
  • Backset: 45mm (1-3/4")
  • Faceplate: 16mm, square end
  • Deadbolt Throw: 25.4mm (1")
  • Handle Height: 914mm (36"), can be cut down 115mm (4.5") to fit 31.45" to 36" handle height
  • Lower Tongue: 671mm (26.42")
  • Automatic Engagement: Tongue retracts when open, engages multipoint when door is closed
  • Provides security when locked with a smooth, clean appearance when open
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Automatic Tongue Gear – 45/92 (8778291)

The Hoppe HLS9000 Automatic Tongue Gear is designed for multipoint lock systems with a 45mm backset and 92mm PZ. This automatic version features a tongue that retracts smoothly when the door is opened, providing a clean appearance, and automatically engages the multipoint lock when the door is closed.

The gear offers reliable security in the locked position with a 25.4mm (1 inch) deadbolt throw. The handle height is set at 914mm (36 inches) but can be cut down by up to 115mm (4.5 inches) to accommodate handle heights ranging from 31.45 inches to 36 inches.

Technical Information

  • PZ: 92mm
  • Backset: 45mm (1-3/4 inches)
  • Faceplate Width: 16mm, square end
  • Deadbolt Throw: 25.4mm (1 inch)
  • Handle Height: 914mm (36 inches), adjustable down to 31.45 inches
  • Lower Tongue Position: 671mm (26.42 inches)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does 'automatic' mean for this tongue gear?

The automatic feature means the tongue retracts when the door is opened for a clean appearance, then automatically engages the multipoint lock when the door is closed.

Can I adjust the handle height on this gear?

Yes, the handle height is 36 inches but can be cut down by up to 4.5 inches to fit handle heights ranging from 31.45 inches to 36 inches.

How do I know if this gear fits my door?

Verify your existing lock has a 45mm backset and 92mm PZ (distance from handle center to cylinder center), and that your faceplate is 16mm wide with a square end.
