Hoppe HLS9000 Bottom Gear – Two Roller, 35mm Backset, Automatic Locking

SKU: 8778275

$162.34 - $162.34

$162.34

$162.34 - $162.34

$162.34

Backset: 1-3/8" (35mm)
Handle Height: 36" (914mm)
Bottom Roller Position: 29.53" (750mm) in down position
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 0.55" (14mm)
Maximum Cutoff: 2.36" (60mm)
Number of Screws: 5
HLS9000 series with two roller version
Automatic locking mechanism
Latch handing can be reversed

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Bottom Gear – Two Roller, 35mm Backset (8778275)

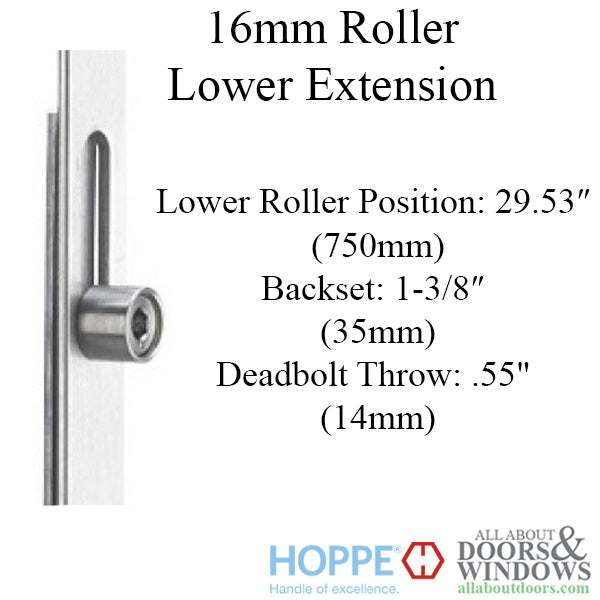

This Hoppe bottom gear is designed for the HLS9000 series multipoint lock system. It features a two roller automatic locking mechanism that provides secure engagement when the door is closed. The rollers automatically drop into the locked position when the door closes, and the thumb turn secures them in place.

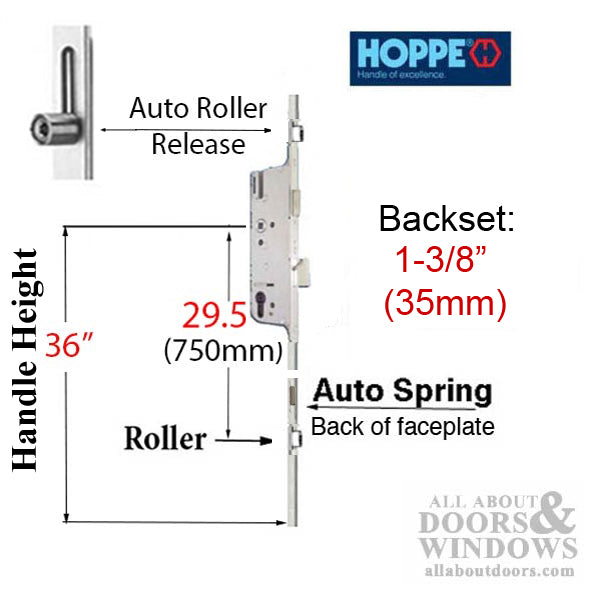

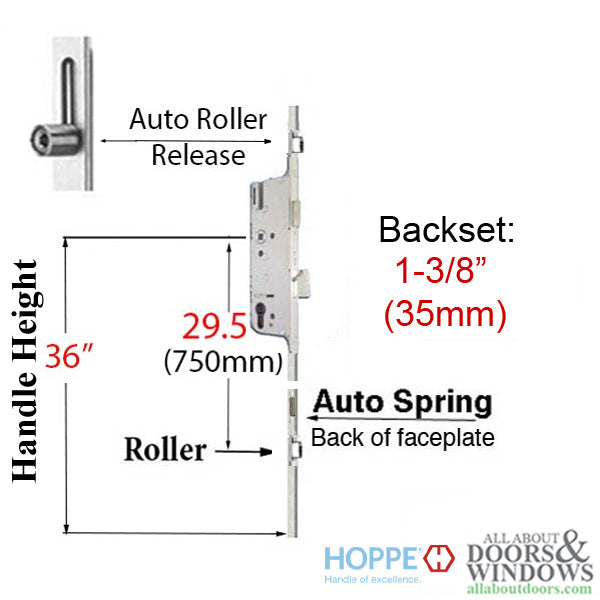

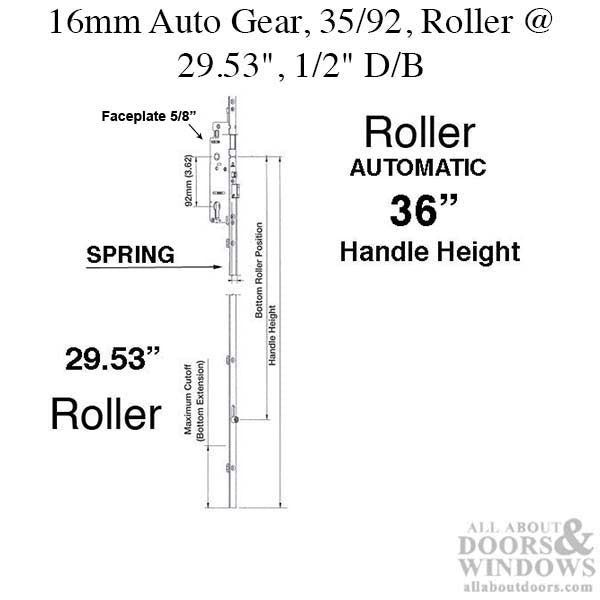

The unit has a 1-3/8 inch (35mm) backset with a handle height of 36 inches (914mm). The bottom roller is positioned at 29.53 inches (750mm) from the handle center when in the down position. The faceplate measures 5/8 inch (16mm) wide, and the deadbolt throw is 0.55 inches (14mm). A maximum cutoff of 2.36 inches (60mm) is available for fitting adjustments.

Technical Information

Backset: 1-3/8 inches (35mm)
Handle Height: 36 inches (914mm)
Bottom Roller Position: 29.53 inches (750mm) in down position
Faceplate Width: 5/8 inch (16mm)
Deadbolt Throw: 0.55 inches (14mm)
Maximum Cutoff: 2.36 inches (60mm)
Number of Screws: 5
Lock Type: Automatic locking with two rollers

Notes

Latch handing can be reversed by inserting a screwdriver into the hole behind the latch, pushing the latch out, and rotating it
To operate: unlock by turning thumb turn, push down on lever to raise rollers, then open door
To lock: lift lever to set rollers until you hear a click, close door for automatic engagement, then turn thumb turn to secure

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I operate the Hoppe 3-point automatic lock with rollers?

To open: turn the thumb turn to release the lever, push down on the lever to raise the rollers, then open the door. To close and lock: lift the lever until you hear a click, close the door so rollers automatically engage, then turn the thumb turn to secure.

Can I change the handing on this lock?

Yes, insert a screwdriver into the hole behind the latch, push the latch out (it can also be pulled with fingers), then rotate the latch to reverse the handing.

What does automatic locking mean on this bottom gear?

The two rollers automatically drop into the locked position when you close the door, providing secure engagement without needing to manually lock each point.
