Hoppe Manual Roundbolt Bottom Gear – 35mm Backset, 16mm Faceplate

Hoppe Manual Roundbolt Bottom Gear – 35mm Backset, 16mm Faceplate

SKU: 8778259

$198.35 - $198.35
$198.35
$198.35 - $198.35
$198.35

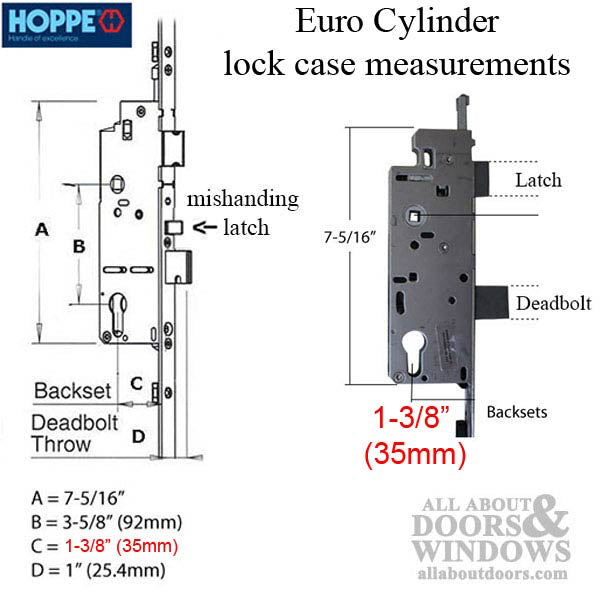

  • Backset: 1-3/8" (35mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)

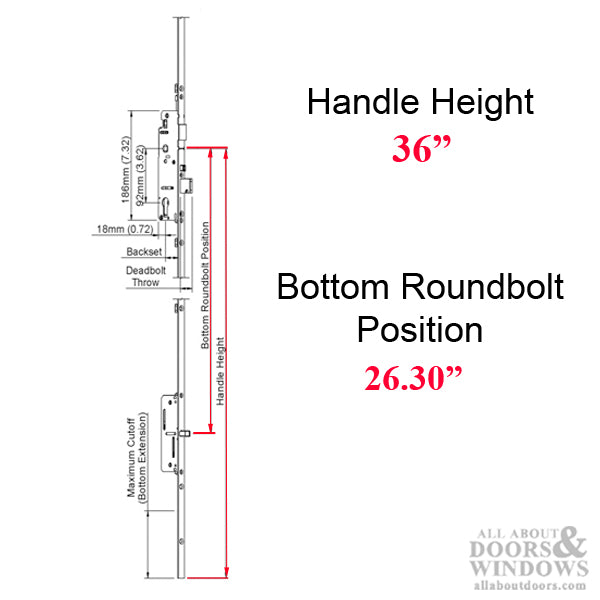

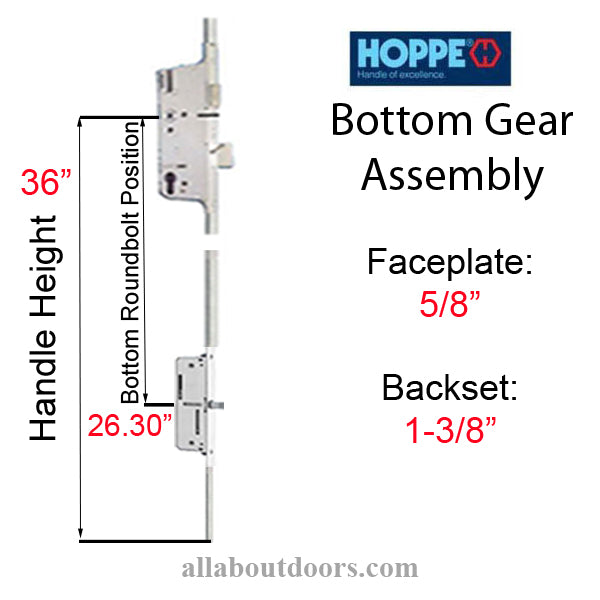

  • Handle Height: 36" (914mm)
  • Bottom Roundbolt Position: 26.30" (668mm)
  • Maximum Cutoff: 5.51" (140mm)
  • Number of Screws: 5
  • Manual roundbolt version - bottom gear only
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe 16mm Manual Roundbolt Bottom Gear (8778259)

This Hoppe 16mm Manual Roundbolt Bottom Gear is designed for multipoint lock systems. It features a manual roundbolt operation and serves as the bottom gear component only.

The gear has a 1-3/8 inch (35mm) backset and a 5/8 inch (16mm) faceplate width, making it compatible with standard Hoppe multipoint lock configurations. The deadbolt throw measures 1 inch (25.4mm) for secure engagement.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Backset: 1-3/8 inches (35mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Roundbolt Position: 26.30 inches (668mm)
  • Maximum Cutoff: 5.51 inches (140mm)
  • Number of Screws: 5

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a manual roundbolt?

A manual roundbolt is a locking bolt that extends into the door frame when the handle is operated, providing additional security at the bottom of the door.

Is this a complete multipoint lock?

No, this is the bottom gear only. You may need additional components such as the main lock body and upper extensions for a complete multipoint lock system.

How do I measure the handle height?

Measure from the bottom of the faceplate to the center of the handle spindle hole. This gear has a 36 inch handle height.
