Hoppe Multipoint Lock Bottom Gear – 45mm Backset, 92mm PZ, Tongue Version

Hoppe Multipoint Lock Bottom Gear – 45mm Backset, 92mm PZ, Tongue Version

SKU 8778183

$131.13 - $131.13
$131.13
$131.13 - $131.13
$131.13

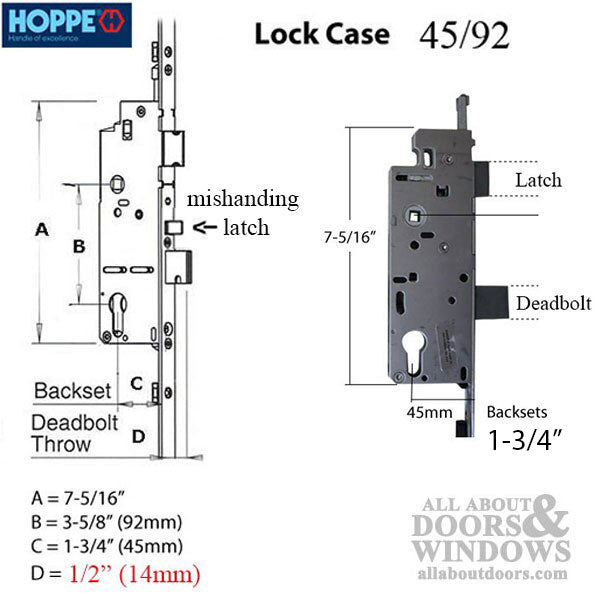

  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Faceplate: Stainless steel, 16mm (5/8") width
  • Deadbolt Throw: 14mm (0.55")

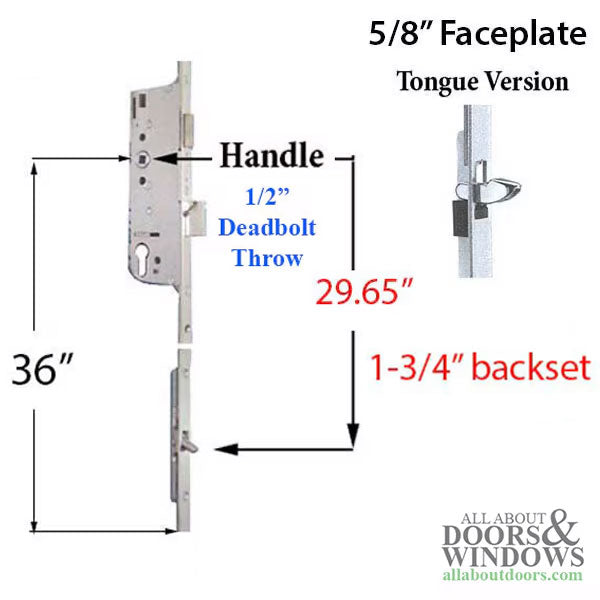

  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 29.65" (753mm)
  • Maximum Cutoff: 1.18" (30mm)
  • Locking Points: 3 total when used with top extension (1 deadbolt, 2 tongues)
  • Configuration: Tongue version for active door with deadbolt and 1 tongue
  • Screws Included: 5
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe MP Manual Gear – 45/92, Tongue Version (8778183)

This Hoppe HL S9000 multipoint lock bottom gear is designed for active doors requiring a tongue version configuration. The gear features a deadbolt and one tongue, providing secure multi-point locking when paired with a compatible top extension for a total of 3 locking points.

Built with a stainless steel faceplate measuring 16mm (5/8 inches) in width, this lock body offers durability and corrosion resistance. The 45mm (1-3/4 inches) backset and 92mm PZ ensure compatibility with standard Hoppe multipoint door systems.

Technical Information

  • PZ: 92mm
  • Backset: 45mm (1-3/4 inches)
  • Faceplate Width: 16mm (5/8 inches)
  • Faceplate Material: Stainless Steel
  • Deadbolt Throw: 14mm (0.55 inches)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 29.65 inches (753mm)
  • Maximum Cutoff: 1.18 inches (30mm)
  • Screws Included: 5
  • Original Manufacturer SKU: 8778183

Related Parts

  • 8778163 - Same gear with 1 inch (25.4mm) deadbolt throw

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How many locking points does this multipoint lock provide?

When used with a compatible top extension, this lock provides 3 locking points: 1 deadbolt and 2 tongues.

What is the difference between this gear and part 8778163?

Part 8778163 is the same gear but features a 1 inch (25.4mm) deadbolt throw instead of the 14mm (0.55 inch) throw on this model.

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole), measured in millimeters. This lock has a 92mm PZ.
