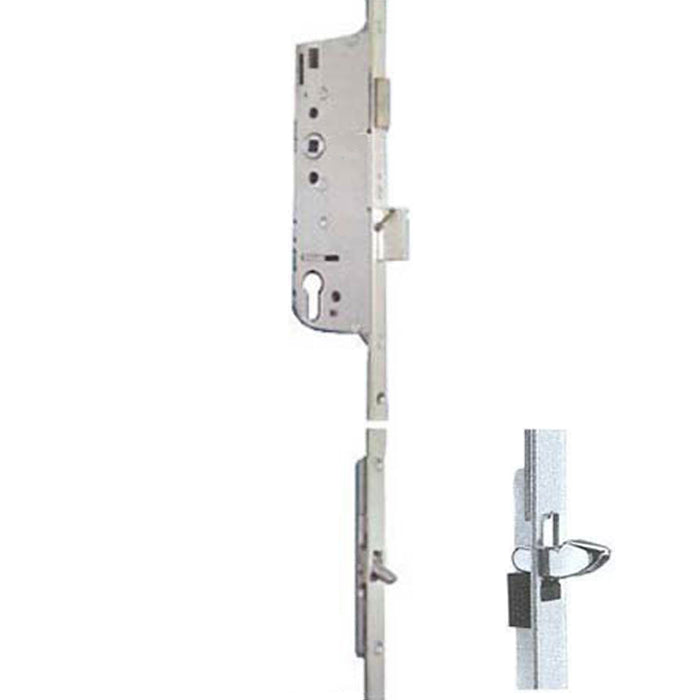

Hoppe HL S9000 Multipoint Lock – 45mm Backset, 36" Handle Height, Tongue Version

SKU 8778167

$163.71 - $163.71

$163.71

$163.71 - $163.71

$163.71

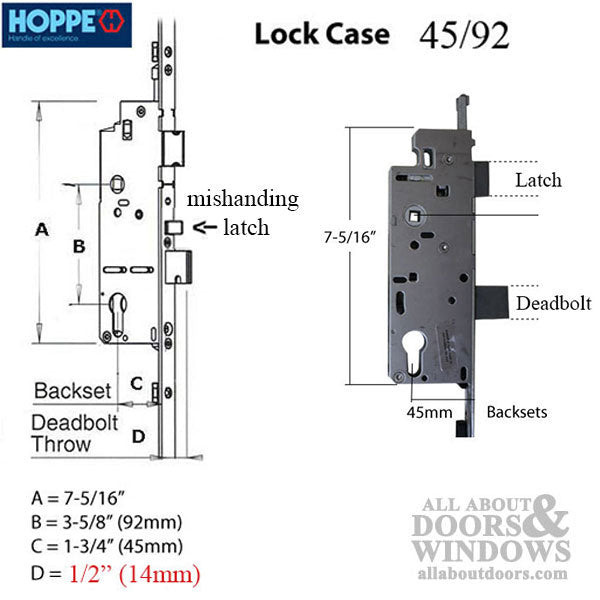

Backset: 1-3/4" (45mm)
PZ: Not specified in product data
Faceplate Width: 5/8" (16mm)

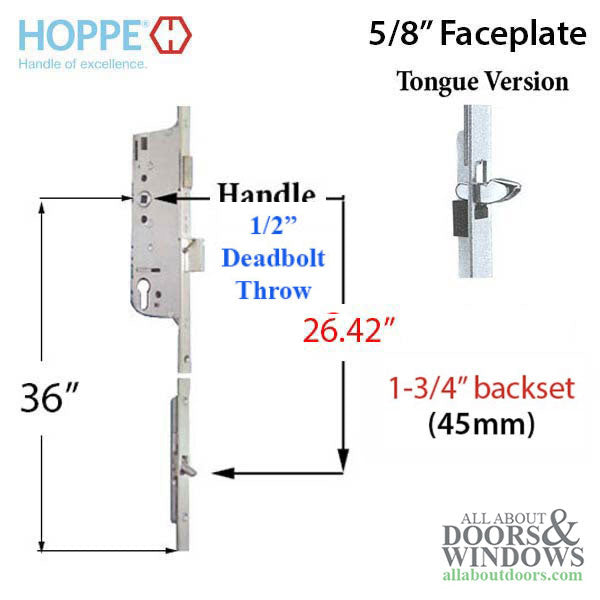

Handle Height: 36" (914mm)
Bottom Tongue Position: 26.42" (671mm)
Deadbolt Throw: 1/2" (14mm)
Maximum Cutoff: 4.53" (115mm)
Screw Holes: 5
Manual gear tongue version for active doors

Estimated Delivery

Between December 11 and December 15

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Hoppe HL S9000 Multipoint Lock – 45mm, Tongue (8778167)

This Hoppe HL S9000 multipoint lock features manual gear operation and is designed as a tongue version for active doors. The lock body provides reliable multi-point security for residential and commercial door applications.

With a 1-3/4 inch (45mm) backset and 5/8 inch (16mm) faceplate width, this lock is built to fit standard multipoint door preparations. The handle height measures 36 inches (914mm) from the bottom of the faceplate, and the bottom tongue position sits at 26.42 inches (671mm).

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inches (16mm)
Handle Height: 36 inches (914mm)
Bottom Tongue Position: 26.42 inches (671mm)
Deadbolt Throw: 1/2 inches (14mm)
Maximum Cutoff: 4.53 inches (115mm)
Number of Screw Holes: 5
Gear Type: Manual
Door Application: Active Door

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the handle height on this multipoint lock?

The handle height measures 36 inches (914mm) from the bottom of the faceplate.

What is the difference between a tongue version and other multipoint locks?

A tongue version features a locking tongue mechanism at the bottom of the lock body that engages into a strike plate for additional security.

How do I measure my backset to confirm this lock will fit?

Measure from the edge of the door to the center of the handle bore hole. This lock requires a 1-3/4 inch (45mm) backset.
