Hoppe Manual Multipoint Lock Gear – 45mm Backset, 92mm PZ, 36" Handle Height

Hoppe Manual Multipoint Lock Gear – 45mm Backset, 92mm PZ, 36" Handle Height

SKU 8778163

$131.13 - $131.13
$131.13
$131.13 - $131.13
$131.13

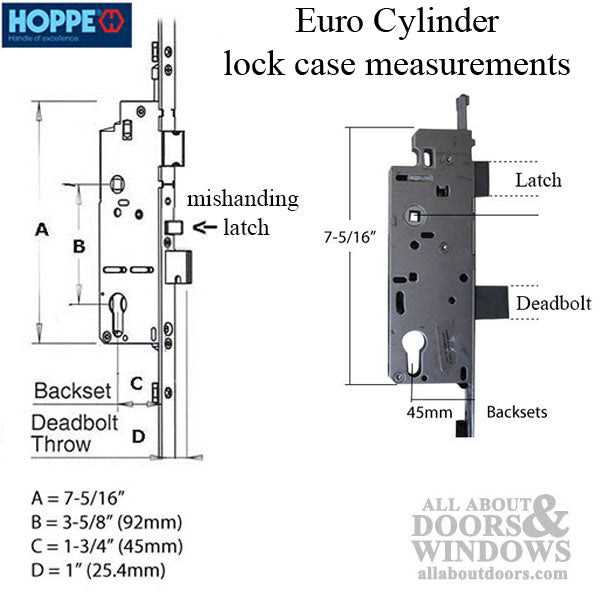

  • PZ: 92mm
  • Backset: 45mm (1-3/4")

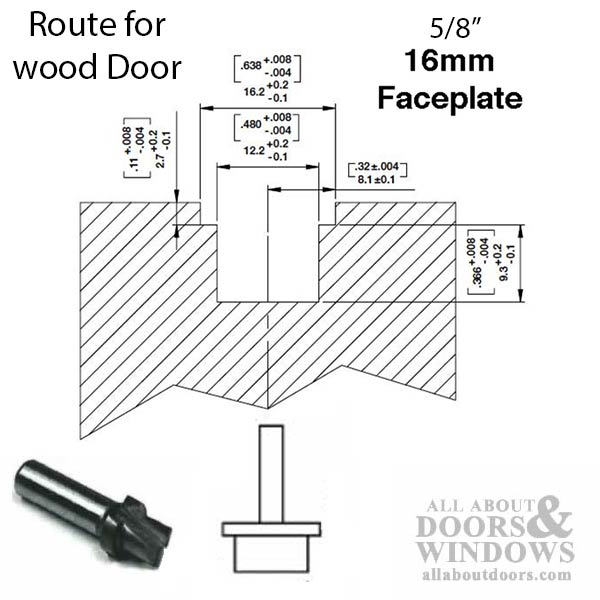

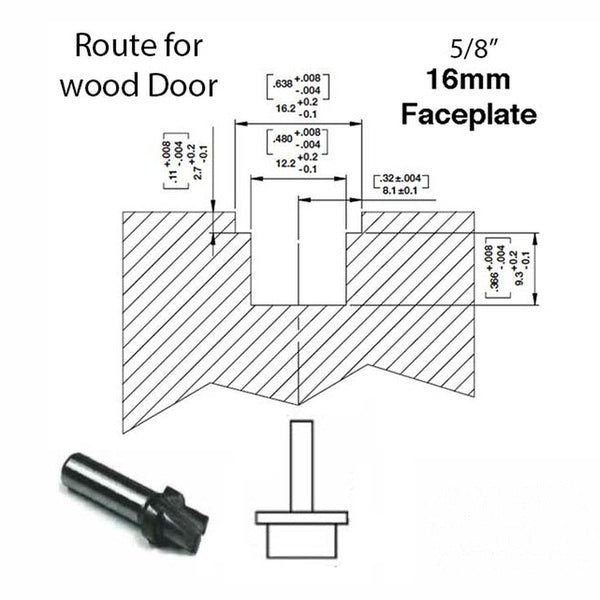

  • Faceplate: 16mm (5/8") wide, stainless steel

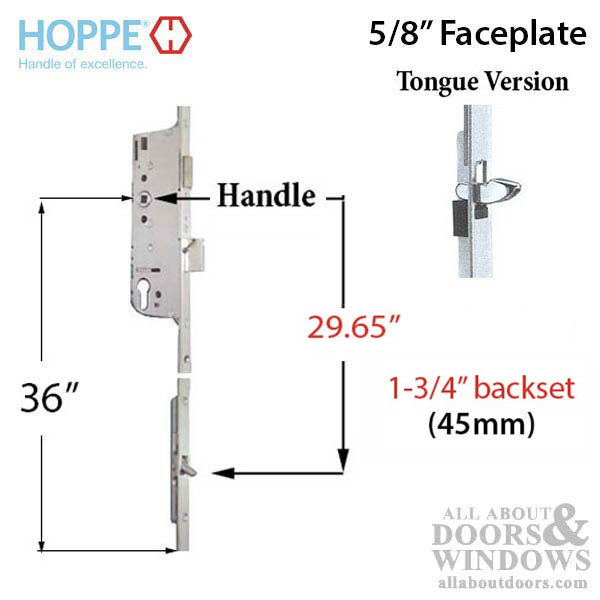

  • Handle Height: 36" (914mm)
  • Deadbolt Throw: 1" (25.4mm)

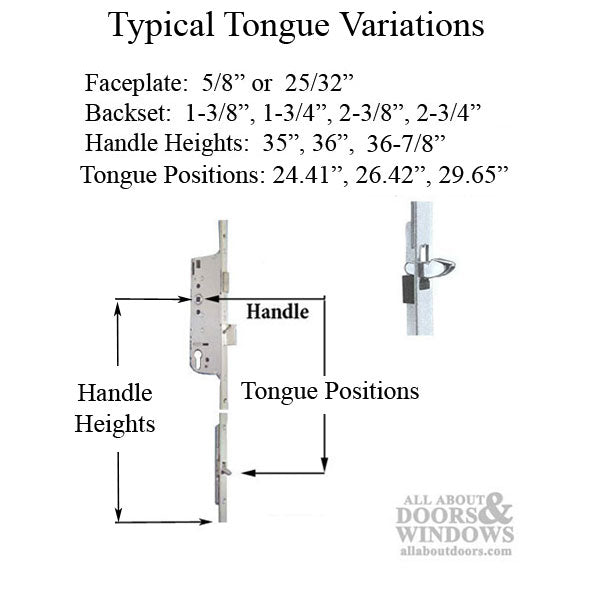

  • Bottom Tongue Position: 29.65" (753mm)
  • Maximum Cutoff: 1.18" (30mm)
  • Manual multipoint lock gear for active door
  • Includes deadbolt and 1 tongue (2 locking points)
  • When paired with top extension, provides 3 locking points: 1 deadbolt, 2 tongues
  • HLS9000 MP Manual Gear
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Manual Multipoint Gear – 45/92, 36" HH (8778163)

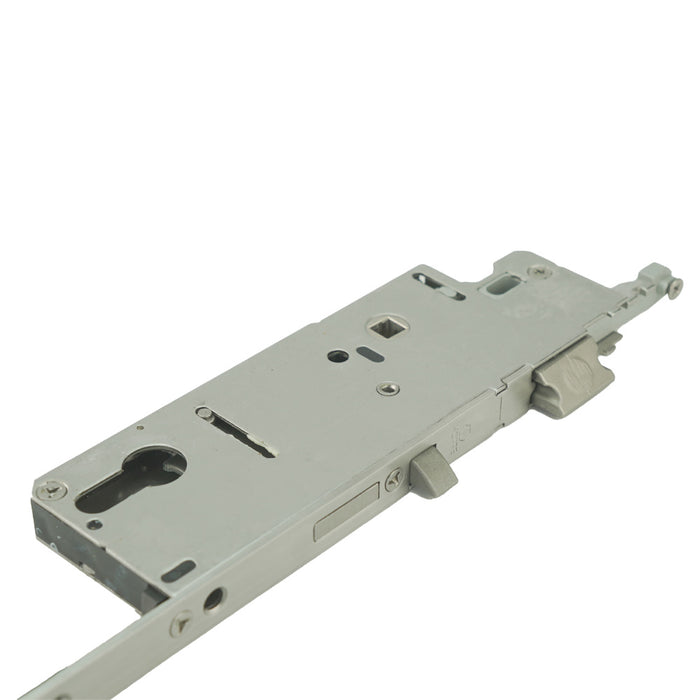

This Hoppe 16mm manual multipoint lock gear is designed for active doors requiring reliable multi-point security. The gear features a 45mm backset and 92mm PZ spacing, with a 36-inch handle height configuration.

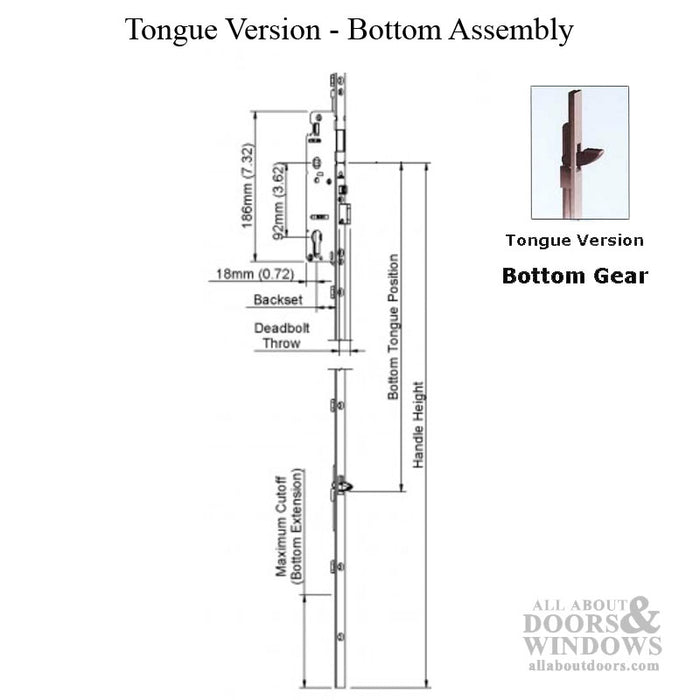

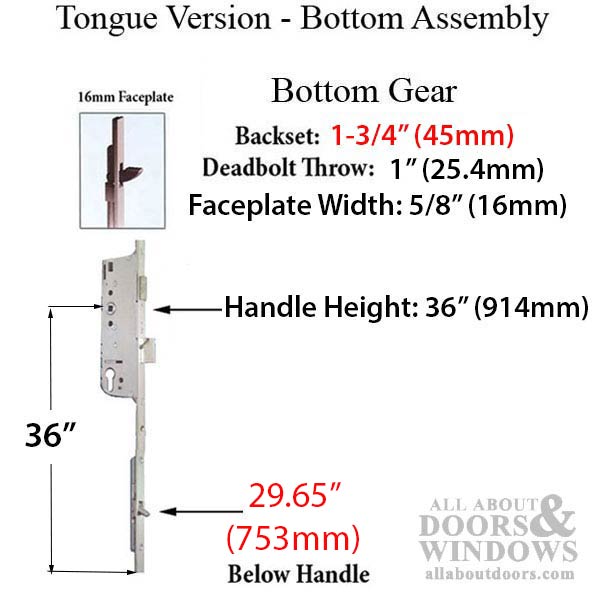

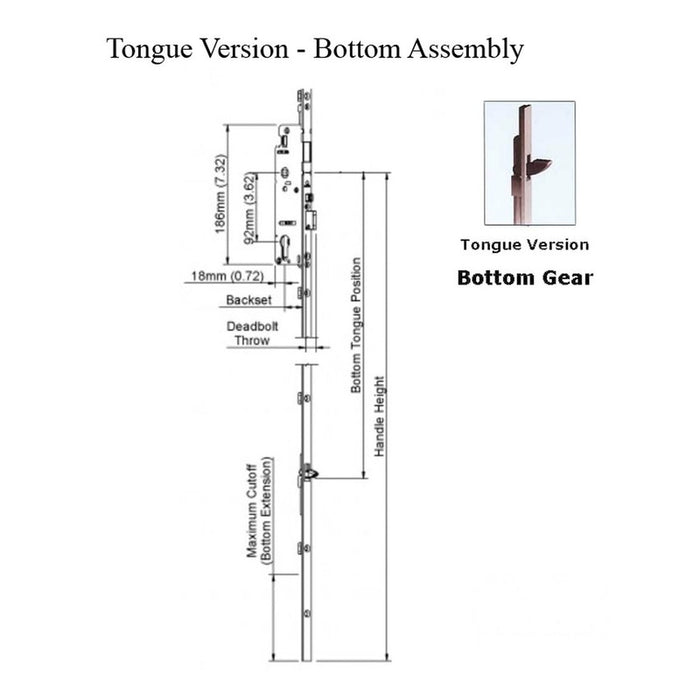

As a bottom gear unit, this lock includes a deadbolt and one tongue, providing two locking points on its own. When combined with a compatible top extension, the system expands to three locking points: one deadbolt and two tongues for enhanced door security.

Technical Information

  • Model: HLS9000 MP Manual Gear
  • Backset: 1.77 inches (45mm)
  • PZ: 92mm
  • Faceplate Width: 0.63 inches (16mm)
  • Faceplate Material: Stainless Steel
  • Handle Height: 36 inches (914mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Bottom Tongue Position: 29.65 inches (753mm)
  • Maximum Cutoff: 1.18 inches (30mm)

Related Parts

  • 8778183 - Same gear with 0.55 inch (14mm) deadbolt throw

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How many locking points does this multipoint lock provide?

On its own, this bottom gear provides 2 locking points (1 deadbolt and 1 tongue). When paired with a compatible top extension, it provides 3 locking points total.

What is the difference between this gear and part 8778183?

Part 8778183 is the same gear but with a smaller 0.55 inch (14mm) deadbolt throw instead of the 1 inch (25.4mm) deadbolt throw on this unit.

What does PZ measurement mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This gear has a 92mm PZ spacing.
