Hoppe HLS9000 Manual Multipoint Gear – 35mm Backset, 92mm PZ, 36" Handle Height

Hoppe HLS9000 Manual Multipoint Gear – 35mm Backset, 92mm PZ, 36" Handle Height

SKU 8778147

$131.13 - $131.13
$131.13
$131.13 - $131.13
$131.13
  • PZ: 92mm (3-5/8")
  • Backset: 35mm (1-3/8")
  • Faceplate Width: 16mm (5/8")
  • Deadbolt Throw: 1" (25.4mm)
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 26.42" (671mm)
  • Maximum Cutoff: 4.53" (115mm)
  • Number of Screws: 5
  • Manual gear for active door
  • HLS 9000 series, 90057 tongue version
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Manual Gear – 35/92, 36" Handle Height (8778147)

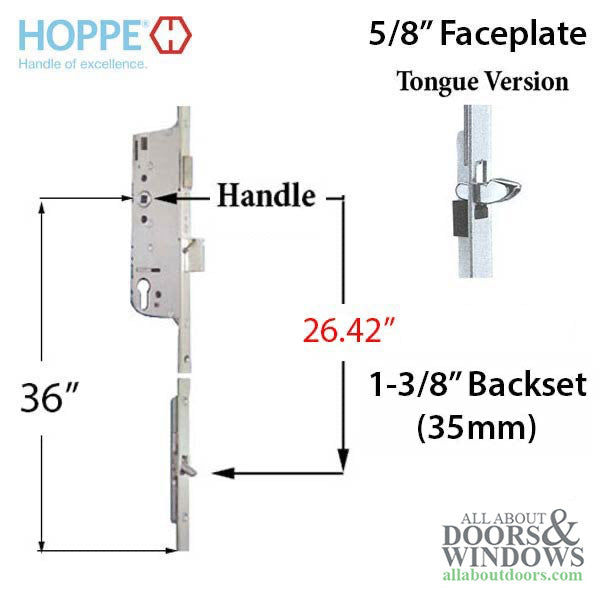

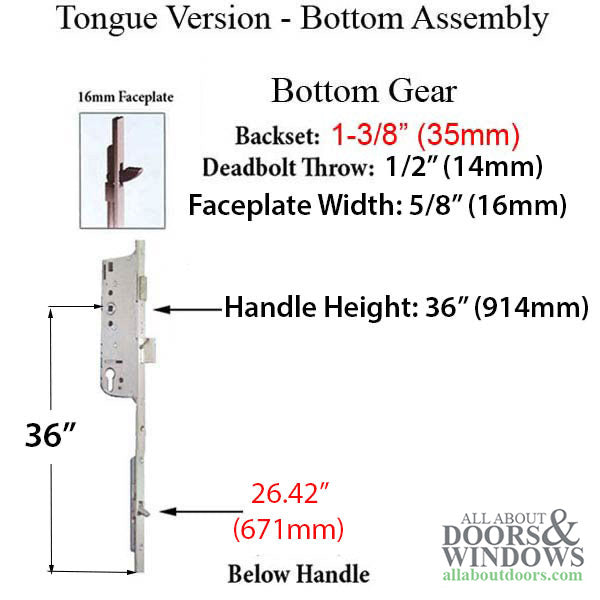

This Hoppe HLS 9000 multipoint lock gear is designed for active doors requiring manual operation. The 90057 tongue version features a bottom tongue positioned at 26.42 inches from the handle center, making it suitable for specific door configurations where precise tongue placement is critical.

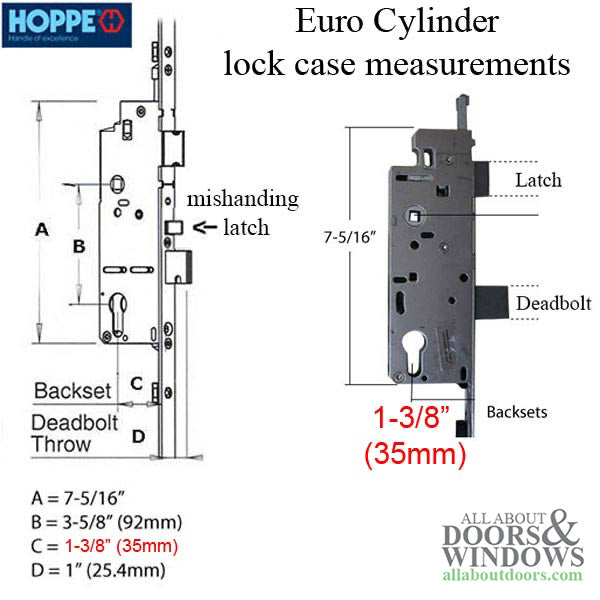

The gear operates with a 35mm backset and 92mm PZ (handle center to cylinder center), which are standard European measurements commonly found on multipoint door systems. The 1-inch deadbolt throw provides solid security when engaged.

Technical Information

  • Series: HLS 9000
  • Operation: Manual
  • PZ: 92mm (3-5/8 inches)
  • Backset: 35mm (1-3/8 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 26.42 inches (671mm)
  • Maximum Cutoff: 4.53 inches (115mm)
  • Number of Screws: 5
  • Tongue Version: 90057

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole), measured in millimeters. This lock has a 92mm PZ.

How do I measure the handle height on my door?

Measure from the bottom of the faceplate to the center of the handle bore hole. This gear is designed for a 36-inch handle height.

What is the tongue position measurement used for?

The tongue position (26.42 inches on this gear) indicates where the bottom tongue engages with the door frame strike, which must align with your existing strike plate location.
