Hoppe HLS9000 Multipoint Lock Bottom Gear – 45mm Backset, Manual Version

Hoppe HLS9000 Multipoint Lock Bottom Gear – 45mm Backset, Manual Version

SKU 8778139

$212.60 - $212.60
$212.60
$212.60 - $212.60
$212.60

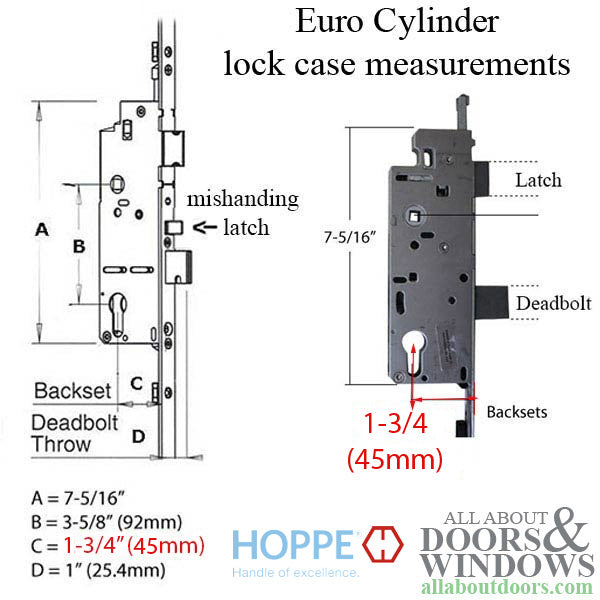

  • Backset: 1-3/4" (45mm)
  • PZ: Not specified in product data
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)

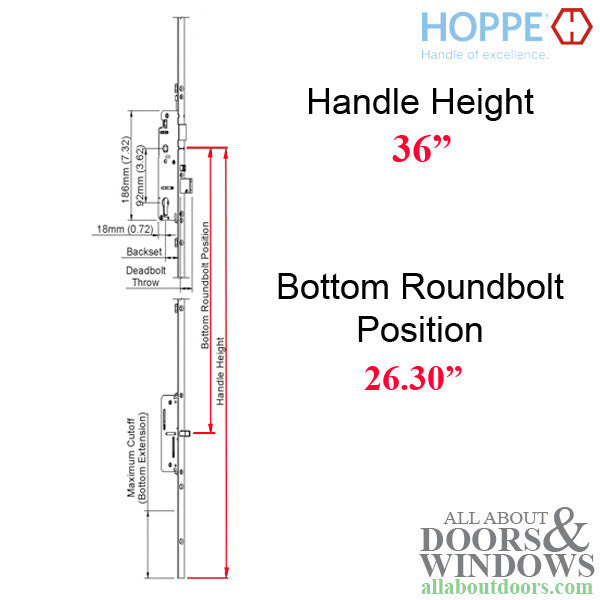

  • Handle Height: 36" (914mm)
  • Bottom Roundbolt Position: 26.30" (668mm)
  • Maximum Cutoff: 5.51" (140mm)
  • Number of Screws: 5
  • Manual version, bottom gear only
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

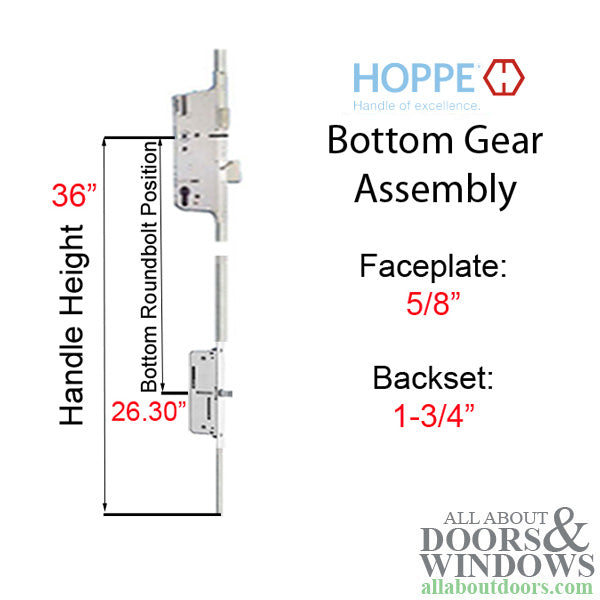

Hoppe HLS9000 Bottom Gear – 45mm, Manual (8778139)

This Hoppe HLS9000 multipoint lock bottom gear is the manual version designed for multipoint door systems. It features a 1-3/4 inch (45mm) backset and a 5/8 inch (16mm) faceplate width, making it compatible with standard Hoppe HLS9000 lock configurations.

The bottom gear includes a 1 inch (25.4mm) deadbolt throw for secure locking engagement. With a handle height of 36 inches (914mm) and a bottom roundbolt position at 26.30 inches (668mm), this component is engineered for precise alignment with your existing door hardware.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Roundbolt Position: 26.30 inches (668mm)
  • Maximum Cutoff: 5.51 inches (140mm)
  • Number of Screws: 5
  • Version: Manual

Notes

  • This is the bottom gear component only, not a complete lock system

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between manual and automatic multipoint lock versions?

Manual versions require you to lift the handle to engage all locking points, while automatic versions engage the locking points when the door closes without lifting the handle.

Is this a complete multipoint lock system?

No, this is the bottom gear component only. You will need additional components such as the main lock body and upper extensions to complete the system.

How do I measure the handle height on my door?

Measure from the bottom of the faceplate to the center of the handle spindle hole. This lock has a 36 inch handle height.
