Atrium Multipoint Lock Replacement Kit – 45mm Backset, 92mm PZ, 16mm Faceplate

SKU: 4990315-KIT

$529.31 - $529.31

$529.31

$529.31 - $529.31

$529.31

Backset: 45mm (1-3/4")
PZ (Handle Spacing): 92mm (3-5/8")
Faceplate Width: 16mm (5/8")

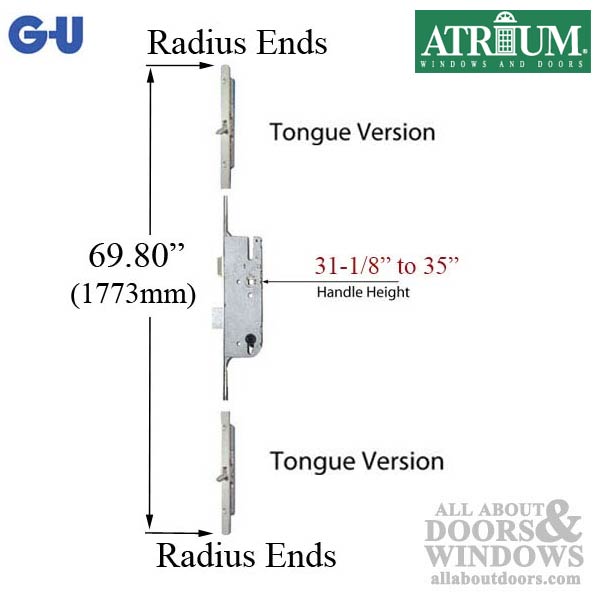

Overall Length: 69-3/4" (1771.7mm)
Handle Height: 31-1/8" to 35" (790.6mm to 889mm)
Top Tongue Position: 32-5/8" (828.7mm) above handle
Bottom Tongue Position: 26-3/4" (679.5mm) below handle
Faceplate Ends: Radius / Rounded
Cylinder Type: Standard American 5-pin with flat tailpiece
3-point locking system with two tongue latches and deadbolt
All locking points engaged by lifting the handle
Requires minor modifications for installation
Priced and sold as a package

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Atrium Multipoint Lock Replacement Kit – 45/92 (4990315-KIT)

This multipoint lock replacement kit is designed to replace discontinued G-U Tripact tongue version locks on Atrium doors. The kit includes a complete 3-point locking system featuring two tongue latches and a deadbolt, all engaged by lifting the handle.

Please note this is NOT a direct replacement for the original Atrium door lock. Minor modifications are required for installation. The deadbolt and spring latch strike plates may need to be adjusted on the door jamb. In some cases, you may need to chisel out a small portion of the door jamb to accommodate the deadbolt and spring latch.

Technical Information

Overall Length: 69-3/4 inches (1771.7mm)
Backset: 45mm (1-3/4 inches)
Handle Height: 31-1/8 inches to 35 inches (790.6mm to 889mm)
Handle Spacing (PZ): 92mm (3-5/8 inches)
Top Tongue Position: 32-5/8 inches (828.7mm) above handle
Bottom Tongue Position: 26-3/4 inches (679.5mm) below handle
Faceplate Width: 16mm (5/8 inch)
Faceplate Ends: Radius / Rounded
Cylinder Type: Standard American 5-pin with flat tailpiece
Top of Spring Latch to Bottom of Deadbolt: 4-1/2 inches (114.3mm)

Notes

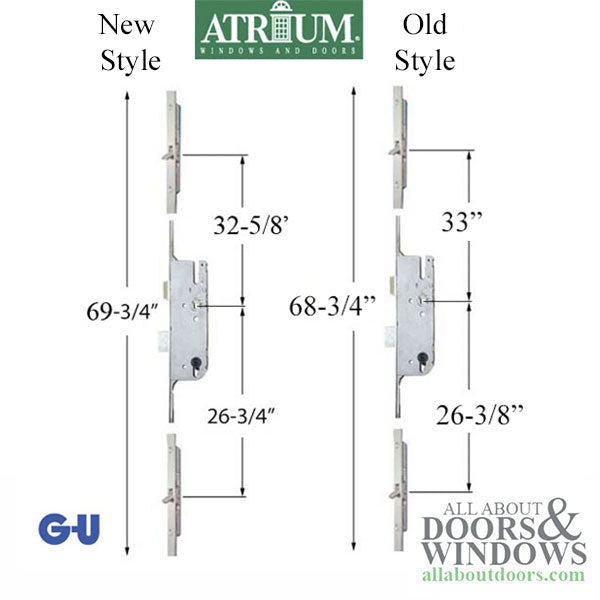

This replacement was developed specifically for the discontinued G-U Tripact tongue version lock and may not work as a replacement for other locks

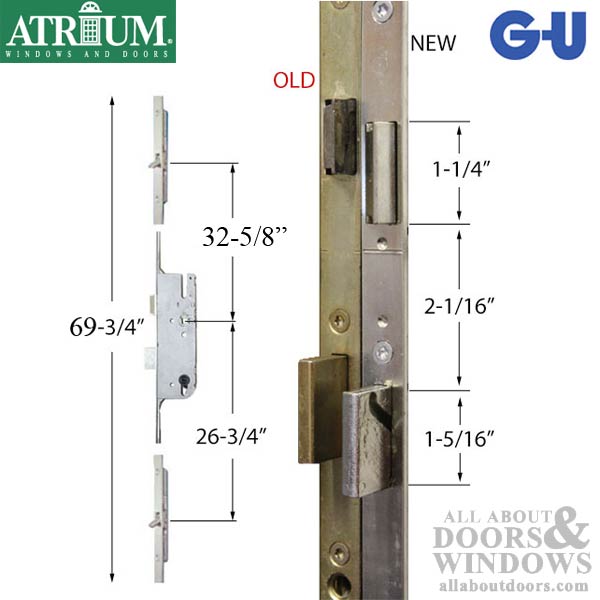

Although measurements are nearly identical to the original, strike plate adjustments may be necessary
The lock can be re-handed using a screwdriver to reverse the latch direction

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this a direct replacement for my Atrium door lock?

No, this is not a direct replacement. Minor modifications are required, including possible adjustments to the strike plates on the door jamb and some chiseling to accommodate the deadbolt and spring latch.

What type of cylinder does this lock use?

This lock uses a standard American 5-pin cylinder with a flat tailpiece.

Can I change the handing on this lock?

Yes, the lock can be rehanded by inserting a screwdriver into the slot, pushing the lever down until it clicks, removing and reversing the latch, then reinstalling it.
