Hoppe Shootbolt/Tongue Multipoint Lock Replacement Kit – 45mm Backset, 92mm PZ

SKU: 4990281-KIT

$315.15 - $315.15

$315.15

$315.15 - $315.15

$315.15

Backset: 45mm (1-3/4")
PZ (Handle Spacing): 92mm (3-5/8")
Faceplate Width: 16mm (5/8")
Handle Height: 36-7/8" (936.6mm)
Bottom Tongue Position: 26-7/16" (671.5mm) below center of handle cylinder
Shootbolts: Located at extreme top and bottom of lock
Overall Length: 76-1/2" to 80-7/16" (1943mm to 2043mm)
Replacement kit for discontinued old-style shootbolt/tongue multipoint locks
Includes 2 shootbolts, 1 tongue latch, and a deadbolt
Bottom tongue strike may need adjustment on door jamb
Top tongue strike will not be used and can be removed

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Shootbolt/Tongue Replacement Kit – 45/92 (4990281-KIT)

This Hoppe replacement kit is designed to replace discontinued old-style shootbolt and tongue multipoint locks with a 45mm backset. The kit provides a straightforward solution for updating your door hardware without extensive modifications.

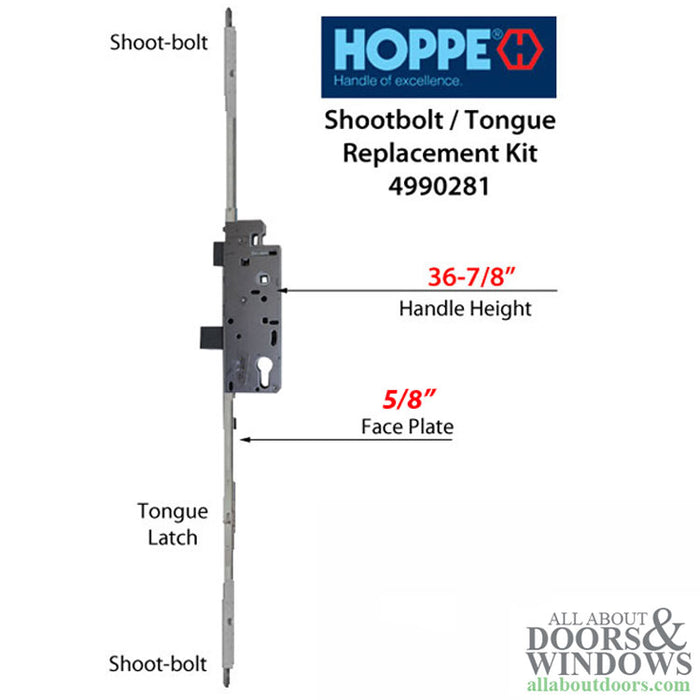

The replacement kit includes 2 shootbolts positioned at the extreme top and bottom of the lock, 1 tongue latch located 26-7/16 inches below the center of the handle cylinder, and a deadbolt. This configuration closely matches the original discontinued lock design, making installation significantly easier.

Technical Information

Backset: 45mm (1-3/4 inches)
PZ (Handle Spacing): 92mm (3-5/8 inches)
Faceplate Width: 16mm (5/8 inch)
Handle Height: 36-7/8 inches (936.6mm)
Bottom Tongue Position: 26-7/16 inches below center of handle cylinder
Overall Length: 76-1/2 to 80-7/16 inches (1943mm to 2043mm)
Shootbolt Locations: Extreme top and bottom of lock

Notes

The bottom tongue strike may need to be adjusted on the door jamb
The top tongue strike will not be used and can be removed from the door jamb
Critical measurements closely match the discontinued lock for easier installation

Replaces / Replaced by

Replaces discontinued old-style Hoppe shootbolt/tongue multipoint locks with 45mm backset and 92mm PZ
Original discontinued lock had overall length of 72-1/2 to 80-1/4 inches, top tongue position 29-1/2 inches above handle cylinder center, and bottom tongue position 26-1/4 inches below handle cylinder center

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What modifications are needed to install this replacement kit?

The bottom tongue strike may need to be adjusted on the door jamb, and the top tongue strike will not be used and can be removed from the door jamb.

What is included in this replacement kit?

The kit includes 2 shootbolts (at extreme top and bottom), 1 tongue latch, and a deadbolt.

How do I know if this kit will fit my door?

This kit fits doors with the discontinued old-style Hoppe shootbolt/tongue multipoint lock that has a 45mm backset and 92mm PZ. Measure your existing lock to confirm these specifications.
