Hoppe Shootbolt Multipoint Lock – 45mm Backset, 92mm PZ, 35" Handle Height (Discontinued)

Hoppe Shootbolt Multipoint Lock – 45mm Backset, 92mm PZ, 35" Handle Height (Discontinued)

SKU: 499023599

  • Status: Discontinued – replacement kit available
  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Handle Height: 35" (889mm)
  • Faceplate Width: 16mm (5/8")
  • Overall Length: 79-1/2" to 80-3/4" (2019mm to 2051mm)
  • Locking Points: 2 shootbolts at extreme ends plus deadbolt
  • Original Configuration: Two-piece system
  • Replacement: 4990232 Shootbolt Replacement Kit
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Shootbolt Multipoint Lock – Discontinued (499023599)

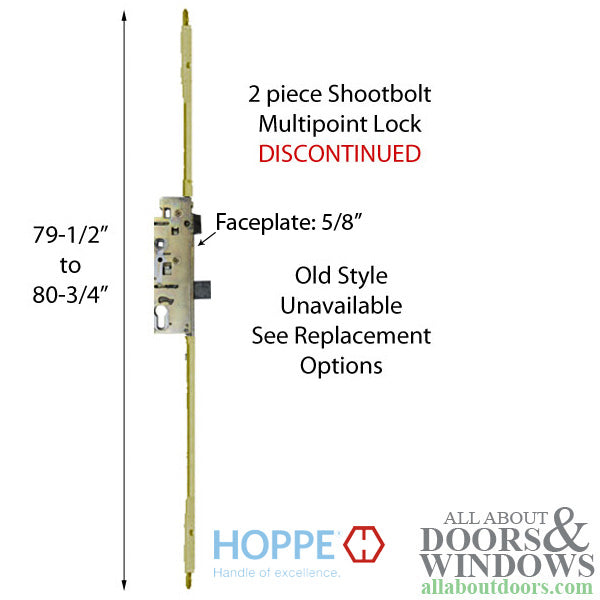

This Hoppe shootbolt multipoint lock is a discontinued two-piece system that is no longer available for purchase. If you have this lock installed, it must be replaced with the available replacement kit.

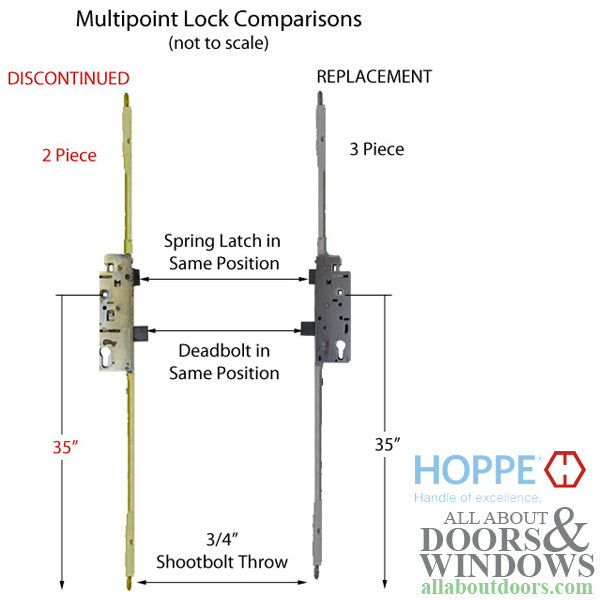

The original lock features two shootbolt locking devices positioned at the extreme ends of the lock body, along with a central deadbolt for secure multi-point engagement. This configuration was designed for doors requiring robust security at multiple points along the door edge.

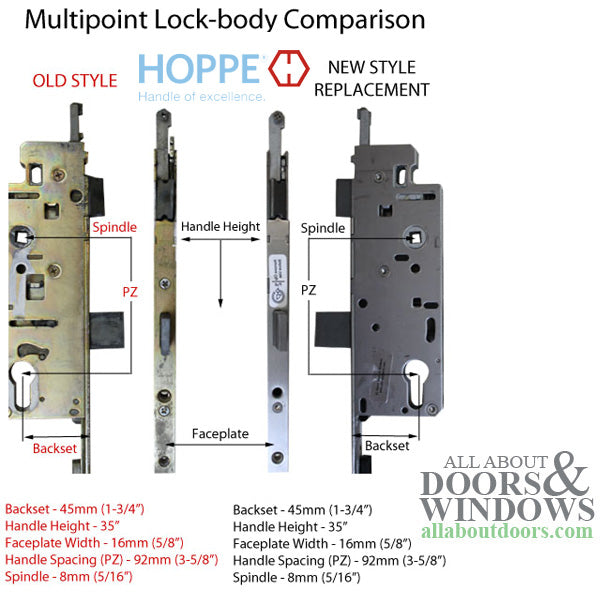

Technical Information

  • Overall Length: 79-1/2 to 80-3/4 inches (2019mm to 2051mm) – lengths may vary
  • Backset: 45mm (1-3/4 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Handle Height: 35 inches (889mm)
  • Handle Spacing (PZ): 92mm (3-5/8 inches)
  • Locking Configuration: 2 shootbolts plus deadbolt
  • System Type: Two-piece (discontinued)

Notes

  • This is a discontinued item and cannot be purchased
  • Please check your measurements carefully to ensure you have the correct replacement
  • The lock can be rehanded – see Hoppe resources for instructions

Replaces / Replaced by

  • 4990232 - Shootbolt Replacement Kit (replacement for this discontinued lock)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for this discontinued Hoppe shootbolt lock?

The replacement is the 4990232 Shootbolt Replacement Kit. Please verify your measurements match before ordering.

Can the handing be changed on Hoppe multipoint locks?

Yes, Hoppe multipoint locks can be rehanded. Refer to Hoppe's written article or video guide for detailed instructions on changing the handing.

What does PZ mean on a multipoint lock?

PZ refers to the handle spacing measurement – the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ.
