Hoppe 3-Point Multipoint Lock – 45mm Backset, 92mm PZ, 35" Handle Height (Discontinued)

Hoppe 3-Point Multipoint Lock – 45mm Backset, 92mm PZ, 35" Handle Height (Discontinued)

SKU: 499023399

  • Status: Discontinued – replacement kit available
  • Backset: 45mm (1-3/4")
  • PZ (Handle Spacing): 92mm (3-5/8")
  • Handle Height: 35" (889mm)
  • Overall Length: 92-1/2" (2349.5mm)
  • Faceplate Width: 16mm (5/8")
  • Handle Spindle: 7mm (1/4")
  • Lock Type: 3-point multipoint lock with top and bottom shootbolts
  • Replacement: 4990233 – 3-point Shootbolt Replacement Kit
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe 3-Point Multipoint Lock – 45/92 (499023399)

This product has been discontinued. A replacement kit is available – please see details below.

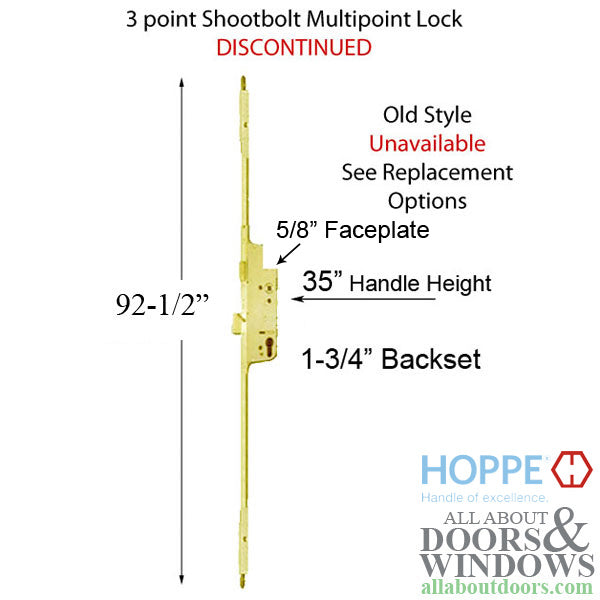

This Hoppe 3-point multipoint lock features shootbolts at the extreme top and bottom of the lock assembly. It was designed for multipoint door systems with a 45mm backset and 92mm PZ (handle spacing).

Technical Information

  • Overall Length: 92-1/2 inches (2349.5mm)
  • Backset: 45mm (1-3/4 inches)
  • Handle Height: 35 inches (889mm)
  • PZ (Handle Spacing): 92mm (3-5/8 inches)
  • Handle Spindle: 7mm (1/4 inch)
  • Faceplate Width: 16mm (5/8 inch)
  • Lock Type: 3-point with shootbolts

Replaces / Replaced by

  • 4990233 – 3-point Shootbolt Replacement Kit (available in Stainless Steel)

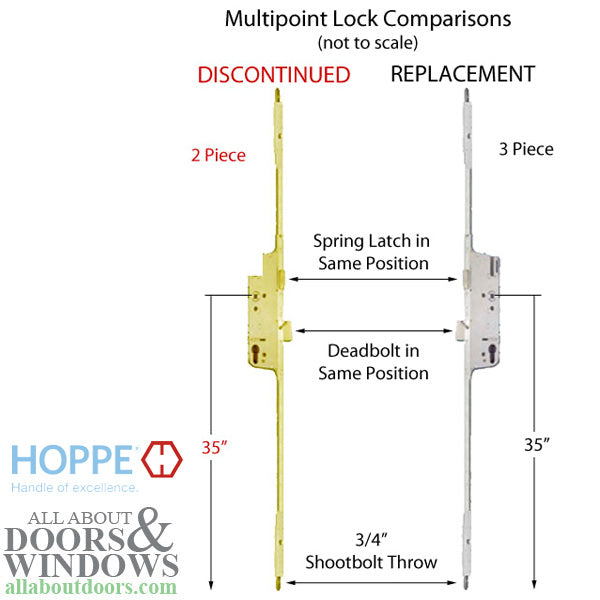

The replacement lock kit is very similar to this discontinued lock. It features two shootbolts and a deadbolt, and will fit doors up to 94-1/4 inches. The spring latch and deadbolt are in the exact same position as the original, so your existing strike plates will work.

The replacement kit includes: gear/lock-body, middle extension, top shootbolt extension, cover plate, and 15 stainless steel screws.

Notes

  • Handing can be changed – see Hoppe resources for instructions
  • Mishandling device direction can also be adjusted

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for this discontinued Hoppe multipoint lock?

The replacement is the 4990233 – 3-point Shootbolt Replacement Kit. It fits doors up to 94-1/4 inches and uses your existing strike plates.

Can I change the handing on this Hoppe multipoint lock?

Yes, Hoppe multipoint locks can be rehanded. Refer to Hoppe's written article or video guide for step-by-step instructions.

What does PZ mean on a multipoint lock?

PZ refers to the handle spacing – the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ.
