Hoppe Fuhr Multipoint Lock Replacement Kit – 35mm Backset, 92mm PZ

SKU: 4990215-KIT

$272.49 - $272.49

$272.49

$272.49 - $272.49

$272.49

Backset: 1-3/8" (35mm)
PZ: 92mm
Faceplate Width: 3/4" (20mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Bottom Tongue Position: 24.41" (620mm)
Top Tongue Position: 29.25" (743mm)
Replacement kit for Fuhr multipoint locks with hooks
Includes gear and extension with 2 locking points
Tongue latch is 5/16" wide (tapered)
Requires minor modifications for installation
Original lock must be cut to length with hacksaw
Sold as a kit

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

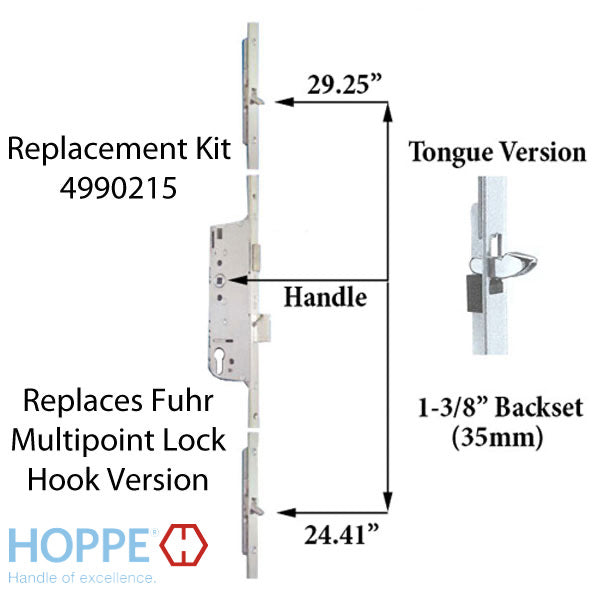

Hoppe Fuhr Replacement Kit – 35mm Backset (4990215-KIT)

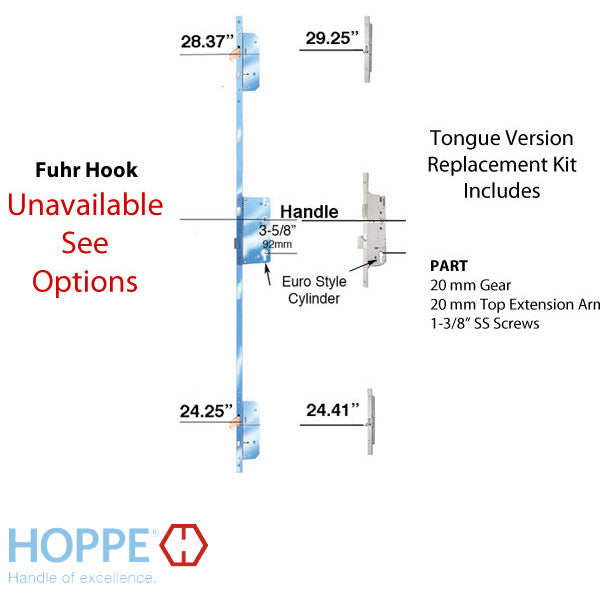

This Hoppe replacement kit is designed to replace Fuhr multipoint locks with hooks (model 499016099). The kit includes a multipoint lock tongue version gear and extension with 2 locking points, providing a reliable solution when your original Fuhr lock needs replacement.

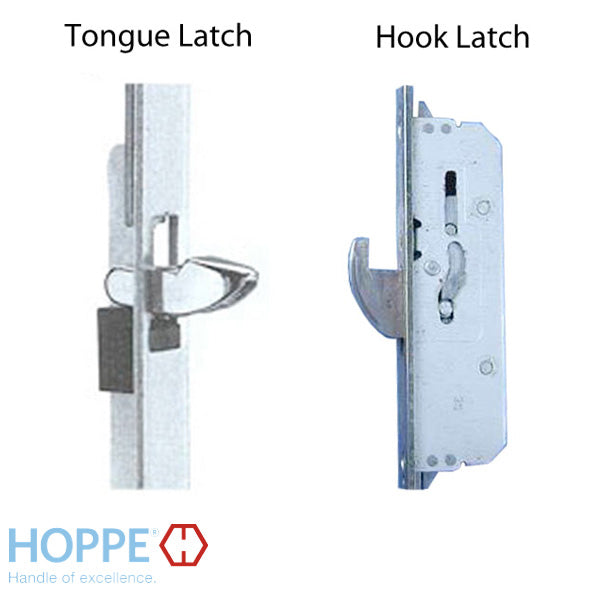

The replacement matches up within 7/8 inch on the top hook and 3/16 inch on the bottom hook compared to the original Fuhr lock. While the original Fuhr hook latch was 1/4 inch wide, the replacement tongue latch is 5/16 inch wide. Both latch styles are tapered for smooth operation.

Technical Information

Backset: 1.38 inches (35mm)
Faceplate Width: 3/4 inch (20mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914mm)
Bottom Tongue Position: 24.41 inches (620mm)
Bottom Maximum Cutoff: 6.30 inches (160mm)
Top Tongue Position: 29.25 inches (743mm)
Top Maximum Cutoff: 7.67 inches (195mm)

Notes

The original Fuhr lock was approximately 64-3/16 inches in length with radius corners
The Fuhr lock did not extend from top to bottom of the door
The replacement will need to be cut to length with a hacksaw
Corners must be rounded off or the door mortise modified to fit the square cut
For taller doors requiring a longer lock, contact our office
A higher tongue position option at 37.20 inches up from handle is available for doors from 79.13 inches to 92.52 inches in height
Higher tongue position option requires a mortise for longer extension and additional strike plate

Replaces / Replaced by

Replaces Fuhr Multipoint Lock with Hooks (499016099)

Sold as a kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What modifications are needed to install this replacement kit?

The replacement lock needs to be cut to length with a hacksaw, and you'll need to either round off the corners or modify the door mortise to fit the square cut ends.

Will this kit work on taller doors?

For doors taller than standard, contact our office. A higher tongue position option at 37.20 inches is available for doors from 79.13 to 92.52 inches in height, which requires an additional mortise and strike plate.

How does the replacement latch compare to the original Fuhr latch?

The original Fuhr hook latch was 1/4 inch wide, while the replacement tongue latch is 5/16 inch wide. Both styles are tapered for smooth operation.
