Hoppe Roller Multipoint Lock Replacement Kit – 45mm Backset, 92mm PZ

Hoppe Roller Multipoint Lock Replacement Kit – 45mm Backset, 92mm PZ

SKU: 4990203-KIT

$272.49 - $272.49
$272.49
$272.49 - $272.49
$272.49
  • Backset: 1-3/4" (45mm)
  • PZ (Handle Spacing): 3-5/8" (92mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1/2" (14mm)
  • Handle Height: 36" (914.4mm)

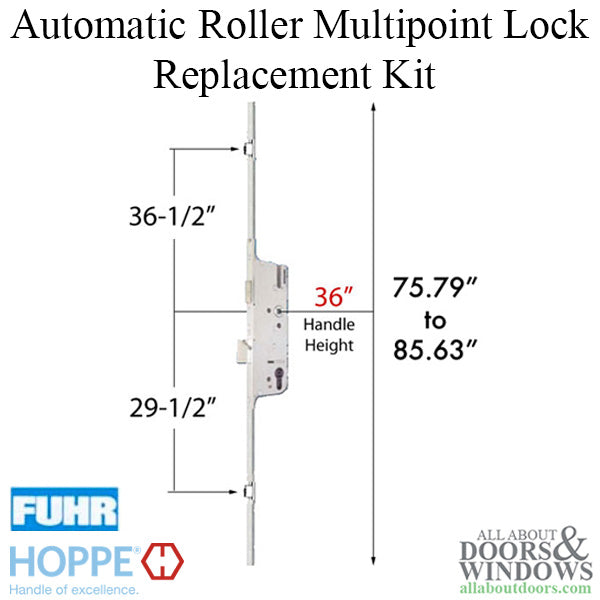

  • Overall Length: 75.79" to 85.63" (1925mm to 2175mm)
  • Bottom Roller Position: 29-1/2" (749.3mm) down from center of handle cylinder
  • Top Roller Position: 36-1/2" (927.1mm) up from center of handle cylinder
  • Complete replacement kit includes lock body/gear box, top extension, and stainless steel screws
  • Features two locking rollers with manual operation
  • Lock will need to be trimmed at top to fit door height
  • Existing strike plates should work but may need adjustment
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Roller Multipoint Lock Kit – 45/92 (4990203-KIT)

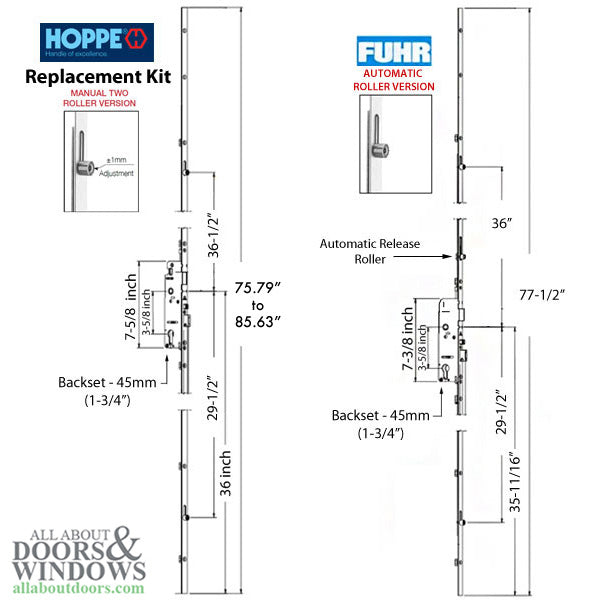

This complete multipoint lock replacement kit is designed to replace the discontinued FUHR automatic roller multipoint lock (part #499010499). The kit converts your door from an automatic roller system to a manually operated roller multipoint lock featuring two locking rollers for secure door engagement.

The replacement kit includes everything needed for installation: the lock body/gear box, top extension, and stainless steel screws. The overall length ranges from 75.79 inches to 85.63 inches, accommodating various door heights. Note that the lock will need to be trimmed at the top to match your specific door height.

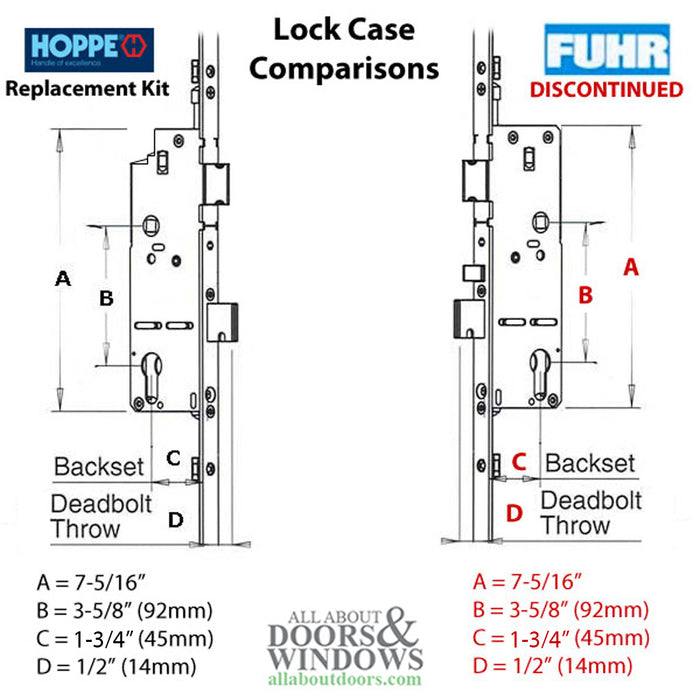

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle Spacing): 3-5/8 inches (92mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1/2 inch (14mm)
  • Handle Height: 36 inches (914.4mm)
  • Overall Length: 75.79 inches to 85.63 inches (1925mm to 2175mm)
  • Bottom Roller Position: 29-1/2 inches (749.3mm) down from center of handle cylinder
  • Top Roller Position: 36-1/2 inches (927.1mm) up from center of handle cylinder

Notes

  • Preexisting strike plates should work with this replacement kit but may need adjustment on the door jamb
  • Lock must be trimmed at top to match door height

Replaces / Replaced by

  • Replaces discontinued FUHR automatic roller multipoint lock (part #499010499)

Additional Resources

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will my existing strike plates work with this replacement kit?

Yes, your preexisting strike plates should work with this replacement kit, but they may need to be adjusted on the door jamb for proper alignment.

Do I need to modify the lock to fit my door?

Yes, the lock will need to be trimmed at the top to match your specific door height. The overall length ranges from 75.79 inches to 85.63 inches to accommodate various door sizes.

What is the difference between this kit and the original FUHR lock?

This Hoppe replacement kit converts your door from an automatic roller system to a manually operated roller multipoint lock while maintaining the same two-roller locking configuration.
