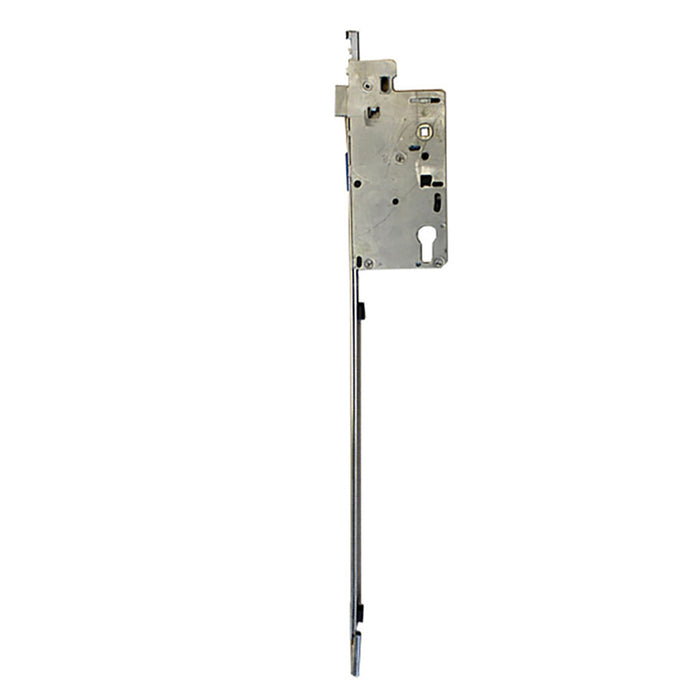

Hoppe Active Bottom Shootbolt Gear – 70mm Backset, Adjustable Handle Height

Hoppe Active Bottom Shootbolt Gear – 70mm Backset, Adjustable Handle Height

SKU: 3897909

$198.58 - $198.58
$198.58
$198.58 - $198.58
$198.58
  • Backset: 2-3/4" (70mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25mm)
  • Function: Active Gear with Shootbolt
  • 2-piece bottom shootbolt gear with adjustable handle height
  • Does NOT include top or bottom shootbolt extensions
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Bottom Shootbolt Gear – 70mm Backset (3897909)

This Hoppe 2-piece bottom shootbolt gear features adjustable handle height and is designed for active multipoint door applications. The gear provides reliable shootbolt operation with a 1-inch deadbolt throw for secure locking.

This is the gear mechanism only and does NOT include the top or bottom shootbolt extensions. To achieve your desired handle height, use the top extension from the inactive gear page along with the appropriate lower shootbolt extension.

Technical Information

  • Backset: 2-3/4 inches (70mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Deadbolt Throw: 1 inch (25mm)
  • Function: Active Gear - Shootbolt
  • Configuration: 2-piece with adjustable handle height

Related Parts

  • 8786975 - Lower Shootbolt Extension (most common, 34.25"-38.19" handle heights)
  • 3761139 - Inactive Gear, 70mm Backset
  • 3664566 - Active Gear, 35mm Backset
  • 2139436 - Inactive Gear, 35mm Backset
  • 3664558 - Active Gear, 45mm Backset
  • 2099201 - Inactive Gear, 45mm Backset
  • 3693113 - Active Gear, 60mm Backset
  • 3403999 - Inactive Gear, 60mm Backset

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this shootbolt gear include the extensions?

No, this is the gear mechanism only. You will need to purchase the top and bottom shootbolt extensions separately to complete the assembly.

How do I achieve my desired handle height?

Use the top extension from the inactive gear page along with the appropriate lower shootbolt extension (such as 8786975 for 34.25"-38.19" handle heights) to achieve your desired handle height.

What is the difference between active and inactive gears?

Active gears are used on the door leaf that contains the handle and operates the locking mechanism. Inactive gears are used on the stationary leaf of double doors.
