Hoppe Active Swing Hook Bottom Gear – 60mm Backset, 92mm PZ, 36" Handle Height

SKU: 3868884

$297.57 - $297.57

$297.57

$297.57 - $297.57

$297.57

PZ: 92mm
Backset: 2-3/8" (60mm)
Handle Height: 36" (914mm)
Bottom Swing Hook Position: 29.65" (753mm)
Deadbolt Throw: 1" (25.4mm)
Maximum Cutoff: 1-1/8" (30mm)
Number of Screws: 5
Bottom gear assembly with swing hook attached
Used with top hook extension to complete a 3-point lock

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Active Swing Hook Bottom Gear – 60/92 (3868884)

This Hoppe multipoint lock bottom gear assembly features an integrated swing hook for secure door engagement. Designed with a 60mm backset and 92mm PZ, this component serves as the foundation of a 3-point locking system when paired with a compatible top hook extension.

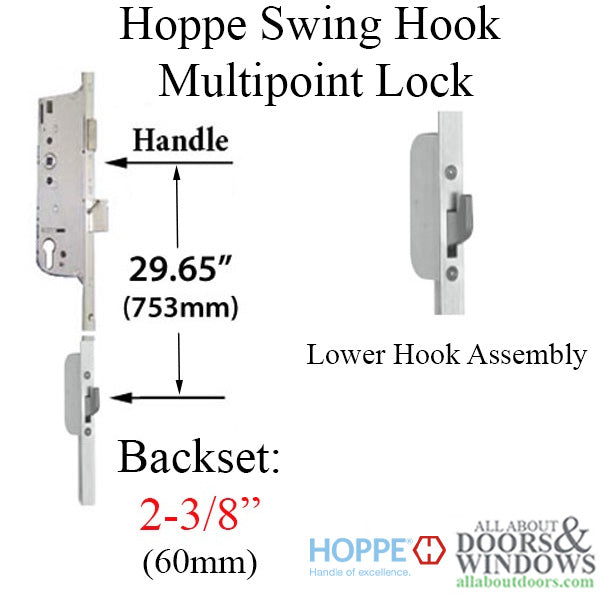

The swing hook is positioned at 29.65 inches (753mm) from the handle center, with a handle height of 36 inches (914mm). The deadbolt provides a 1-inch (25.4mm) throw for reliable security. This gear can be trimmed with a maximum cutoff of 1-1/8 inches (30mm) to accommodate various door configurations.

Technical Information

Original Manufacturer SKU: M/60/25 914 SW1 753 16S 3016mm
PZ: 92mm
Backset: 60mm (2-3/8 inches)
Handle Height: 914mm (36 inches)
Bottom Swing Hook Position: 753mm (29.65 inches)
Deadbolt Throw: 25.4mm (1 inch)
Maximum Cutoff: 30mm (1-1/8 inches)
Number of Screws: 5

Related Parts

Alternative Backset Bottom Gears (Hook at 29.65 inches):
- 3868868 - 35/92 (35mm backset)
- 3868876 - 45/92 (45mm backset)
- 3868884 - 60/92 (60mm backset)
- 3868892 - 70/92 (70mm backset)
Special Size Bottom Gear: 3814341 - Hook at 25.7 inches / 41.11 inches handle height
Compatible Top Extensions:
- 3868770 - Doors 62.80-79.25 inches, hook at 19.69 inches
- 3868796 - Doors 78.54-79.25 inches, hook at 35.43 inches
- 3868809 - Doors 78.54-92.24 inches, hook at 35.43 inches
- 3868817 - Doors 78.54-92.24 inches, hooks at 19.69 inches and 35.43 inches
- 3868825 - Doors 90.08-106.30 inches, hooks at 23.62 inches and 46.97 inches
- 3868833 - Doors 102.17-126.97 inches, hooks at 23.62 inches and 59.05 inches

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What top extension do I need for this bottom gear?

The compatible top extension depends on your door height. Options range from 3868770 for doors 62.80-79.25 inches to 3868833 for doors 102.17-126.97 inches. Check the related parts list for the correct match.

Can this bottom gear be trimmed to fit my door?

Yes, this gear can be trimmed with a maximum cutoff of 1-1/8 inches (30mm) to accommodate your door configuration.

What does 60/92 mean on this lock?

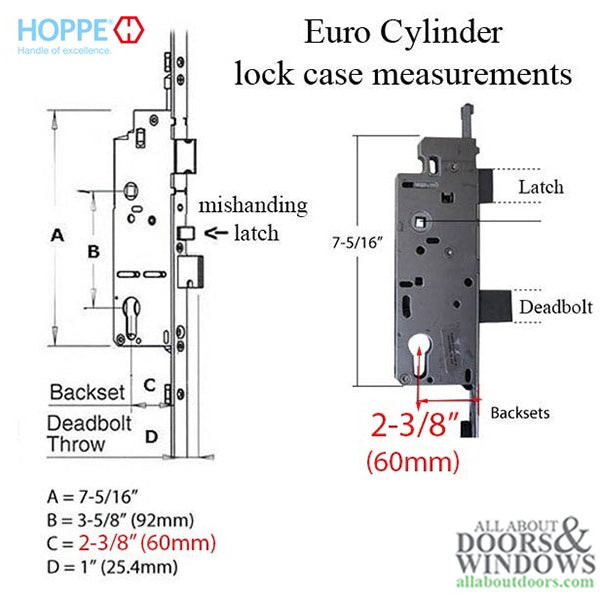

The 60/92 refers to the backset (60mm) and PZ measurement (92mm). The backset is the distance from the door edge to the handle center, and PZ is the distance from the handle center to the cylinder center.
