Hoppe Active Swing Hook Bottom Gear – 35mm Backset, 92mm PZ, 36" Handle Height

SKU: 3868868

$238.06 - $238.06

$238.06

$238.06 - $238.06

$238.06

Backset: 1-3/8" (35mm)
PZ: 92mm
Handle Height: 36" (914mm)
Bottom Swing Hook Position: 26.65" (753mm)
Deadbolt Throw: 1" (25.4mm)
Maximum Cutoff: 1-1/8" (30mm)
Number of Screws: 5
Bottom gear assembly with swing hook attached
Used with top hook extension to complete a 3-point lock

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Active Swing Hook Bottom Gear – 35/92 (3868868)

This Hoppe M/35/25 914 SW1 753 16S active swing hook is a bottom gear assembly designed for multipoint locking systems. It features a 1-3/8 inch (35mm) backset and 92mm PZ measurement, making it compatible with standard Hoppe multipoint configurations.

The bottom gear comes with the swing hook already attached, positioned at 26.65 inches (753mm) from the handle center. The handle height measures 36 inches (914mm), and the deadbolt throw is 1 inch (25.4mm). This assembly requires a top hook extension to complete a functional 3-point locking system.

Technical Information

Backset: 1-3/8 inches (35mm)
PZ: 92mm
Handle Height: 36 inches (914mm)
Bottom Swing Hook Position: 26.65 inches (753mm)
Deadbolt Throw: 1 inch (25.4mm)
Maximum Cutoff: 1-1/8 inches (30mm)
Number of Screws: 5

Related Parts

Alternative Bottom Gears (Hook at 29.65 inches):
- 3868868 - 35/92 / 1-3/8 inch (35mm) Backset
- 3868876 - 45/92 / 1-3/4 inch (45mm) Backset
- 3868884 - 60/92 / 2-3/8 inch (60mm) Backset
- 3868892 - 70/92 / 2-3/4 inch (70mm) Backset
Special Size: 3814341 - Hook at 25.7 inches / 41.11 inch Handle Height
Compatible Top Extensions:
- 3868770 - Doors 62.80-79.25 inches, hook at 19.69 inches
- 3868796 - Doors 78.54-79.25 inches, hook at 35.43 inches
- 3868809 - Doors 78.54-92.24 inches, hook at 35.43 inches
- 3868817 - Doors 78.54-92.24 inches, hooks at 19.69 inches and 35.43 inches
- 3868825 - Doors 90.08-106.30 inches, hooks at 23.62 inches and 46.97 inches
- 3868833 - Doors 102.17-126.97 inches, hooks at 23.62 inches and 59.05 inches

Notes

To better understand multipoint lock terminology, see our Multipoint Lock Glossary Of Terms
For detailed assistance, fill out the HOPPE Worksheet for your lock and send it to us

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What top extension do I need with this bottom gear?

The required top extension depends on your door height. Options range from 3868770 for doors 62.80-79.25 inches to 3868833 for doors 102.17-126.97 inches. Check the related parts list to match your door size.

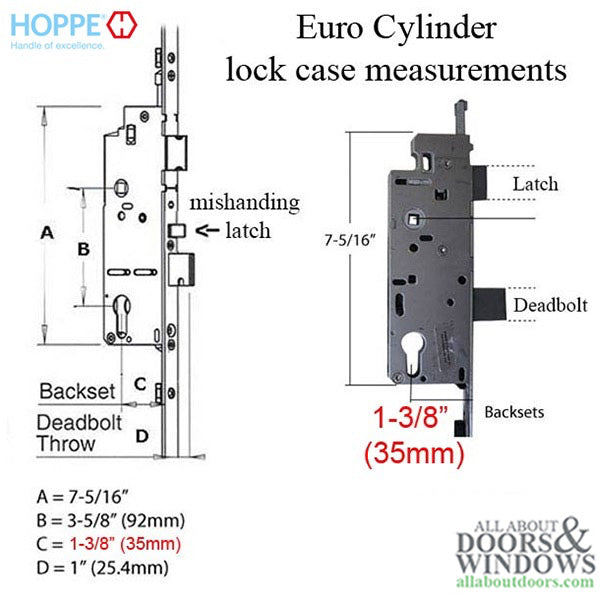

What does the 35/92 measurement mean?

The 35/92 refers to the backset (35mm) and PZ measurement (92mm). The backset is the distance from the door edge to the handle center, and the PZ is the distance from the handle center to the cylinder center.

Can this bottom gear be trimmed to fit my door?

Yes, the maximum cutoff is 1-1/8 inches (30mm). For guidance on trimming, refer to the Hoppe resources on how to trim a multipoint lock.
