Hoppe HLS9000 Top Extension with Dual Swing Hooks – 16mm Faceplate, 54.65" Length

SKU: 3868817

$186.18 - $186.18

$186.18

$186.18 - $186.18

$186.18

Locking Type: 2 swing hooks
1st Top Hook Position: 19.69" (500mm)
2nd Top Hook Position: 35.43" (900mm)
Hook Projection: 3/4" (19.5mm)
Faceplate Width: 5/8" (16mm)
Overall Extension Length: 54.65" (1388mm)
Handle to Top of Door: 56.26" (1429mm)
Maximum Cutoff: 13.7" (348mm)
Application: Doors 78.54"-92.24" with 36" handle height
Finish: Stainless steel
Number of Screws: 8

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Top Extension – Dual Swing Hooks (3868817)

This Hoppe 16mm HLS9000 manual top extension features two swing hooks for enhanced security on taller multipoint door systems. Designed for doors measuring 78.54 to 92.24 inches in height with a 36-inch handle height, this extension provides reliable top locking engagement at two positions.

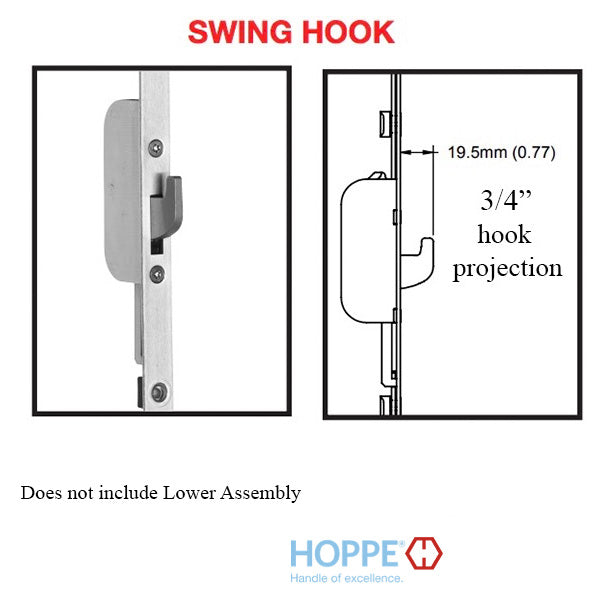

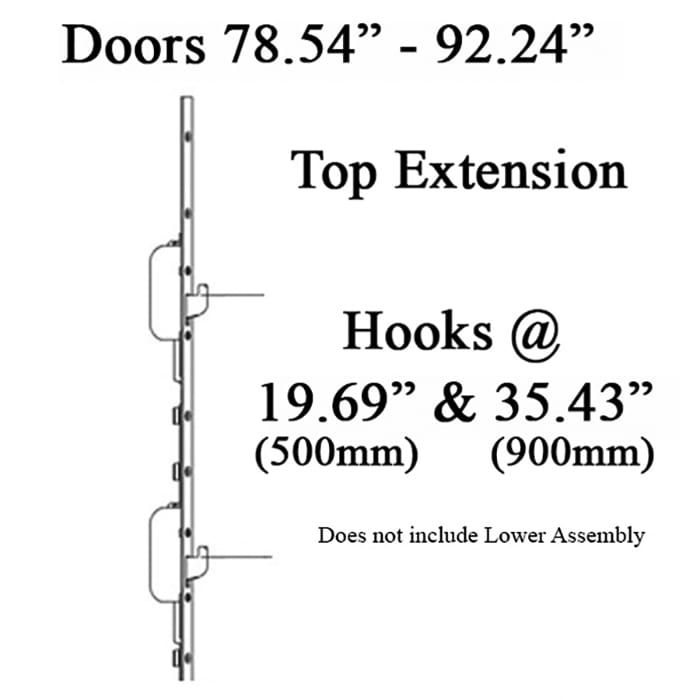

The first swing hook engages at 19.69 inches (500mm) from the gear, while the second hook engages at 35.43 inches (900mm). Both hooks feature a square end design with a 3/4-inch (19.5mm) projection for secure engagement with the strike plate. The stainless steel construction ensures long-lasting durability and corrosion resistance.

With an overall length of 54.65 inches (1388mm) and a maximum cutoff allowance of 13.7 inches (348mm), this extension can be trimmed to fit your specific door requirements. The 5/8-inch (16mm) faceplate width matches standard Hoppe HLS9000 multipoint lock systems.

Technical Information

Locking Type: 2 swing hooks
1st Top Hook Position: 19.69 inches (500mm)
2nd Top Hook Position: 35.43 inches (900mm)
Hook Projection: 3/4 inch (19.5mm)
Faceplate Width: 5/8 inch (16mm)
Overall Extension Length: 54.65 inches (1388mm)
Handle to Top of Door: 56.26 inches (1429mm)
Maximum Cutoff: 13.7 inches (348mm)
Number of Screws: 8
Finish: Stainless steel

Related Parts

3868868 - Bottom Gear, 35mm Backset, 92mm PZ, Hook at 29.65"
3868876 - Bottom Gear, 45mm Backset, 92mm PZ, Hook at 29.65"
3868884 - Bottom Gear, 60mm Backset, 92mm PZ, Hook at 29.65"
3868892 - Bottom Gear, 70mm Backset, 92mm PZ, Hook at 29.65"
3814341 - Special Size Bottom Gear, Hook at 25.7", 41.11" Handle Height
3868770 - Top Extension for Doors 62.80"-79.25", Hook at 19.69"
3868796 - Top Extension for Doors 78.54"-79.25", Hook at 35.43"
3868809 - Top Extension for Doors 78.54"-92.24", Hook at 35.43"
3868825 - Top Extension for Doors 90.08"-106.30", Hooks at 23.62" & 46.97"
3868833 - Top Extension for Doors 102.17"-126.97", Hooks at 23.62" & 59.05"

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door heights is this top extension designed for?

This extension is designed for doors measuring 78.54 to 92.24 inches in height with a 36-inch handle height.

Can this extension be trimmed to fit my door?

Yes, this extension has a maximum cutoff allowance of 13.7 inches (348mm), allowing it to be trimmed to fit your specific door requirements.

Where do the swing hooks engage on this extension?

The first swing hook engages at 19.69 inches (500mm) from the gear, and the second hook engages at 35.43 inches (900mm).
