Hoppe Lower Swing Hook and Shootbolt Assembly – 70mm Backset, 16mm Faceplate

SKU: 3868761

$344.18 - $344.18

$344.18

$344.18 - $344.18

$344.18

Backset: 2-3/4" (70mm)
Faceplate Width: 5/8" (16mm)
Handle Height: 36" (914mm)
Bottom Swing Hook Position: 24.41" (620mm)
Deadbolt Throw: 1" (25mm)
Number of Screws: 4
Includes swing hook and shootbolt attached

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

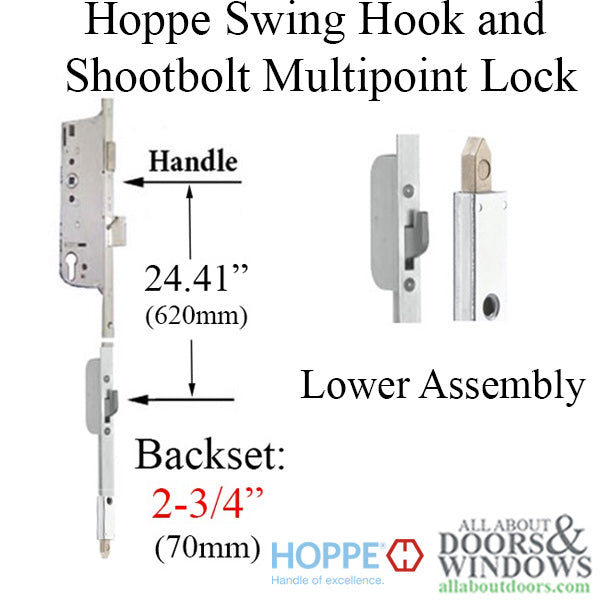

Hoppe Lower Swing Hook + Shootbolt – 70mm Backset (3868761)

This Hoppe 16mm bottom gear assembly features an integrated swing hook and shootbolt for multipoint door locking systems. The assembly provides secure bottom engagement for multipoint locks, working in conjunction with upper extensions and lock bodies to create a complete locking solution.

The unit comes with the shootbolt already attached, simplifying installation. With a 2-3/4 inch (70mm) backset and 36 inch (914mm) handle height, this assembly is designed for specific door configurations requiring bottom swing hook engagement at 24.41 inches (620mm) from the handle center.

Technical Information

Faceplate Width: 5/8 inches (16mm)
Backset: 2-3/4 inches (70mm)
Deadbolt Throw: 1 inch (25mm)
Handle Height: 36 inches (914mm)
Bottom Swing Hook Position: 24.41 inches (620mm)
Number of Screws: 4

Related Parts

3660426 - 2-3/8" Backset, Lower Hook + Shootbolt Assembly
3814747 - 1-3/8" Backset, Lower Hook + Shootbolt Assembly
3622876 - 1-3/4" Backset, Lower Hook + Shootbolt Assembly

For further assistance, please fill out the HOPPE Worksheet for your lock and send it to us. You can also reference our Multipoint Lock Glossary Of Terms for help understanding lock terminology.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

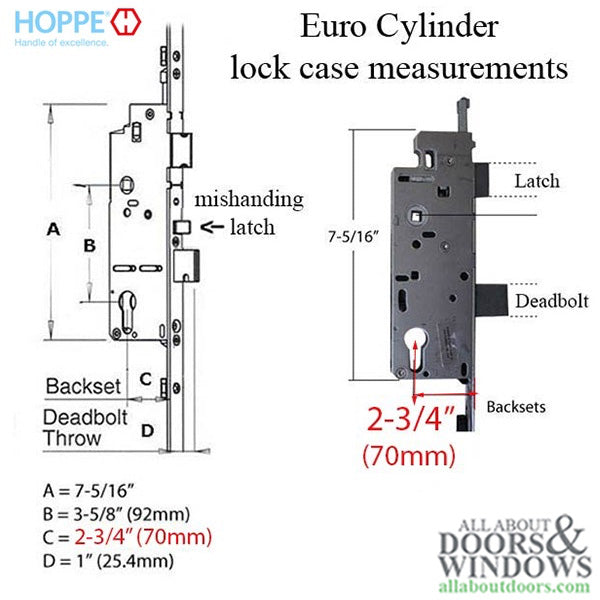

How do I determine which backset I need for my Hoppe multipoint lock?

Measure from the edge of the door to the center of the handle bore hole. This assembly has a 2-3/4 inch (70mm) backset.

Does this assembly come with the shootbolt already attached?

Yes, this bottom gear assembly comes with the shootbolt pre-attached for easier installation.

What is the handle height measurement used for?

The handle height (36 inches) indicates the distance from the bottom of the faceplate to the center of the handle, helping ensure proper alignment with your door's handle bore.
