Hoppe Swing Hook and Shootbolt Bottom Gear Assembly – 35mm Backset, 16mm Faceplate

SKU: 3814747

$275.37 - $275.37

$275.37

$275.37 - $275.37

$275.37

Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 36" (914mm)

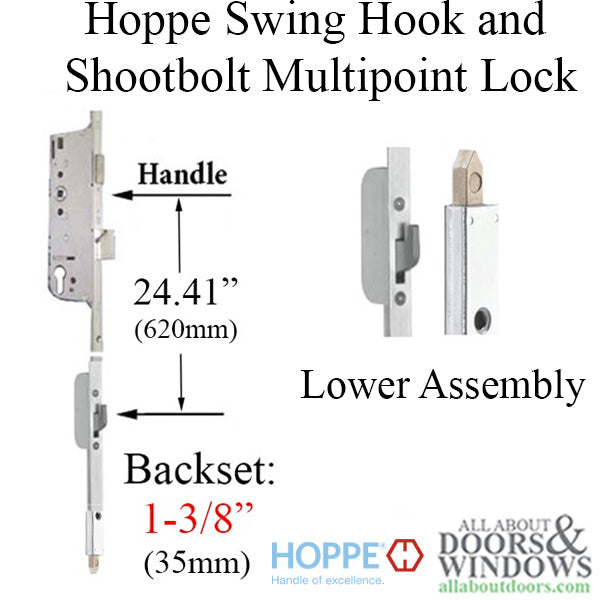

Bottom Swing Hook Position: 24.41" (620mm)
Number of Screws: 4
Includes swing hook and shootbolt attached

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Swing Hook & Shootbolt Bottom Gear – 35mm Backset (3814747)

This Hoppe bottom gear assembly features a swing hook with an attached shootbolt, designed for multipoint lock systems. The assembly provides secure locking engagement at the bottom of the door, working in conjunction with your multipoint lock body and upper extension.

With a 1-3/8 inch (35mm) backset and 5/8 inch (16mm) faceplate width, this bottom gear assembly is built for Hoppe HLS9000 series multipoint lock configurations. The handle height measures 36 inches (914mm) with the bottom swing hook positioned at 24.41 inches (620mm) from the handle center.

Technical Information

Backset: 1-3/8 inches (35mm)
Faceplate Width: 5/8 inches (16mm)
Deadbolt Throw: 1 inch (25mm)
Handle Height: 36 inches (914mm)
Bottom Swing Hook Position: 24.41 inches (620mm)
Number of Screws: 4

Related Parts

3660426 - 2-3/8 inch Backset, Lower Hook + Shootbolt Assembly
3868761 - 2-3/4 inch Backset, Lower Hook + Shootbolt Assembly
3622876 - 1-3/4 inch Backset, Lower Hook + Shootbolt Assembly

Notes

For more information about multipoint lock terminology and components, see our Multipoint Lock Glossary Of Terms.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What backset do I need for my Hoppe multipoint lock?

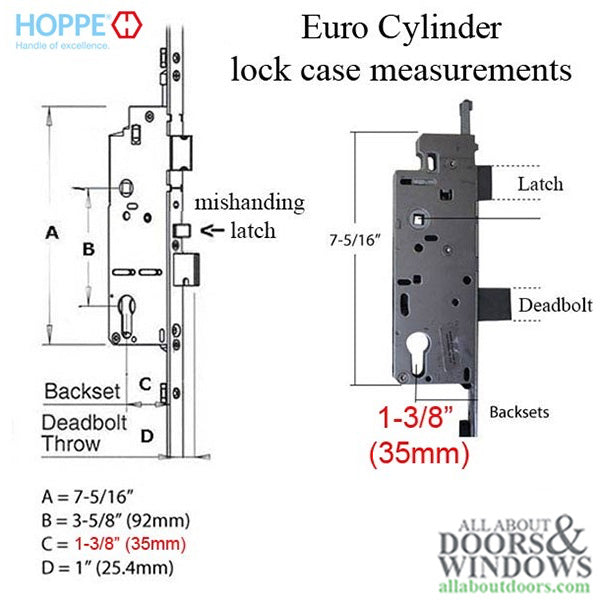

Measure from the edge of the door to the center of the handle bore hole. This assembly has a 1-3/8 inch (35mm) backset. Other backset options are available including 1-3/4 inch, 2-3/8 inch, and 2-3/4 inch.

Can I rehand this Hoppe multipoint lock component?

Yes, Hoppe HLS9000 series components can be rehanded. Refer to the Hoppe rehanding video guide for step-by-step instructions.

What is the difference between a swing hook and a shootbolt?

A swing hook pivots to engage the strike plate for secure locking, while a shootbolt extends straight out into the frame. This assembly includes both for enhanced security.
