Hoppe Active Shootbolt Gear – 35mm Backset, 25mm Throw

SKU: 3664566

$179.53 - $179.53

$179.53

$179.53 - $179.53

$179.53

Function: Active gear with shootbolt
Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Shootbolt Throw: 1" (25mm)
2-piece design with adjustable handle height
Bottom shootbolt NOT included – use top extension from inactive gear page
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Active Shootbolt Gear – 35mm Backset (3664566)

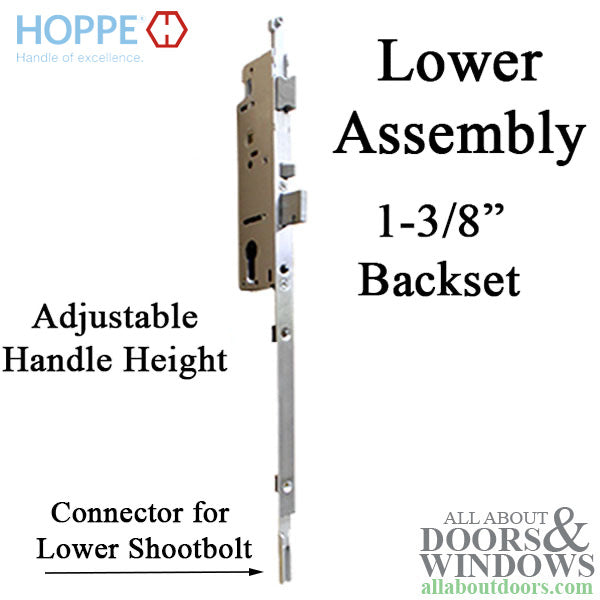

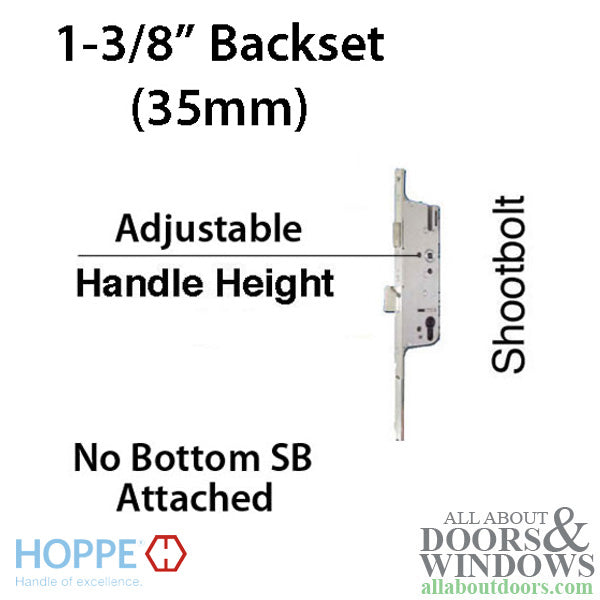

This Hoppe 2-piece bottom shootbolt gear is designed for multipoint lock systems requiring adjustable handle height. The active gear features a 1-3/8 inch (35mm) backset and a 5/8 inch (16mm) faceplate width, making it compatible with standard Hoppe multipoint configurations.

The shootbolt provides a 1 inch (25mm) throw for secure locking engagement. Please note that this gear does NOT include the bottom shootbolt itself. To achieve your desired handle height, you will need to use the top extension from the inactive gear page.

Technical Information

Function: Active Gear with Shootbolt
Backset: 1-3/8 inches (35mm)
Faceplate Width: 5/8 inch (16mm)
Shootbolt Throw: 1 inch (25mm)
Design: 2-piece with adjustable handle height

Notes

Not available in 1/2 inch throw
Bottom shootbolt sold separately

Related Parts

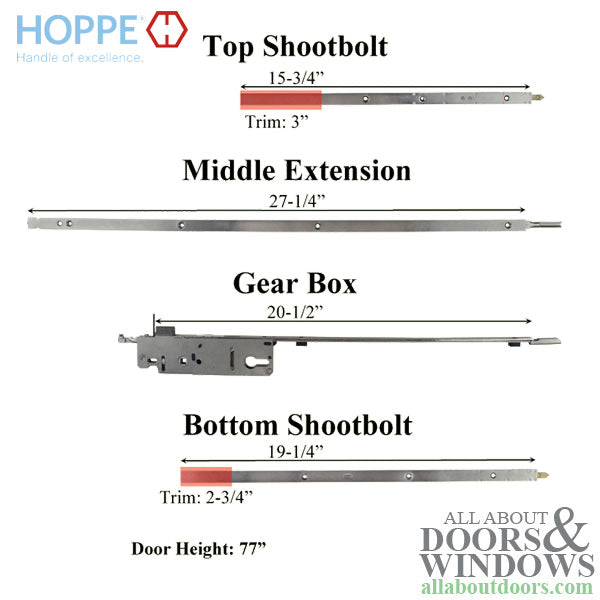

8786975 - Most common lower shootbolt extension (34.25"-38.19" handle heights)
2139436 - Inactive gear, 35mm backset
3664558 - Active gear, 45mm backset
2099201 - Inactive gear, 45mm backset
3693113 - Active gear, 60mm backset
3403999 - Inactive gear, 60mm backset
3897909 - Active gear, 70mm backset
3761139 - Inactive gear, 70mm backset

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this gear include the bottom shootbolt?

No, the bottom shootbolt is sold separately. Use the top extension from the inactive gear page to obtain your desired handle height.

What is the difference between active and inactive gears?

Active gears are used on the side of the door with the operating handle, while inactive gears are used on the opposite side of double doors or as secondary locking points.

How do I measure my backset?

Measure from the edge of the door to the center of the handle bore hole. This gear has a 35mm (1-3/8 inch) backset.
