Hoppe HLS9000 Middle Extension – 16mm Faceplate, Two Swing Hooks, 63.46" Length

Hoppe HLS9000 Middle Extension – 16mm Faceplate, Two Swing Hooks, 63.46" Length

SKU: 3644194

$159.32 - $159.32
$159.32
$159.32 - $159.32
$159.32
  • Type: Middle Extension with Two Swing Hooks
  • Faceplate Width: 5/8" (16mm)
  • Extension Length: 63.46" (1612mm)
  • 1st Top Hook Position: 23.62" (600mm)
  • 2nd Top Hook Position: 59.05" (1500mm)
  • Hook Projection: 3/4" (19.5mm)
  • Hook End Style: Square end
  • Maximum Cutoff: None
  • Number of Screws: 6
  • Finish: Stainless Steel
  • Attaches to lower assembly above springlatch
  • Requires upper shootbolt extension to complete multipoint lock
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Middle Extension – 16mm, Two Swing Hooks (3644194)

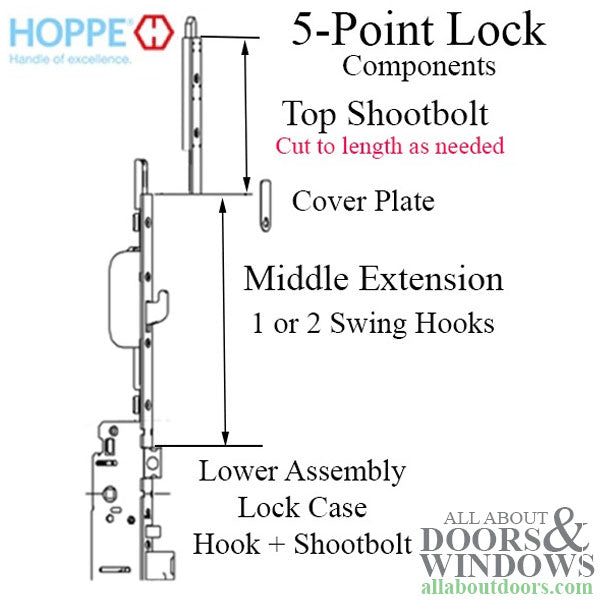

This Hoppe 16mm HLS9000 manual middle extension features two swing hooks and is designed for use in multipoint locking systems. The middle extension connects to the lower assembly just above the springlatch, and a shootbolt extension attaches to the top to complete the multipoint lock configuration.

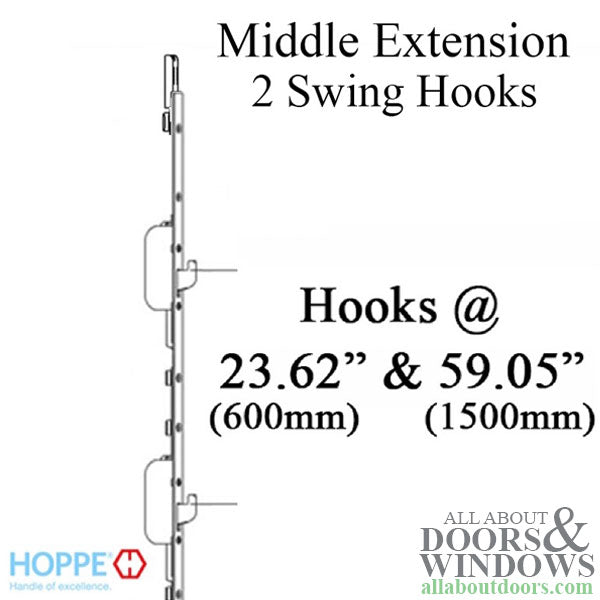

The extension measures 63.46 inches (1612mm) in total length with a 5/8 inch (16mm) faceplate width. The two swing hooks are positioned at 23.62 inches (600mm) and 59.05 inches (1500mm) from the bottom, providing secure multi-point engagement. Each hook has a projection of 3/4 inch (19.5mm) with a square end design.

Technical Information

  • Locking Type: 2 Swing Hooks
  • Faceplate Width: 5/8 inch (16mm)
  • Extension Length: 63.46 inches (1612mm)
  • 1st Top Hook Position: 23.62 inches (600mm)
  • 2nd Top Hook Position: 59.05 inches (1500mm)
  • Hook Projection: 3/4 inch (19.5mm)
  • Hook End Style: Square end
  • Maximum Cutoff: None
  • Number of Screws: 6
  • Finish: Stainless Steel

Notes

  • This is one of 5 middle extensions used with various top extensions to accommodate door panel heights from 73.50 inches (1867mm) minimum to 137.48 inches (3492mm) maximum
  • Requires a shootbolt extension attached to the top to complete the multipoint lock system

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What additional parts do I need with this middle extension?

This middle extension requires a shootbolt extension attached to the top and connects to a lower assembly with springlatch to complete the multipoint lock system.

What door heights does this middle extension accommodate?

When paired with the appropriate top extension, this middle extension works with door panel heights ranging from 73.50 inches (1867mm) to 137.48 inches (3492mm).

Can this extension be cut to size?

No, this extension has no maximum cutoff allowance and should not be cut.
