Hoppe HLS9000 Middle Extension with Swing Hook – 16mm Faceplate, 24.09" Extension

Hoppe HLS9000 Middle Extension with Swing Hook – 16mm Faceplate, 24.09" Extension

SKU: 3622868

$110.66 - $110.66
$110.66
$110.66 - $110.66
$110.66
  • Faceplate Width: 5/8" (16mm)
  • Locking Type: 1 swing hook
  • Hook Position: 19.69" (500mm) from square end
  • Hook Projection: 3/4" (19.5mm)
  • Extension Length: 24.09" (612mm)
  • Overall Length Range: 73.50" (1867mm) to 98.11" (2492mm)
  • Maximum Cutoff: None
  • Screws Included: 4 stainless steel
  • Manual middle extension for HLS9000 multipoint lock systems
  • Used with upper shootbolt extension to complete multipoint lock assembly
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Middle Extension – 16mm, Swing Hook (3622868)

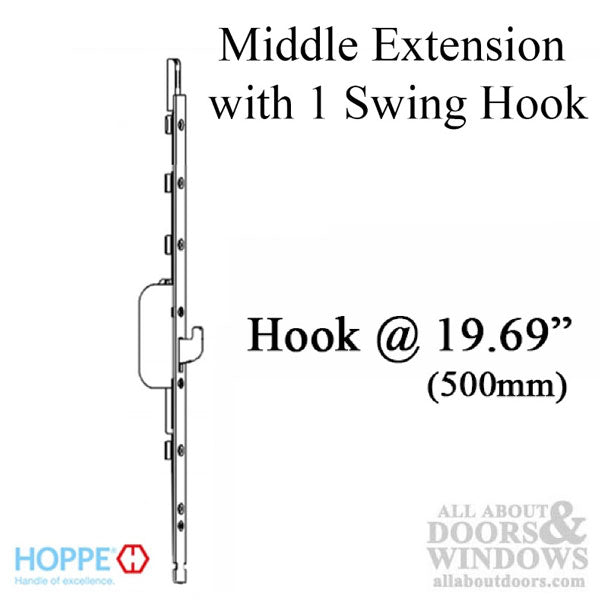

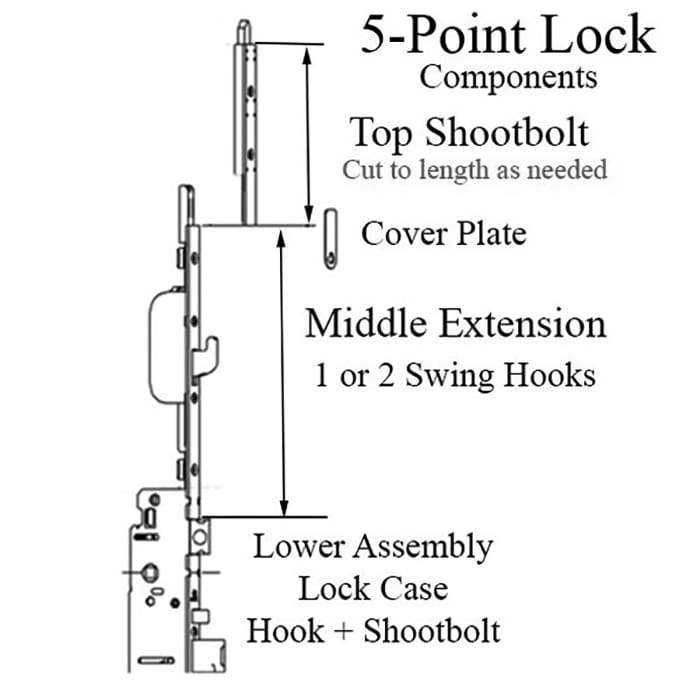

This Hoppe 16mm HLS9000 manual middle extension features a single swing hook and is designed for use with multipoint lock systems. The middle extension attaches to the lower assembly just above the springlatch, and a shootbolt extension connects to the top to complete the multipoint lock configuration.

The extension measures 24.09 inches (612mm) in length with an overall assembled length range from 73.50 inches (1867mm) to a maximum of 98.11 inches (2492mm). The swing hook is positioned 19.69 inches (500mm) from the square end with a hook projection of 3/4 inch (19.5mm). The faceplate width is 5/8 inch (16mm), and four stainless steel screws are included for installation.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Extension Length: 24.09 inches (612mm)
  • Overall Length Range: 73.50 inches (1867mm) to 98.11 inches (2492mm)
  • Hook Position: 19.69 inches (500mm) from square end
  • Hook Projection: 3/4 inch (19.5mm)
  • Locking Type: 1 swing hook
  • Maximum Cutoff: None
  • Hardware: 4 stainless steel screws

Notes

  • There are 5 middle extensions used with various top extensions to accommodate door panel heights from a minimum of 73.50 inches (1867mm) to a maximum of 137.48 inches (3492mm)
  • This is a manual extension (not motorized)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is this middle extension used for?

This middle extension attaches to the lower assembly just above the springlatch and connects to an upper shootbolt extension to complete a multipoint lock system.

What door heights does this extension accommodate?

When combined with the appropriate upper extension, this middle extension accommodates door panel heights from 73.50 inches (1867mm) to 98.11 inches (2492mm).

Can this extension be cut to fit?

No, this extension has no maximum cutoff allowance and should not be cut.
