Hoppe Automatic Gear Bottom Assembly – 35mm Backset, 92mm PZ, 37" Handle Height

Hoppe Automatic Gear Bottom Assembly – 35mm Backset, 92mm PZ, 37" Handle Height

SKU: 2771546

$162.34 - $162.34
$162.34
$162.34 - $162.34
$162.34
  • Backset: 1-3/8" (35mm)
  • PZ: 92mm
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 37" (939.8mm)
  • Bottom Roller Position: 29.53" (750mm)

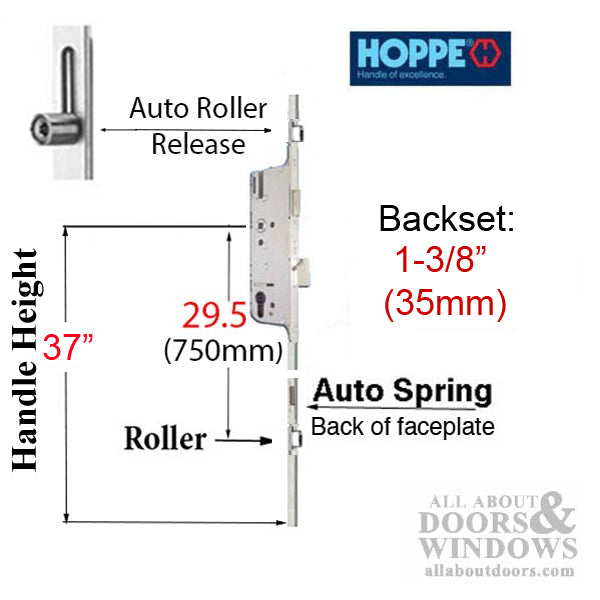

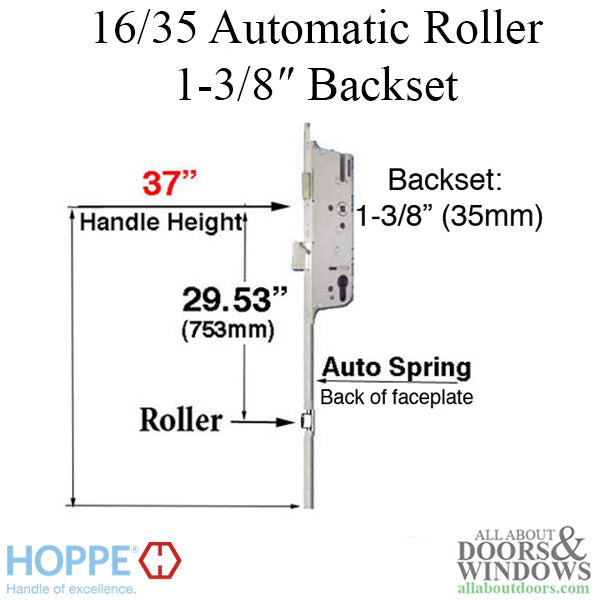

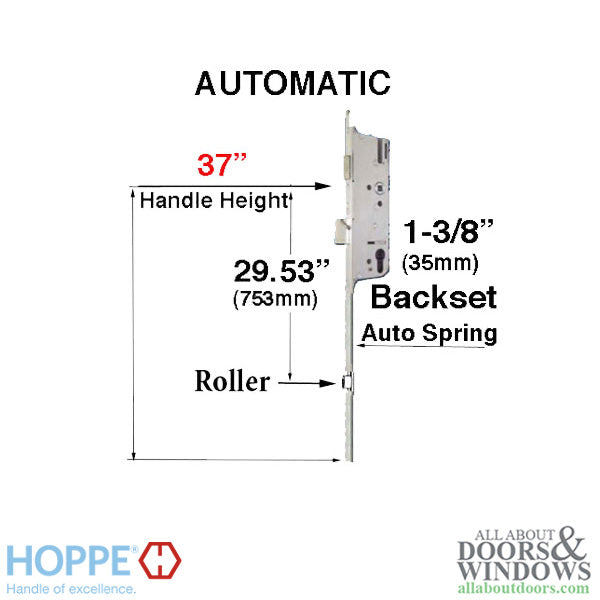

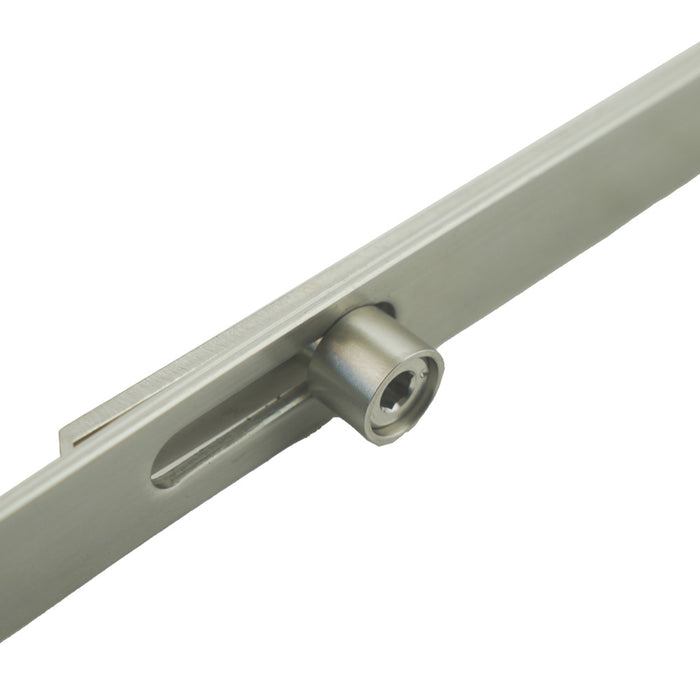

  • Automatic gear with roller approximately 6-1/2" (165mm) above handle
  • Roller triggers spring mechanism when door closes, engaging rollers automatically
  • Bottom assembly only – not compatible with old style gold color lock
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Automatic Gear Bottom Assembly – 35/92, 37" Handle (2771546)

This Hoppe Automatic Gear is a bottom assembly designed for multipoint lock systems. The automatic version features a roller positioned approximately 6-1/2 inches above the handle. When the door closes, this roller triggers a spring mechanism that automatically engages the rollers, providing secure locking without manual operation.

This is the bottom assembly only and is not compatible with the old style gold color lock. Please verify your existing lock configuration before ordering.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ: 92mm
  • Faceplate Width: 5/8 inches (16mm)
  • Handle Height: 37 inches (939.8mm)
  • Bottom Roller Position: 29.53 inches (750mm)

Notes

Related Parts

  • Top extension required for complete multipoint lock system (sold separately)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What makes this an 'automatic' gear?

The automatic version has a roller about 6-1/2 inches above the handle that triggers a spring mechanism when the door closes, automatically engaging the rollers without manual operation.

Is this a complete multipoint lock?

No, this is the bottom assembly only. You will need a compatible top extension to complete the multipoint lock system.

Will this work with my existing Hoppe lock?

This is not compatible with the old style gold color lock. Fill out the Hoppe Hinged Door Multipoint Lock Worksheet to verify compatibility with your existing system.
