Hoppe HLS7 Active Gear with Shootbolt – 45mm Backset, 92mm PZ, Right Hand

Hoppe HLS7 Active Gear with Shootbolt – 45mm Backset, 92mm PZ, Right Hand

SKU: 2717179

$263.32 - $263.32
$263.32
$263.32 - $263.32
$263.32
  • PZ: 92mm
  • Backset: 45mm (1-3/4")
  • Handle Height: 914.4mm (36")
  • Deadbolt Throw: 25.4mm (1")
  • Faceplate Width: 16mm
  • Handing: Right-handed
  • Series: HLS 7 (M/45/25 914 RE SB 16S 25)

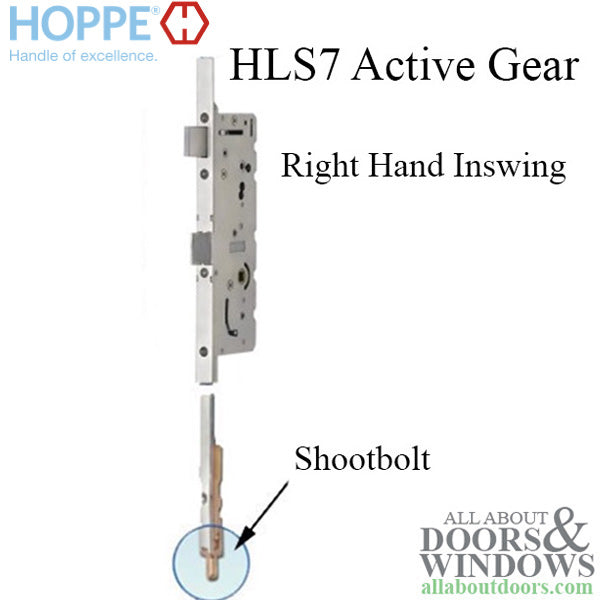

  • Active gear with shootbolt functionality
  • Features panic release function for egress
  • Latch handing can be reversed if needed
  • Bottom half of multipoint lock system – top extension determined by door height
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS7 Active Gear – 45/92, RH Shootbolt (2717179)

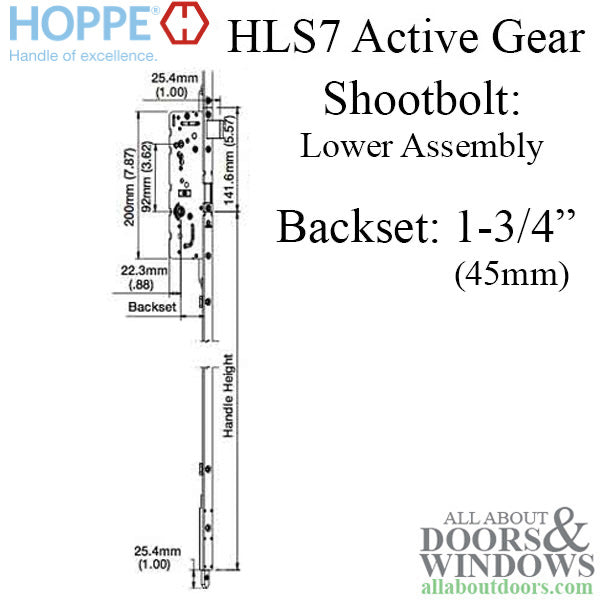

This Hoppe HLS 7 Series active gear is the bottom half of a multipoint lock system, featuring a right-handed shootbolt configuration. Designed with a 45mm backset and 92mm PZ (handle center to cylinder center), this gear provides reliable security for multipoint door applications.

The lock includes a 25.4mm (1 inch) deadbolt throw and is configured for a 36-inch handle height. The 16mm faceplate width ensures compatibility with standard multipoint door preparations.

Technical Information

  • PZ: 92mm
  • Backset: 45mm
  • Handle Height: 914.4mm (36 inches)
  • Deadbolt Throw: 25.4mm (1 inch)
  • Faceplate Width: 16mm
  • Handing: Right-handed
  • Series: HLS 7
  • Model: M/45/25 914 RE SB 16S 25

Notes

  • This is the bottom half of a multipoint lock system – the top extension is determined by your door height

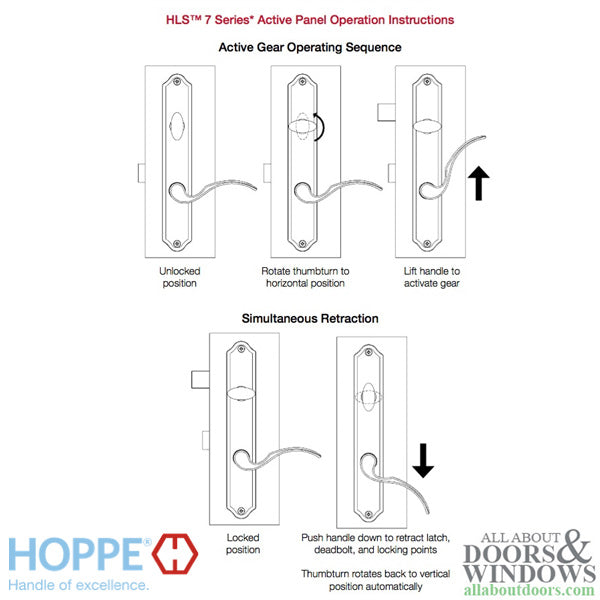

  • Features a panic release function for egress – one side is always locked while the other has the panic function

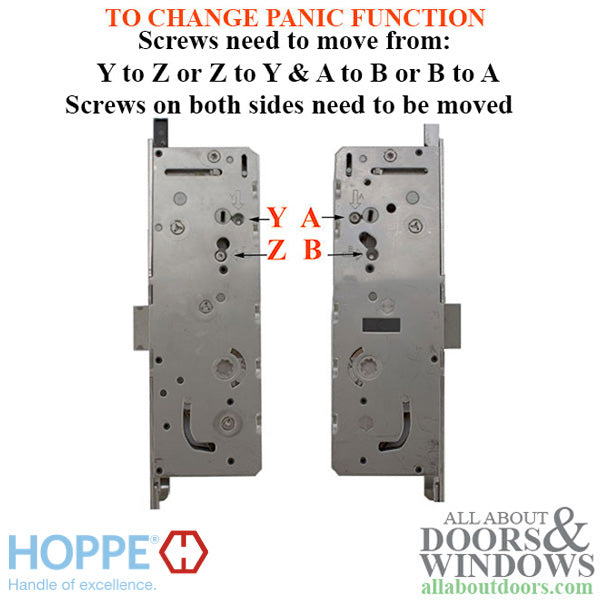

  • The spring latch can be pulled out to reverse handing if the panic function is on the wrong side
  • Door handing is determined from the exterior: hinges on the left = left-hand door, hinges on the right = right-hand door
  • The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position for proper operation

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if I need a right-hand or left-hand lock?

Door handing is determined from the exterior (outside) of the door. If the hinges are on the right when viewed from outside, you have a right-hand door and need a right-hand lock.

Can I reverse the panic function if it's on the wrong side?

Yes, the spring latch can be pulled out to reverse the panic function. Refer to the included directions for the proper procedure.

What additional parts do I need for a complete multipoint lock system?

This is the bottom half of the multipoint lock system. You will also need a top extension, which is determined by your door height.
