Hoppe HLS7 Swing Hook Lower Gear – 45mm Backset, 92mm PZ, Right Hand

Hoppe HLS7 Swing Hook Lower Gear – 45mm Backset, 92mm PZ, Right Hand

SKU: 2716643

$302.58 - $302.58
$302.58
$302.58 - $302.58
$302.58
  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Faceplate Width: 16mm (5/8")
  • Bottom Hook Position: 29.65" (753mm)
  • Handle Height: 36" (914.4mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Handing: Right Hand (field reversible)
  • Key Position: Key Above
  • Cylinder Type: American cylinder
  • Panic release function for egress
  • Lower active gear assembly – requires top extension for complete system
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS7 Swing Hook Lower Gear – 45/92, RH (2716643)

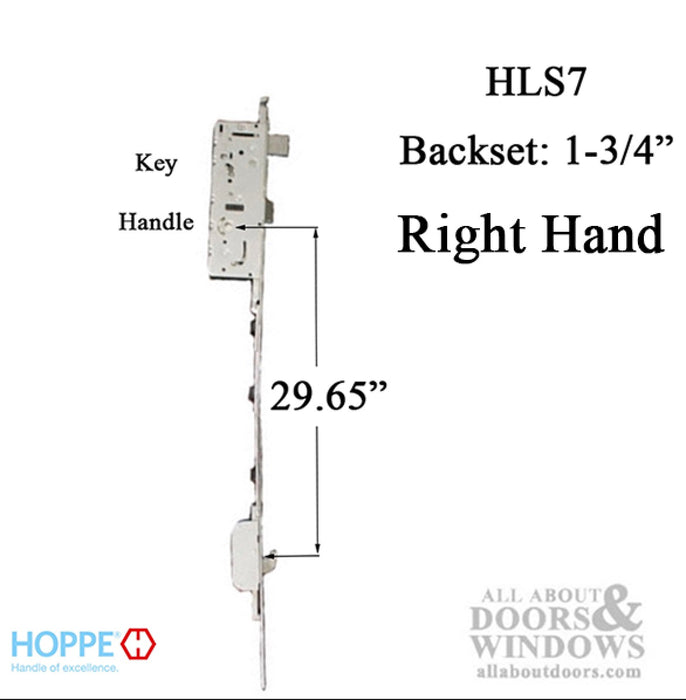

This Hoppe HLS7 Swing Hook assembly is the lower active gear component for multipoint lock systems. Designed with a 45mm (1-3/4 inch) backset and 92mm (3-5/8 inch) PZ spacing, this right-hand gear features a bottom hook positioned at 29.65 inches (753mm) from the handle center.

The lock includes a panic release function for safe egress. From the inside, simply push down on the lever to retract the deadbolt, hook, and latch simultaneously. The American cylinder version features key-above configuration with a 1-inch (25.4mm) deadbolt throw.

This is the bottom assembly only and represents half of a complete multipoint lock system. The top extension must be selected based on your door height.

Technical Information

  • Lock Type: Key Above, American cylinder version
  • PZ (Handle to Cylinder Spacing): 92mm (3-5/8 inches)
  • Backset: 45mm (1-3/4 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Bottom Hook Position: 29.65 inches (753mm)
  • Handle Height: 36 inches (914.4mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handing: Right Hand (can be field changed)
  • Mounting Screws: 5 included

Notes

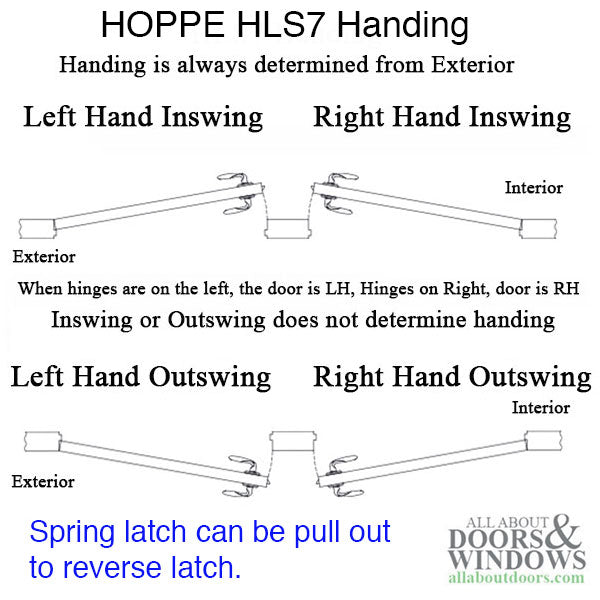

  • Door handing is determined from the exterior – hinges on the right means Right Hand (RH)
  • The spring latch can be pulled out with pliers to reverse for inswing or outswing

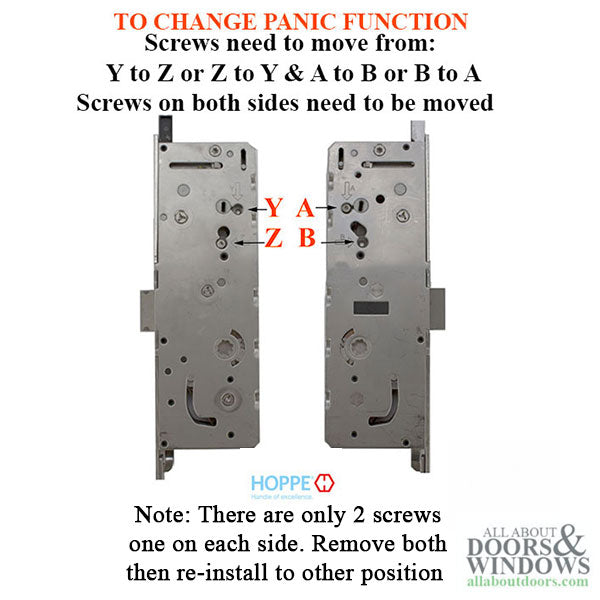

  • Panic function side can be changed if needed – see product images for directions
  • The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position for proper gear operation
  • Left Hand version available: 2664231

Related Parts

  • 2664231 - Hoppe Swinghook 16/45/92 Gear, Hook @ 29.65" Left Hand

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this a complete multipoint lock system?

No, this is the lower active gear assembly only. You will need to purchase a top extension separately based on your door height to complete the multipoint lock system.

Can I change the handing on this lock?

Yes, the handing can be field changed. The spring latch can be pulled out with pliers to reverse for inswing or outswing, and the panic function side can also be changed following the directions provided.

How does the panic release function work?

From the inside, simply push down on the lever and the deadbolt, hook, and latch will all retract simultaneously, allowing you to exit the locked door.
