Hoppe HLS7 Multipoint Lock Gear with Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 2716627

$273.38 - $273.38

$273.38

$273.38 - $273.38

$273.38

PZ: 92mm (3-5/8")

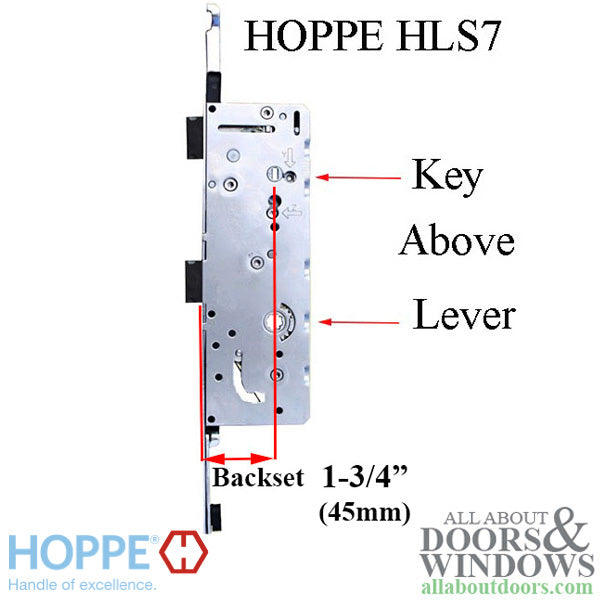

Backset: 45mm (1-3/4")
Handle Height: 36" (914mm)

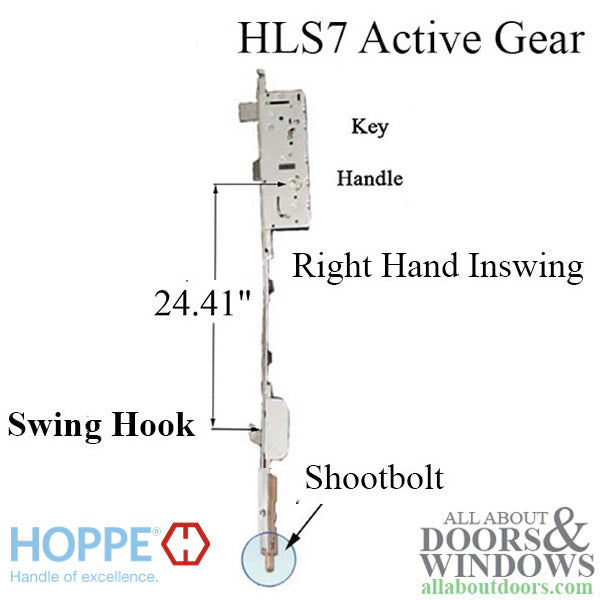

Shootbolt & Swinghook Position: 24.41" (620mm)
Faceplate Width: 16mm (5/8")
Spindle Hub Diameter: 5/16" (8mm) with blocker, uses 1/2 spindles
Handing: Right Hand (reversible prior to installation)

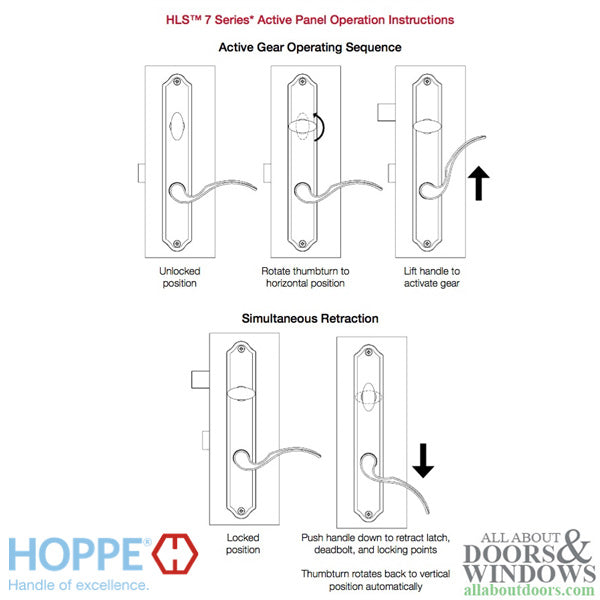

Hoppe Series: HLS 7 (one motion retracts deadbolt with turn of handle)
Panic release function on interior side for egress
Bottom half of multipoint lock system – top extension sold separately based on door height
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS7 Shootbolt Gear – 45/92, 36" Handle Height (2716627)

This Hoppe HLS7 multipoint lock gear features a shootbolt and swinghook configuration designed for secure multipoint door systems. The HLS 7 series allows one-motion operation where turning the handle retracts the deadbolt, providing convenient egress while maintaining security.

This lock body has a 45mm (1-3/4 inch) backset and 92mm PZ spacing, with a 36-inch handle height. The shootbolt and swinghook are positioned at 24.41 inches (620mm) from the handle center. The 16mm faceplate width fits standard multipoint door preparations.

The gear comes configured for right-hand doors but can be reversed prior to installation if needed. Door handing is determined from the exterior: when hinges are on the right, the door is right-hand. The spindle hub features a 5/16-inch (8mm) diameter with a blocker and accepts 1/2 spindles attached to the handleset.

Technical Information

Hoppe Series: HLS 7
PZ (Handle to Cylinder Center): 92mm (3-5/8 inches)
Backset: 45mm (1-3/4 inches)
Handle Height: 36 inches (914mm)
Shootbolt & Swinghook Position: 24.41 inches (620mm)
Faceplate Width: 16mm
Spindle Hub Diameter: 5/16 inch (8mm)
Handing: Right Hand (reversible)

Notes

This is the bottom half of the multipoint lock system – top extension is determined by door height and tongue position

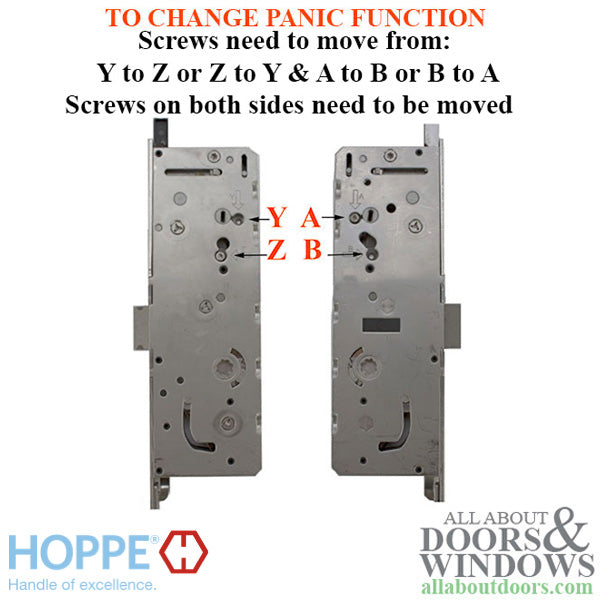

Panic release function allows egress from interior by depressing lever to retract latch and deadbolt
Spring latch can be reversed if panic function is on wrong side
The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position for proper gear operation
All HLS 7 gears have the same backset options and are handed for left or right hand doors

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the HLS 7 series?

The Hoppe HLS 7 series features one-motion operation where turning the handle retracts the deadbolt, allowing convenient exit while maintaining security when locked.

Can I change the handing on this lock?

Yes, the handing can be reversed prior to installation. The spring latch can be pulled out to reverse the panic function side if needed.

Do I need additional parts with this lock gear?

Yes, this is the bottom half of the multipoint lock system. You will need a top extension, which is determined by your door height and tongue position.
