Hoppe HLS7 Shootbolt Active Gear – 45mm Backset, 92mm PZ, 24.41" Swinghook, Left Hand

SKU: 2666498

$330.59 - $330.59

$330.59

$330.59 - $330.59

$330.59

PZ: 92mm
Backset: 1-3/4" (45mm)
Handle Height: 36" (914mm)
Swinghook Position: 24.41" (620mm)
Handing: Left Hand Inswing (reversible prior to installation)
Spindle Hub Diameter: 5/16" (8mm)
Hoppe Series: HLS 7 (one motion retracts deadbolt with turn of handle)
Shootbolt and swinghook active gear configuration
Panic release function on interior side
Uses 1/2 spindles attached to handleset
Bottom half of multipoint lock system - top extension sold separately based on door height
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS7 Shootbolt Active Gear – 45/92, LH (2666498)

This Hoppe HLS7 Swinghook Shootbolt Active Gear is the bottom half of a multipoint lock system designed for left-hand inswing doors. Part of the HLS 7 series, this lock features one-motion operation where turning the handle retracts the deadbolt, providing convenient egress.

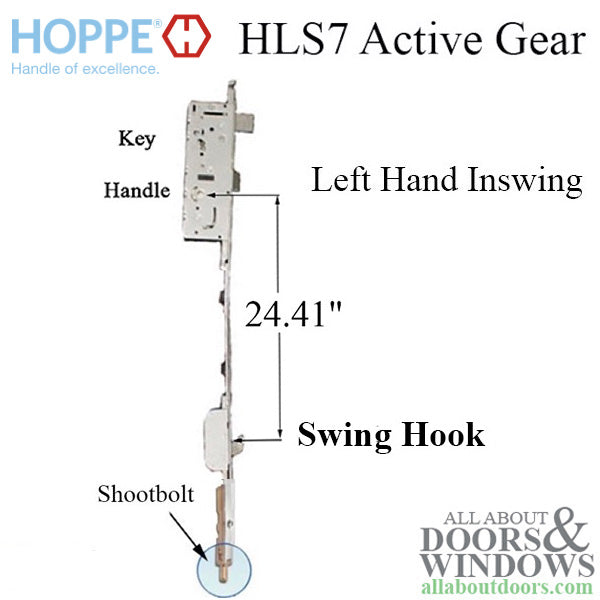

The active gear includes both a shootbolt and swinghook positioned at 24.41 inches (620mm) from the handle center. With a 1-3/4 inch (45mm) backset and 92mm PZ spacing, this lock is compatible with standard Hoppe handlesets using 1/2 spindles. The handle height measures 36 inches (914mm).

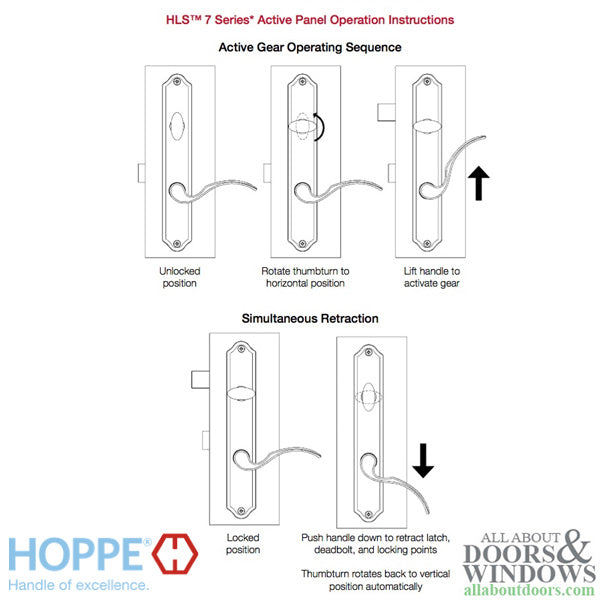

This multipoint lock includes a panic release function on the interior side. When exiting from inside, simply push down on the lever and both the deadbolt and latch will retract simultaneously. The thumbturn automatically returns to the vertical position.

Technical Information

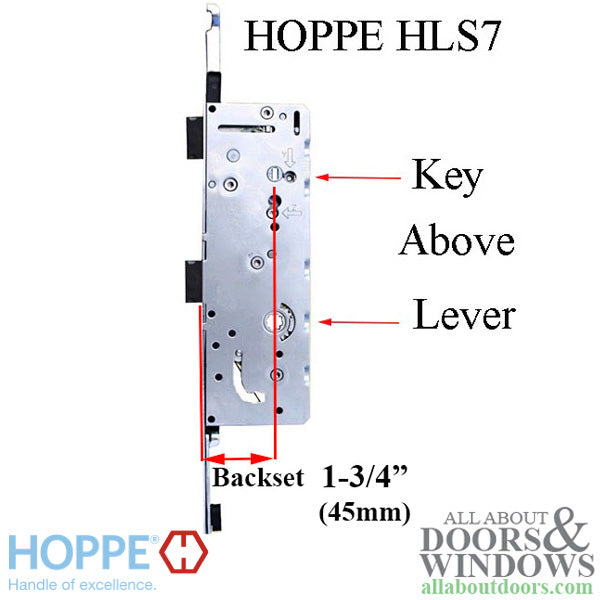

Backset: 1-3/4 inches (45mm)
PZ: 92mm
Handle Height: 36 inches (914mm)
Swinghook Position: 24.41 inches (620mm)
Spindle Hub Diameter: 5/16 inch (8mm)
Hoppe Series: HLS 7
Handing: Left Hand Inswing (reversible)

Notes

This is the bottom half of the multipoint lock system. The top extension is determined by door height and tongue position.

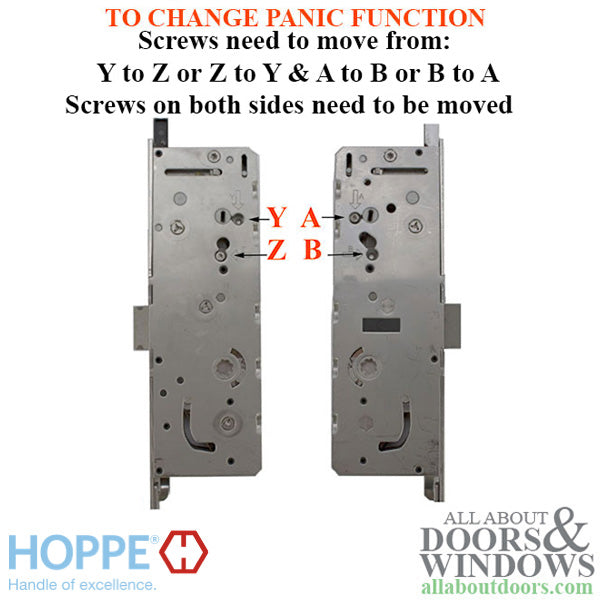

Handing can be changed prior to installation if needed. The spring latch can be pulled out to reverse the panic function side.
Door handing is determined from the exterior: hinges on the left equals left-hand door, hinges on the right equals right-hand door.
The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position for proper gear operation.
All HLS 7 locks have the same backset and are handed for left or right hand doors.

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the HLS 7 series and other Hoppe multipoint locks?

The HLS 7 series features one-motion operation where turning the handle retracts the deadbolt, providing convenient egress without needing to unlock the thumbturn first.

Can I change the handing on this lock?

Yes, the handing can be reversed prior to installation. The spring latch can be pulled out to change which side has the panic release function.

Do I need additional parts to complete my multipoint lock system?

Yes, this is the bottom half of the multipoint lock system. You will need a top extension, which is determined by your door height and tongue position.
