Hoppe HLS7 Swing Hook Active Gear – 45mm Backset, 92mm PZ, 29.65" Hook, Left Hand

SKU: 2664231

$302.58 - $302.58

$302.58

$302.58 - $302.58

$302.58

PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Bottom Hook Position: 29.65" (753mm)
Handle Height: 36" (914.4mm)
Deadbolt Throw: 1" (25.4mm)
Key Position: Key Above (American version)
Handing: Left Hand (can be field changed if needed)
Panic release function for egress from inside
Lower active gear assembly for HLS7 multipoint system
Requires 5 screws (T15 Torx)
Sold individually – this is the bottom assembly only; top extension sold separately based on door height

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS7 Swing Hook Active Gear – 45/92, LH (2664231)

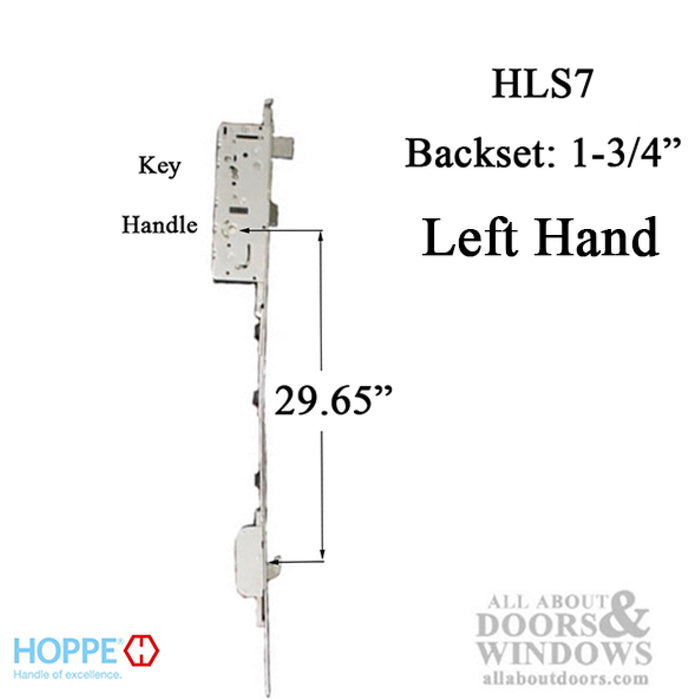

This Hoppe HLS7 Swing Hook assembly is the lower active gear component for multipoint lock systems. Designed with a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) PZ spacing, this left hand gear features a swing hook positioned at 29.65 inches (753mm) from the handle center.

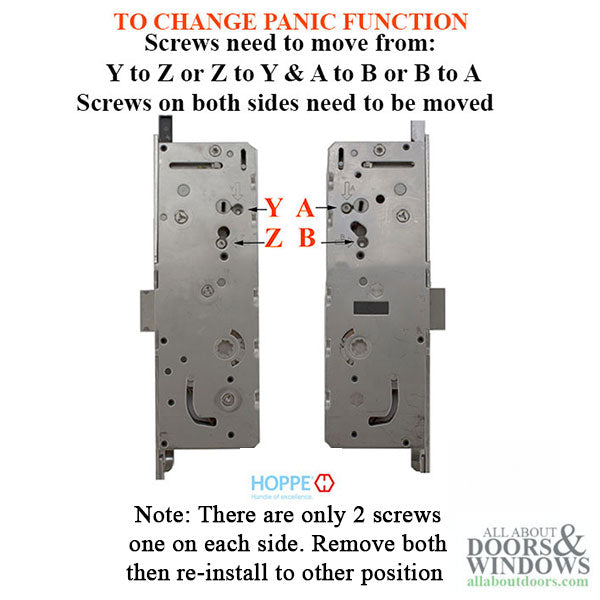

The lock includes a panic release function for safe egress from the interior. When locked, simply push down on the interior lever to retract the deadbolt, hook, and latch simultaneously. The 1 inch (25.4mm) deadbolt throw provides secure locking, while the 5/8 inch (16mm) faceplate width fits standard multipoint door preparations.

Technical Information

PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inch (16mm)
Bottom Hook Position: 29.65 inches (753mm)
Handle Height: 36 inches (914.4mm)
Deadbolt Throw: 1 inch (25.4mm)
Key Position: Key Above
Cylinder Type: American version
Handing: Left Hand
Screw Type: T15 Torx (5 screws included)

Notes

This is the bottom assembly only – the top extension is determined by door height and sold separately
Handing can be field changed if needed by reversing the spring latch
The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position for proper gear operation

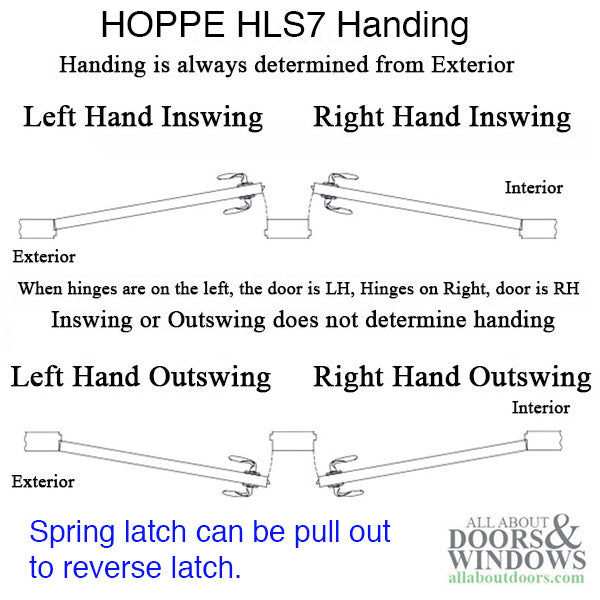

Door handing is determined from the exterior: hinges on left = Left Hand, hinges on right = Right Hand

Related Parts

2716643 - Hoppe HLS7 Active Gear, 45/92, Swinghook @ 29.65" Right Hand

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this lock and the right hand version?

This is the left hand version (2664231) for doors with hinges on the left when viewed from outside. The right hand version (2716643) is for doors with hinges on the right. Handing can be field changed if needed.

Do I need additional parts to complete my multipoint lock system?

Yes, this is the lower active gear assembly only. You will need a top extension, which is determined by your door height, to complete the multipoint lock system.

How does the panic release function work?

From the inside, simply push down on the lever and the deadbolt, hook, and latch will all retract simultaneously, allowing you to exit even when the door is locked.
