Hoppe HLS7 Swinghook Lower Gear – 45mm Backset, 92mm PZ, 24.41" Hook, Left Hand

SKU: 2664222

$302.58 - $302.58

$302.58

$302.58 - $302.58

$302.58

PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Bottom Hook Position: 24.41" (620mm)
Handle Height: 36" (914.4mm)
Deadbolt Throw: 1" (25.4mm)
Handing: Left Hand (can be field changed if needed)
Key Position: Key Above
Cylinder Type: American cylinder
Panic release function on interior for egress
Lower active gear assembly with swing hook
Requires top extension (sold separately, determined by door height)
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS7 Swinghook Lower Gear – 45/92, LH (2664222)

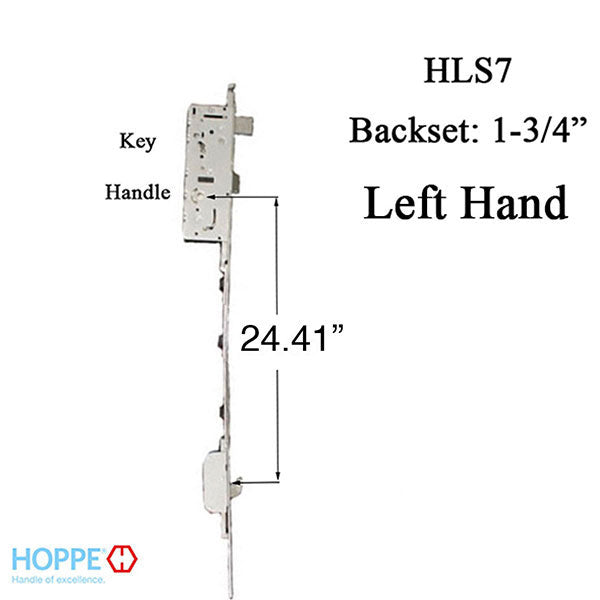

This Hoppe HLS7 Swing Hook assembly is the lower active gear component for multipoint lock systems. Designed with a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) PZ spacing, this left hand gear features a bottom hook positioned at 24.41 inches (620mm) from the handle center.

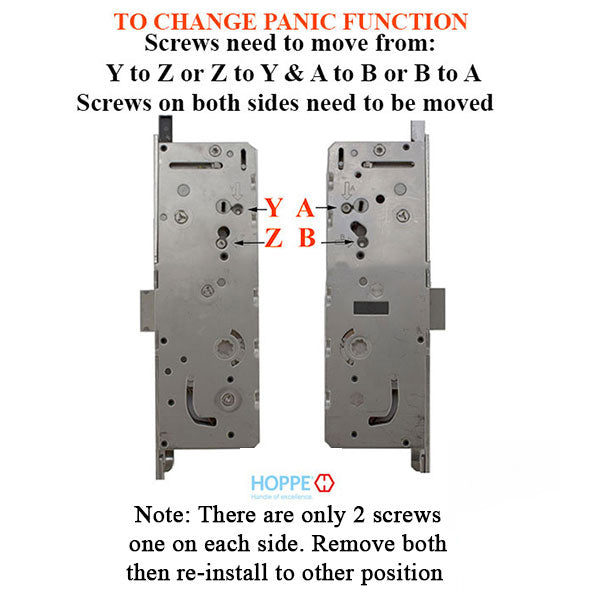

The lock includes a panic release function on the interior side, allowing occupants to exit by simply pushing down on the lever. This action retracts the deadbolt, hook, and latch simultaneously for quick egress. The 1 inch (25.4mm) deadbolt throw provides secure locking when engaged.

This is the bottom assembly only and represents half of a complete multipoint lock system. The top extension must be purchased separately and is determined by your door height.

Technical Information

PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inch (16mm)
Bottom Hook Position: 24.41 inches (620mm)
Handle Height: 36 inches (914.4mm)
Deadbolt Throw: 1 inch (25.4mm)
Key Position: Key Above
Cylinder Type: American version
Screw Type: T15 Torx (5 screws included)

Notes

Handing can be field changed if needed by reversing the spring latch

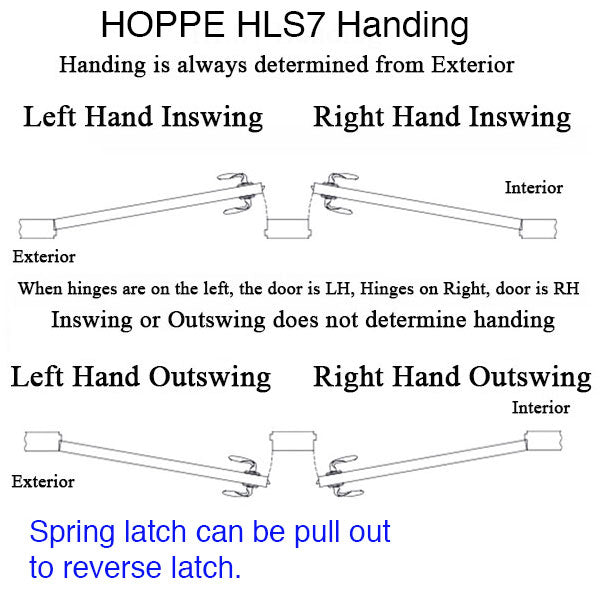

Door handing is determined from the exterior: hinges on left = Left Hand (LH), hinges on right = Right Hand (RH)
The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position for proper gear operation
The handle set with spring assist naturally aligns this when installed in the door

Related Parts

2716635 - Hoppe Swinghook 16/45/92 Gear, Hook @ 24.41" Right Hand

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between left hand and right hand for this lock?

Door handing is determined from the exterior (outside). When hinges are on the left, the door is Left Hand (LH). When hinges are on the right, the door is Right Hand (RH). This lock can be field changed if needed.

How does the panic release function work?

From inside, simply push down on the lever and the deadbolt, hook, and latch will all retract simultaneously, allowing you to exit the locked door quickly.

Do I need additional parts to complete my multipoint lock system?

Yes, this is the lower assembly only. You will need a top extension, which is determined by your door height, to complete the multipoint lock system.
