Hoppe HLS 7 Active Shootbolt Lock – 45mm Backset, 36" Handle Height, Left Hand

SKU: 2664214

$276.51 - $276.51

$276.51

$276.51 - $276.51

$276.51

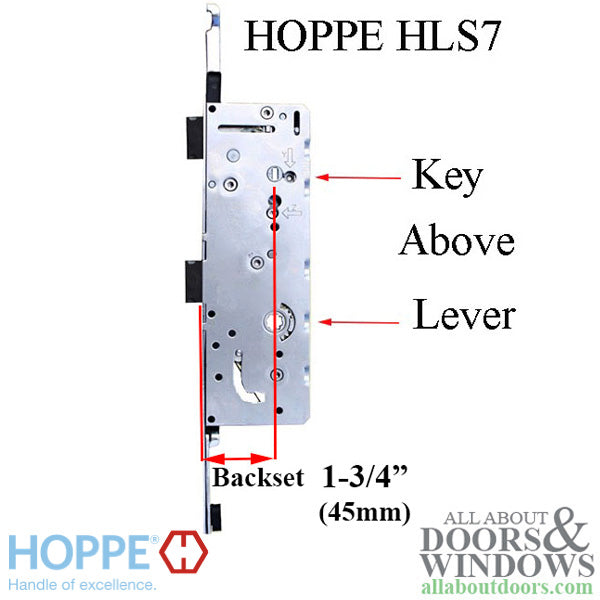

Backset: 1-3/4" (45mm)
Handle Height: 36" (914.4mm)
Deadbolt Throw: 1" (25.4mm)
Lock Case Dimensions: 1-5/8" x 7-7/8" (41.3mm x 200mm)
Handing: Left Hand (LI) – handed lock, cannot be reversed
Faceplate: 16mm width

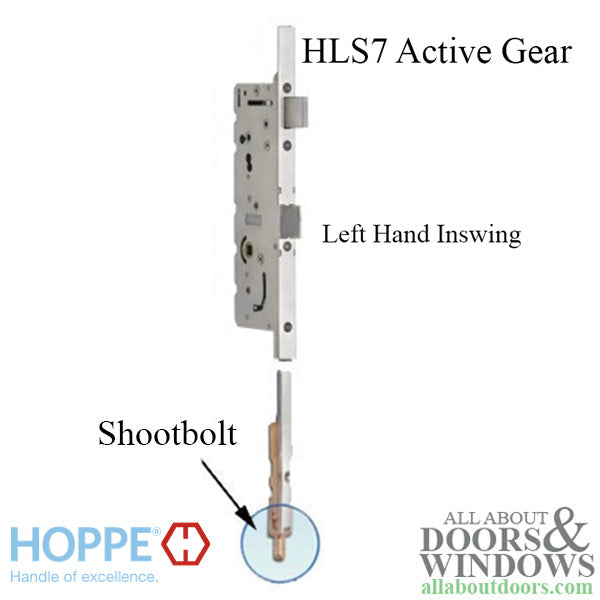

Active shootbolt with panic release function for egress
Bottom half of multipoint lock system – requires top extension based on door height
Half-moon slot must align at 3 or 9 o'clock position for proper gear operation
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS 7 Active Shootbolt Lock – 45mm, Left Hand (2664214)

This Hoppe HLS 7 Series multipoint lock body is the bottom component of a complete multipoint locking system. Designed for left-hand doors, this active shootbolt lock features a 1-3/4 inch (45mm) backset and a 36 inch (914.4mm) handle height, making it suitable for standard residential and commercial door applications.

The lock case measures 1-5/8 x 7-7/8 inches (41.3mm x 200mm) and includes a 1 inch (25.4mm) deadbolt throw for secure engagement. This unit incorporates a panic release function for egress compliance – one side remains locked while the other side allows emergency exit. The spring latch can be reversed if the panic function needs to be on the opposite side.

Technical Information

Series: HLS 7
Model: M/45/25 914 LI SB 16S 25
Backset: 1-3/4 inches (45mm)
Handle Height: 36 inches (914.4mm)
Deadbolt Throw: 1 inch (25.4mm)
Lock Case: 1-5/8 x 7-7/8 inches (41.3mm x 200mm)
Faceplate Width: 16mm
Handing: Left Hand (LI)
Screws Included: 4

Notes

This is the bottom half of a multipoint lock system – the top extension is determined by door height
Door handing is determined from the exterior: hinges on the left = Left Hand (LH), hinges on the right = Right Hand (RH)
Inswing or outswing does not affect handing determination
The half-moon slot next to the handle hub must have the nub in the 3 or 9 o'clock position for proper gear operation

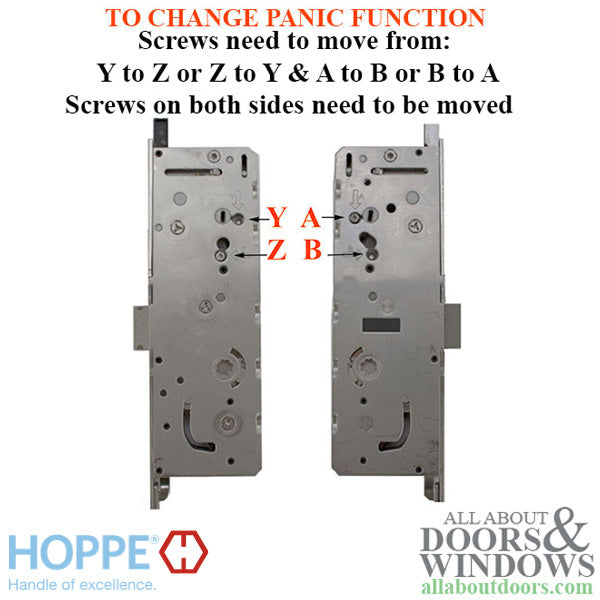

Panic function side can be changed by pulling out and reversing the spring latch

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if I need a left or right hand lock?

Door handing is determined from the exterior (outside) of the door. If the hinges are on the left when viewed from outside, you need a Left Hand lock. If hinges are on the right, you need a Right Hand lock.

Can I change which side has the panic release function?

Yes, the panic function can be reversed. Pull out the spring latch and reverse it to change which side has the panic release.

What additional parts do I need for a complete multipoint lock system?

This is the bottom half of the multipoint lock system. You will also need a top extension, which is determined by your door height.
