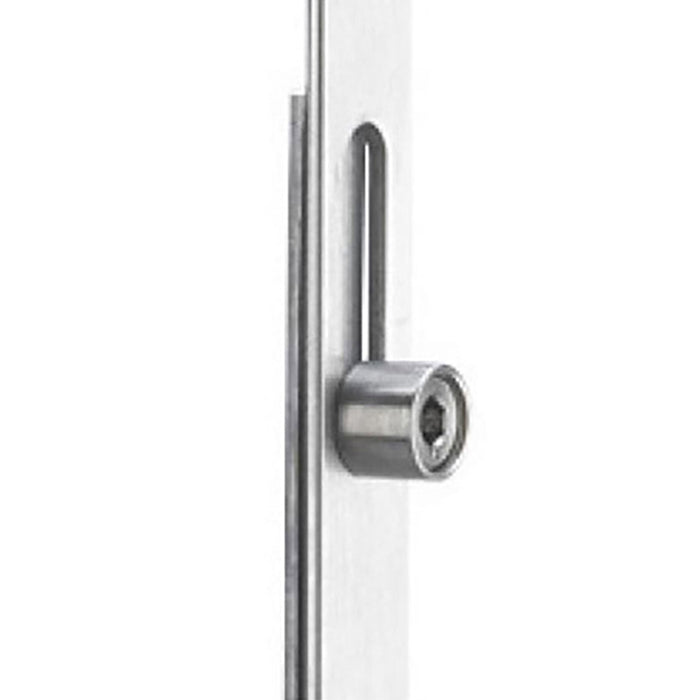

Hoppe Manual Top Extension – HLS9000 Roller, 16mm Faceplate, 41.65" Length

SKU: 2514101

$55.35 - $55.35

$55.35

$55.35 - $55.35

$55.35

Locking Version: Manual
Faceplate Width: 5/8" (16mm)
Top Roller Position: 35.82" (910mm)
Extension Length: 41.65" (1058mm)
Maximum Cut Off: 2.38" (60mm)
Fits Handle Height: 36"
Installation Screws: 9
Compatibility: HLS9000 Roller version

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Manual Top Extension – HLS9000 (2514101)

This Hoppe top extension is designed for HLS9000 roller version multipoint lock systems. It features manual locking operation and is built to work with doors that have a 36-inch handle height configuration.

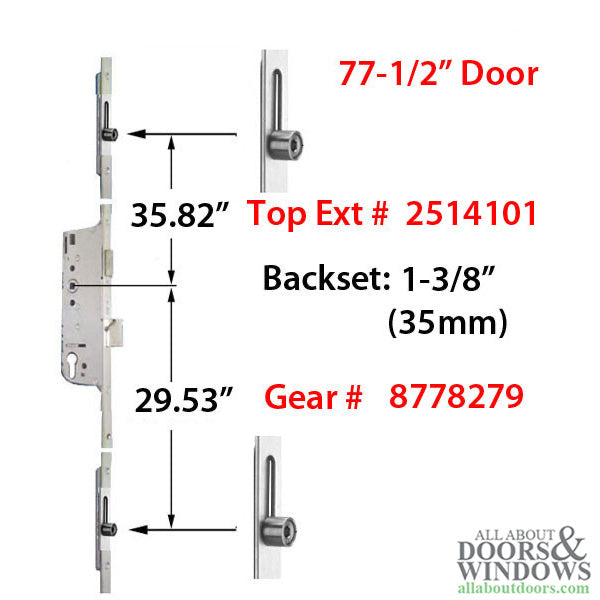

The extension measures 41.65 inches (1058mm) in total length with a top roller position at 35.82 inches (910mm) from the base. The faceplate width is 5/8 inch (16mm), and the unit allows for a maximum cut off of 2.38 inches (60mm) to accommodate various door heights.

Technical Information

Locking Version: Manual
Faceplate Width: 5/8 inch (16mm)
Top Roller Position: 35.82 inches (910mm)
Extension Length: 41.65 inches (1058mm)
Maximum Cut Off: 2.38 inches (60mm)
Handle Height Compatibility: 36 inches
Number of Installation Screws: 9

Notes

Compatible with HLS9000 Roller version systems
Can be rehanded if needed

Related Parts

Hoppe HLS9000 Multipoint Lock Body

To ensure you select the correct multipoint lock, please refer to our Multipoint Lock Glossary of Terms. If you are unsure whether your lock can be replaced, please fill out the Hoppe Hinged Door Multipoint Lock Worksheet and send it to us.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I connect this top extension to my Hoppe lock box?

The top extension connects directly to the Hoppe HLS9000 lock body using the 9 included installation screws. Ensure proper alignment before securing.

Can I cut this extension to fit my door?

Yes, this extension allows for a maximum cut off of 2.38 inches (60mm) to accommodate different door heights.

Can the handing be reversed on this extension?

Yes, Hoppe multipoint lock components including extensions can be rehanded to fit left or right-hand door configurations.
