Hoppe HLS 9000 Multipoint Lock – 60mm Backset, 92mm PZ, 20mm Faceplate, 36" Handle Height

SKU: 2406418

Sold out

$234.22 - $234.22

$234.22

$234.22 - $234.22

$234.22

PZ: 92mm
Backset: 2-3/8" (60mm)
Faceplate Width: 3/4" (20mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Bottom Tongue Position: 26-13/32" (671mm)
Maximum Cutoff: 4-1/2" (115mm)
Manual gear operation – lift handle, then turn thumbturn or key to extend deadbolt
Lower assembly only – includes lock case with faceplate and bottom tongue attached
Does not include upper extensions or other components
Discontinued: No longer available

Discontinued and no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS 9000 Multipoint Lock – 60/92, 20mm Faceplate (2406418)

This item is discontinued and no longer available.

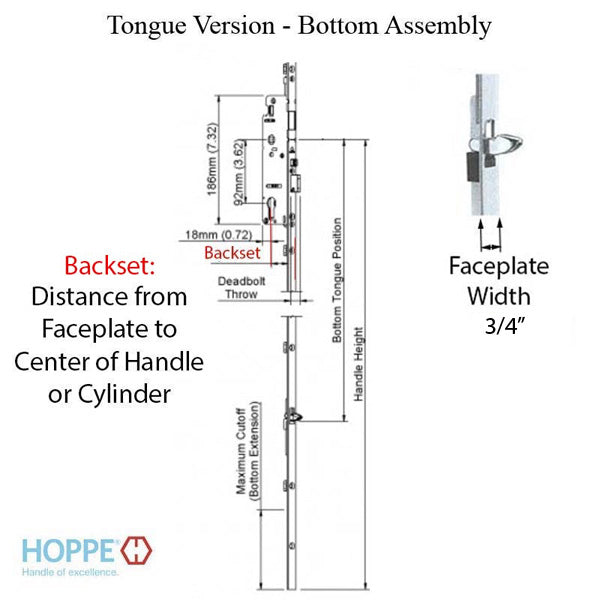

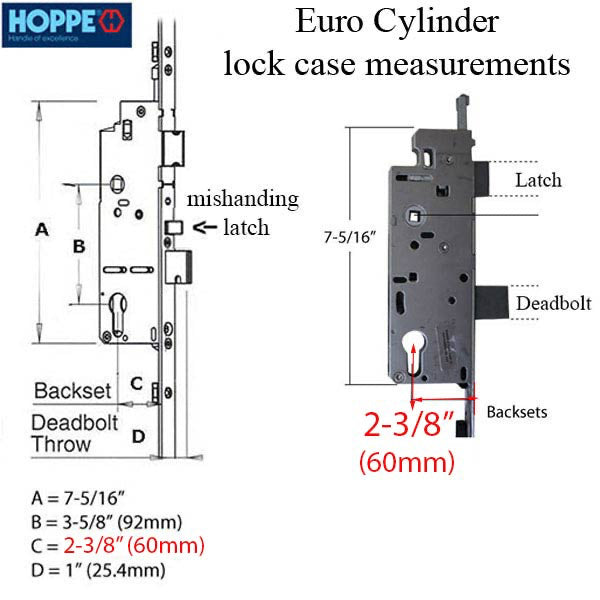

The Hoppe HLS 9000 Multipoint Lock with Manual Gear is designed for active doors requiring a tongue version lower assembly. This unit features a 60mm backset and 92mm PZ (handle center to cylinder center), with a 20mm (3/4 inch) faceplate width.

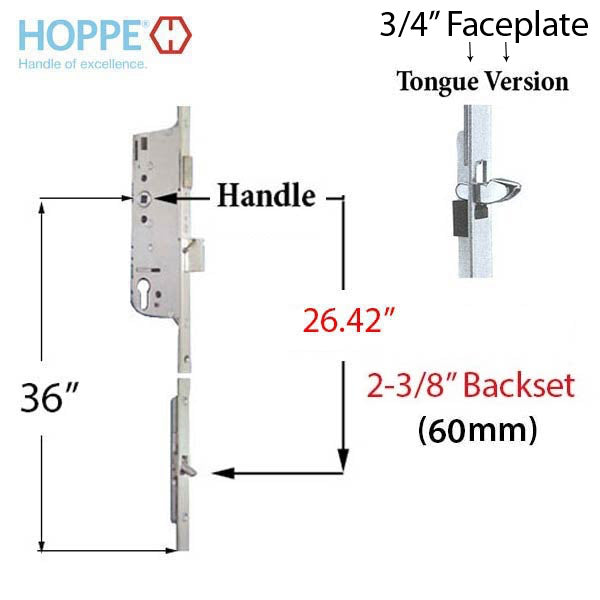

The lower assembly includes the lock case with faceplate and bottom tongue attached. The handle height measures 36 inches (914mm), and the bottom tongue is positioned at 26-13/32 inches (671mm) from the top of the faceplate. The deadbolt throw is 1 inch (25.4mm), and the maximum cutoff is 4-1/2 inches (115mm).

This is a manual function lock. To lock the door, lift the handle and then turn the thumbturn or key to extend the deadbolt. To unlock, turn the thumbturn or key and then depress the lever.

Technical Information

PZ: 92mm
Backset: 60mm (2-3/8 inches)
Faceplate Width: 20mm (3/4 inch)
Deadbolt Throw: 25.4mm (1 inch)
Handle Height: 914mm (36 inches)
Bottom Tongue Position: 671mm (26-13/32 inches)
Maximum Cutoff: 115mm (4-1/2 inches)
Number of Screws: 6
Operation: Manual Function

Notes

Lower assembly only – does not include additional upper extensions or other components
Profile cylinder requires a 3 to 3-1/4 inch length screw for a 70mm backset

Sold as lower assembly only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ measurement.

How do I operate this manual multipoint lock?

To lock, lift the handle and then turn the thumbturn or key to extend the deadbolt. To unlock, turn the thumbturn or key first, then depress the lever.

Does this include the upper extension?

No, this is the lower assembly only. It includes the lock case with faceplate and bottom tongue attached. Upper extensions must be purchased separately.
