Hoppe HLS9000 Multipoint Lock Bottom Gear – 70mm Backset, 92mm PZ, 36" Handle Height

Hoppe HLS9000 Multipoint Lock Bottom Gear – 70mm Backset, 92mm PZ, 36" Handle Height

SKU: 2406397

$231.14 - $231.14
$231.14
$231.14 - $231.14
$231.14
  • PZ: 92mm
  • Backset: 70mm (2-3/4")
  • Handle Height: 36" (914mm)
  • Tongue Position: 29.65" (753mm) from bottom
  • Deadbolt Throw: 1" (25.4mm)
  • Faceplate Width: 16mm
  • Maximum Cutoff: 1.18" (30mm)
  • Number of Screws: 5
  • Manual gear with tongue bottom extension
  • Bottom gear designed for use with top gear
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Manual Gear – 70/92, 36" HH (2406397)

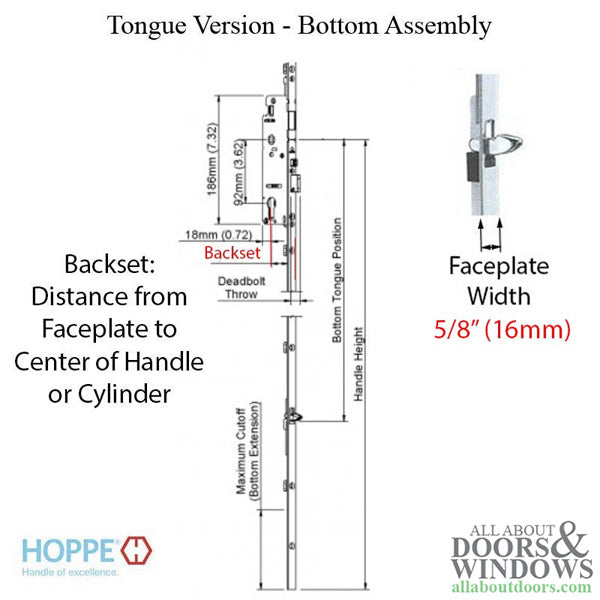

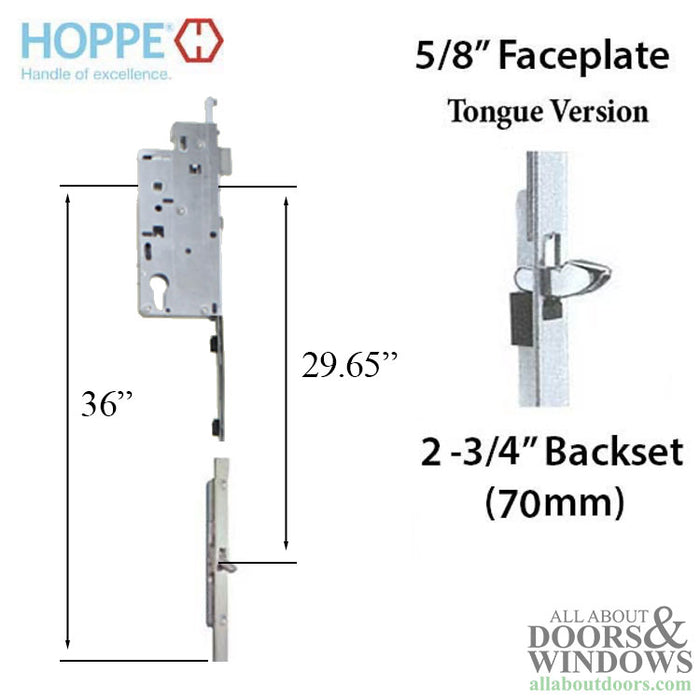

This Hoppe HLS9000 16mm manual multipoint lock gear features a tongue bottom extension configuration. Designed as the bottom gear component of a multipoint locking system, it must be used in conjunction with a compatible top gear to complete the installation.

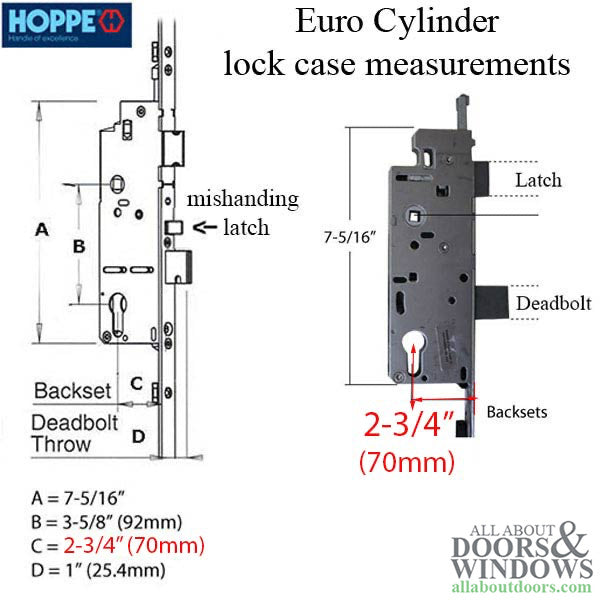

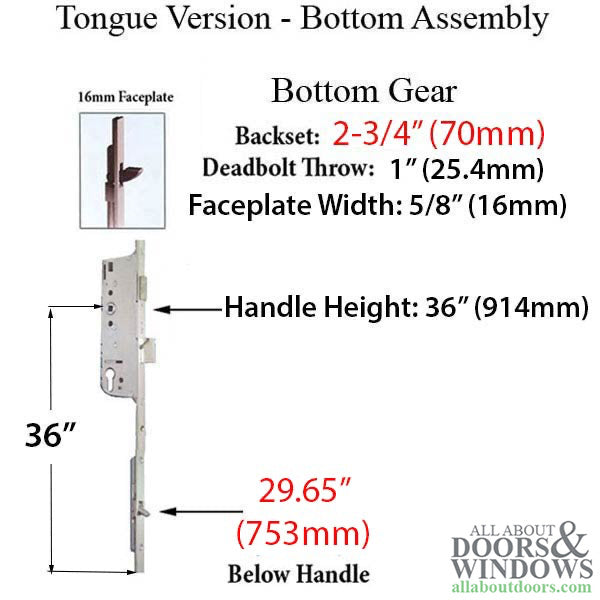

The gear operates with a 70mm backset and 92mm PZ (handle center to cylinder center distance). It includes a 1-inch deadbolt throw for secure locking engagement. The handle height measures 36 inches from the bottom of the gear, with the tongue positioned at 29.65 inches.

Technical Information

  • Backset: 70mm (2-3/4 inches)
  • PZ: 92mm
  • Handle Height: 914mm (36 inches)
  • Bottom Tongue Position: 753mm (29.65 inches)
  • Deadbolt Throw: 25.4mm (1 inch)

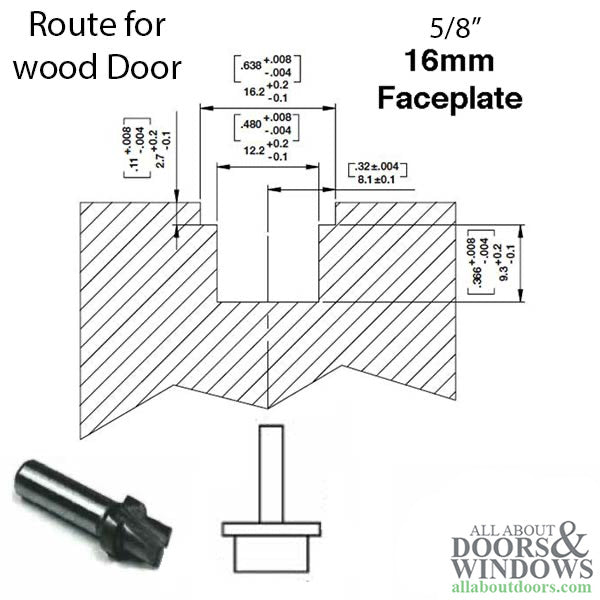

  • Faceplate Width: 16mm (0.63 inches)
  • Maximum Cutoff: 30mm (1.18 inches)
  • Number of Screws: 5

Notes

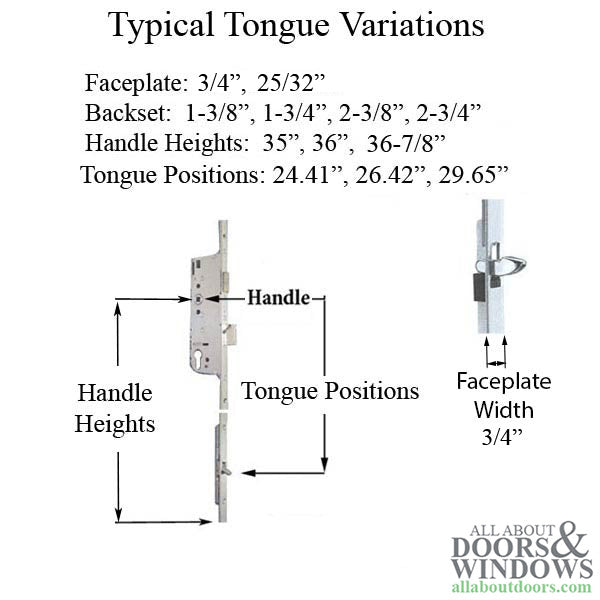

  • This is a tongue version bottom gear
  • Requires a compatible top gear to complete the multipoint lock system

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Do I need additional parts to use this lock gear?

Yes, this is a bottom gear with tongue extension that must be used with a compatible Hoppe top gear to complete the multipoint locking system.

What does PZ 92mm mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole), measured at 92mm for this lock gear.

How do I measure the backset on my door?

Measure from the edge of the door to the center of the handle bore hole. This gear requires a 70mm (2-3/4 inch) backset.
