Hoppe HLS9000 Bottom Gear – 60mm Backset, 92mm PZ, 36" Handle Height

Hoppe HLS9000 Bottom Gear – 60mm Backset, 92mm PZ, 36" Handle Height

SKU: 2406354

$231.14 - $231.14
$231.14
$231.14 - $231.14
$231.14
  • PZ: 92mm
  • Backset: 60mm (2-3/8")
  • Faceplate Width: 16mm (0.63")
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 26.42" (671mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Maximum Cutoff: 4.53" (115mm)
  • Number of Screws: 6
  • HLS9000 series bottom gear designed for use with top extension
  • Manual operation multipoint lock gear
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Bottom Gear – 60/92, 36" HH (2406354)

This Hoppe HLS9000 bottom gear is a manual multipoint lock component designed to work with a compatible top extension. It features a 60mm backset and 92mm PZ spacing, making it suitable for standard European-style multipoint door systems.

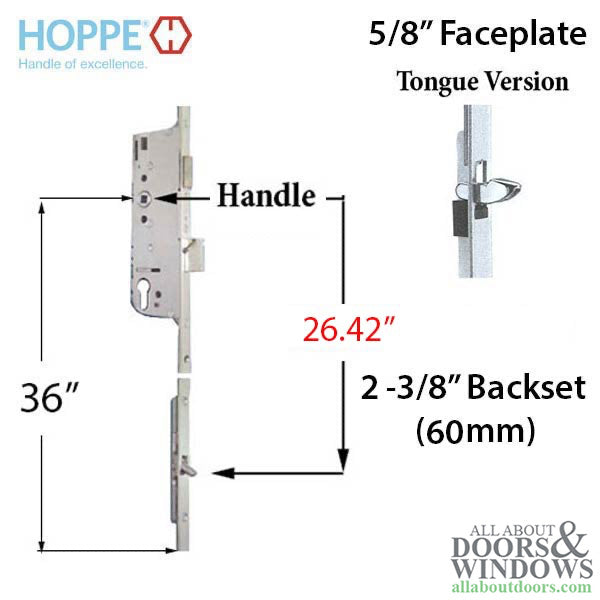

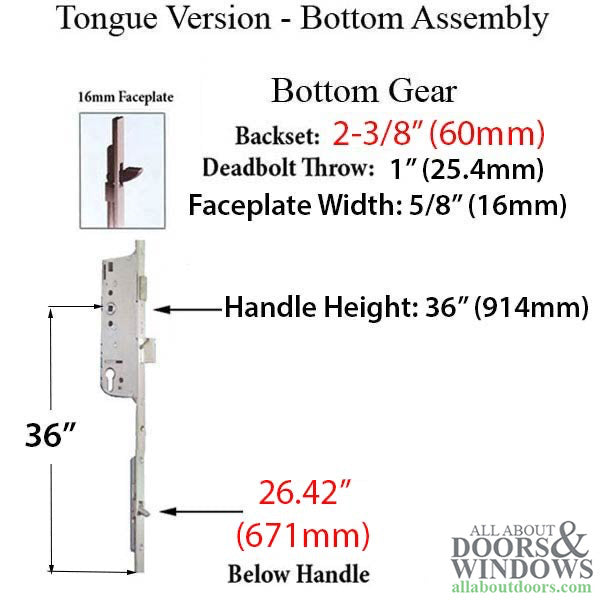

The gear includes a 1-inch deadbolt throw for secure locking and is configured with a 36-inch handle height. The bottom tongue is positioned at 26.42 inches from the top of the faceplate, and the maximum cutoff length is 4.53 inches.

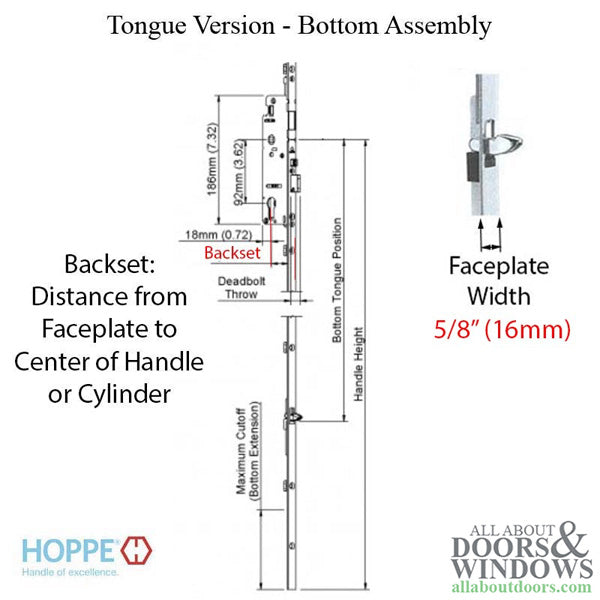

Technical Information

  • PZ (Handle to Cylinder Center): 92mm
  • Backset: 60mm (2-3/8 inches)
  • Faceplate Width: 16mm (0.63 inches)
  • Handle Height: 914mm (36 inches)
  • Bottom Tongue Position: 671mm (26.42 inches)
  • Deadbolt Throw: 25.4mm (1 inch)
  • Maximum Cutoff: 115mm (4.53 inches)
  • Number of Screws: 6

Notes

  • This is a bottom gear component and must be used with a compatible Hoppe top extension
  • Part of the Hoppe HLS9000 multipoint lock system

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What top extension do I need with this bottom gear?

This HLS9000 bottom gear requires a compatible Hoppe top extension. Contact us with your door height and configuration to ensure you get the correct matching extension.

How do I measure the handle height on my door?

Measure from the bottom of the faceplate (or bottom of the door) to the center of the handle bore hole. This gear is configured for a 36-inch handle height.

What does 60/92 mean?

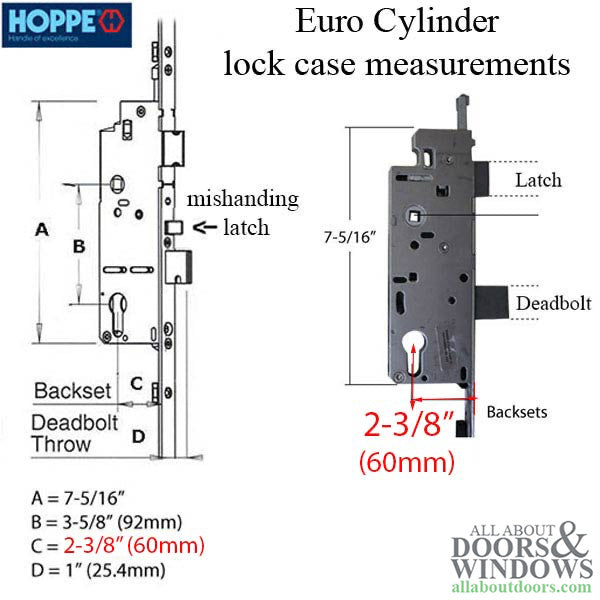

The 60/92 refers to the backset (60mm) and PZ measurement (92mm). The backset is the distance from the door edge to the handle center, and PZ is the distance from the handle center to the cylinder center.
